The Swordfish Scalable Storage Management API ("Swordfish") defines a RESTful interface and a standardized data model to provide a scalable, customer-centric interface for managing storage and related data services. It extends the Redfish Scalable Platforms Management API Specification (DSP0266) from the DMTF.
Swordfish extends the Redfish Scalable Platforms Management API Specification to define a comprehensive, RESTful API for storage management that addresses block storage, file systems, object storage, and storage network infrastructure. It is centered around common operational and business concerns of storage management, including:
Swordfish's storage model is built around well-defined classes of service, which provide a means to map high-level business goals and objectives to specific, storage-based actions and requirements, in a clear and consistent way that can be applied uniformly across a broad spectrum of storage configurations and storage types (e.g., block storage, file systems, object stores). Common storage management functionality covered by class of service includes snapshots, replication, mapping and masking, and provisioning.
The Redfish specification provides the protocols and a core set of data models and behaviors for the management of systems. It defines the elements and behaviors that are mandatory for all Redfish implementations. Additionally it defines additional elements and behaviors that can be chosen by system vendors or manufacturers. The specifications also defines points at which OEM (system vendor) extensions can be provided by a given implementation. The specifications specifies normative requirements for Redfish Services and associated materials, such as Redfish Schema files. The Redfish specifications does not set requirements for Redfish clients, but will indicate what a Redfish client should do in order to access and utilize a Redfish Service successfully and effectively.
The Swordfish specification defines additional data models and behaviors for the management of storage systems and storage infrastructure. A Swordfish implementation shall conform to all requirements specified in the Redfish specifications.
Swordfish is suitable for a wide range of storage, from small-scale object drives, integrated RAID cards or RBODs providing storage services, to external disk arrays or file servers, to infrastructure providing storage services for converged, hyperscale and large scale cloud environments.
This document defines the Swordfish Scalable Storage Management API.
The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.
Tag | Title (Version) | Author | URL |
---|---|---|---|
ISO-8601 | Data elements and interchange formats -- Information interchange -- Representation of dates and times -- Part 1: Basic rules | ISO/IEC | http://www.iso.org/iso/home/store/catalogue_ics/catalogue_detail_ics.htm?csnumber=70907 |
ISO-Direct | ISO/IEC Directives, Part 2 Principles and rules for the structure and drafting of ISO and IEC documents (Seventh Edition, 2016) |
ISO/IEC | http://isotc.iso.org/livelink/livelink/ fetch/2000/2122/4230450/4230456/ ISO_IEC_Directives Part_2 Principles_and_rules_for_the structure_and_drafting_of_ISO_and_IEC documents_-2016%287th_edition%29_-_PDF.pdf?nodeid=17667902&vernum=-2 |
Redfish | Redfish Scalable Platforms Management API Specification (v1.4.0) | DMTF | http://www.dmtf.org/sites/default/files/standards/documents/DSP0266_1.4.0.pdf |
OData | Open Data Protocol (v. 4.0) | OASIS | https://www.oasis-open.org/standards#odatav4.0 |
RFC3986 | Uniform Resource Identifier (URI): Generic Syntax (2005) | The Internet Society | http://www.rfc-base.org/txt/rfc-3986.txt |
CSDL | Common Schema Definition Language (4.0) | OASIS | http://docs.oasis-open.org/odata/odata/v4.0/odata-v4.0-part3-csdl.html |
ITIL | ITIL Glossary (2011) | ITIL | https://www.axelos.com/Corporate/media/ Files/Glossaries/ ITIL_2011_Glossary_GB-v1-0.pdf |
Units | The Unified Code for Units of Measure (v2.0.1) | Regenstrief Institute, Inc. and the UCUM Organization | http://unitsofmeasure.org/trac |
TLS | Transport Layer Security (TLS) Protocol Version 1.2 | IETF | https://www.ietf.org/rfc/rfc5246.txt |
SPC-4 | SCSI Primary Commands - 4 (SPC-4) INCITS 513-2015 | T10 | http://www.techstreet.com/cgi-bin/joint.cgi/incits |
Documents referenced in this section are under active development, and subject to revision or replacement at any time. In the event that the provided URL is no longer valid, refer to the related parent page to locate a replacement.
Tag | Title (Version) | Author | URL | Parent Page |
---|---|---|---|---|
RedfishResource | Redfish Resource and Schema Guide | DMTF | http://www.dmtf.org/sites/default/files/standards/documents/DSP2046_2017.0a.pdf | http://www.dmtf.org/redfish |
None defined in this document.
In this document, some terms have a specific meaning beyond the normal English meaning. Those terms are defined in this clause. New terms, frequently used Redfish terms.
The following terms are used in this document.
Term | Definition |
---|---|
Entity | An element in a model that represents resources. The element may be either a type declaration or a model instance representing an instance of the resource. |
Entity Instance | A model element that represents the information and behaviors of a particular instance of an entity. |
Entity Type | A model element that specifies the structure, information and behaviors of an entity. |
Instance | See Entity Instance. |
OData service | A REST-based service that allows resources, identified using Uniform Resource Locators (URLs) and defined in a model, to be published and edited by Web clients using simple HTTP messages. |
Metamodel | A model that defines the semantics for the construction of a model. |
Model | A set of entities and the relationships between them that define the semantics, behavior and state of that set. |
Resource | A named item of interest. The item may be be a collection of other items. A resource may be assigned a URI that allows it to receive and process messages. A particular instance of a resource is represented in the model by an entity instance. The type of a resource is represented in the model by an entity type. |
Schema | A formal language representation of a model that conforms to a metamodel. |
Service Document | The term Service Document is used to refer to a particular resource that is directly accessed via the OData service entry point. This resource serves as a starting point for locating and accessing the other resources and associated metadata that together make up an instance of a Swordfish Service. See also OData Service Document |
Swordfish service | A service that is a Redfish service and that implements Swordfish extensions to the Redfish model that conform to the requirements of this document. |
None in this document.
Many terms in this document were originally defined in the Redfish Specification. Some of the more common terms and definitions are reproduced here, as an aid to the reader.
Term | Definition (as of 24 January 2017) |
---|---|
OData | The Open Data Protocol, as defined in OData-Protocol. |
OData Service Document | The name for a resource that provides information about the Service Root. The Service Document provides a standard format for enumerating the resources exposed by the service that enables generic hypermedia-driven OData clients to navigate to the resources of the Redfish Service. See also Service Document |
Redfish Schema | The CSDL defintion of Redfish resources. |
Redfish service | An OData service that conforms to requirements of the Redfish specification. |
Redfish Service Entry Point | Also referred to as "Service Entry Point". An URI through which a particular instance of a Redfish Service is accessed. A Redfish Service may have more than one Service Entry Point |
Request | A message from a Client to a Server. It consists of a request line (which includes the Operation), request headers, an empty line and an optional message body. |
Service Root | The term Service Root is used to refer to a particular resource that is directly accessed via the Redfish service entry point. This resource serves as a starting point for locating and accessing the other resources and associated metadata that together make up an instance of a Redfish Service. |
This document conforms to ISO/IEC Directives, Part 2 for keyword usage. The most common terms and their intended meanings are summarized below.
Term(s) | Meaning |
---|---|
shall / shall not |
Used to identify objectively verifiable criteria to be fulfilled and from which no deviation is permitted if compliance with the document is to be claimed |
should / should not |
Used to identify a suggested possible choice or course of action deemed to be particularly suitable without necessarily mentioning or excluding others |
may / need not |
Used to convey consent or liberty (or opportunity) to do something |
can / cannot |
Expected or conceivable material, physical or causal outcome |
must | Identifies a constraint or obligation on the user of the document, typically due to one or more legal requirements or laws of nature, that is not stated as a provision of the standard NB: "must" is not an alternative for "shall", and should only be used for constraints that arise from outside this standard |

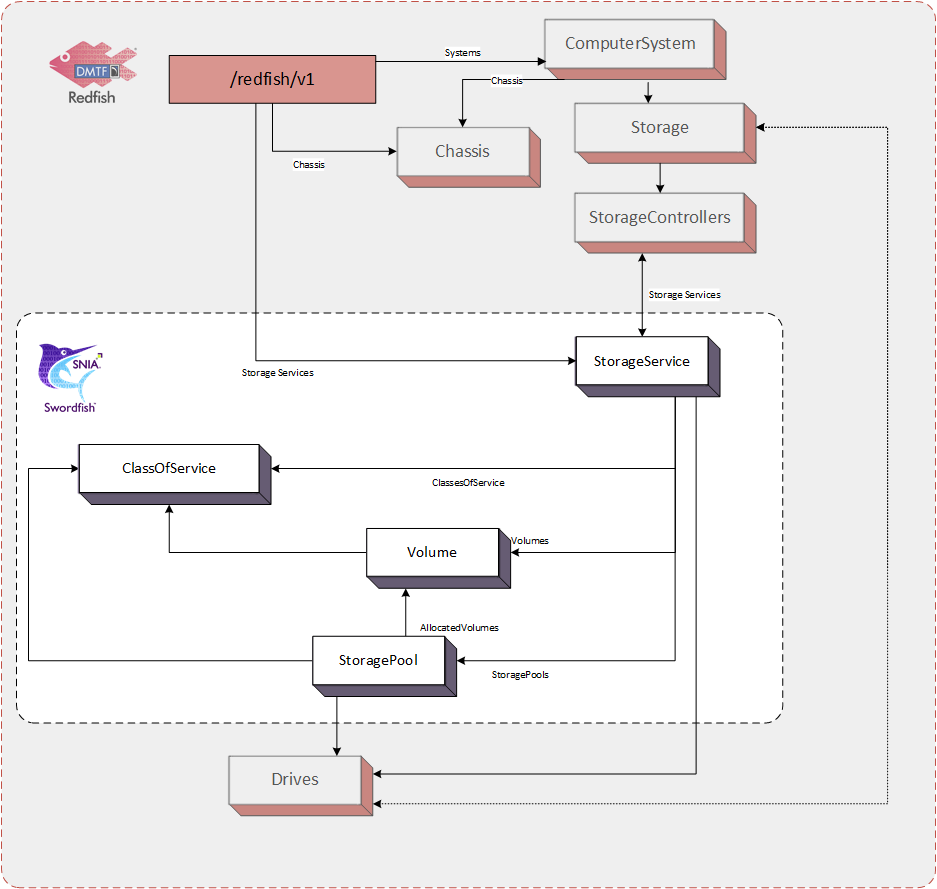

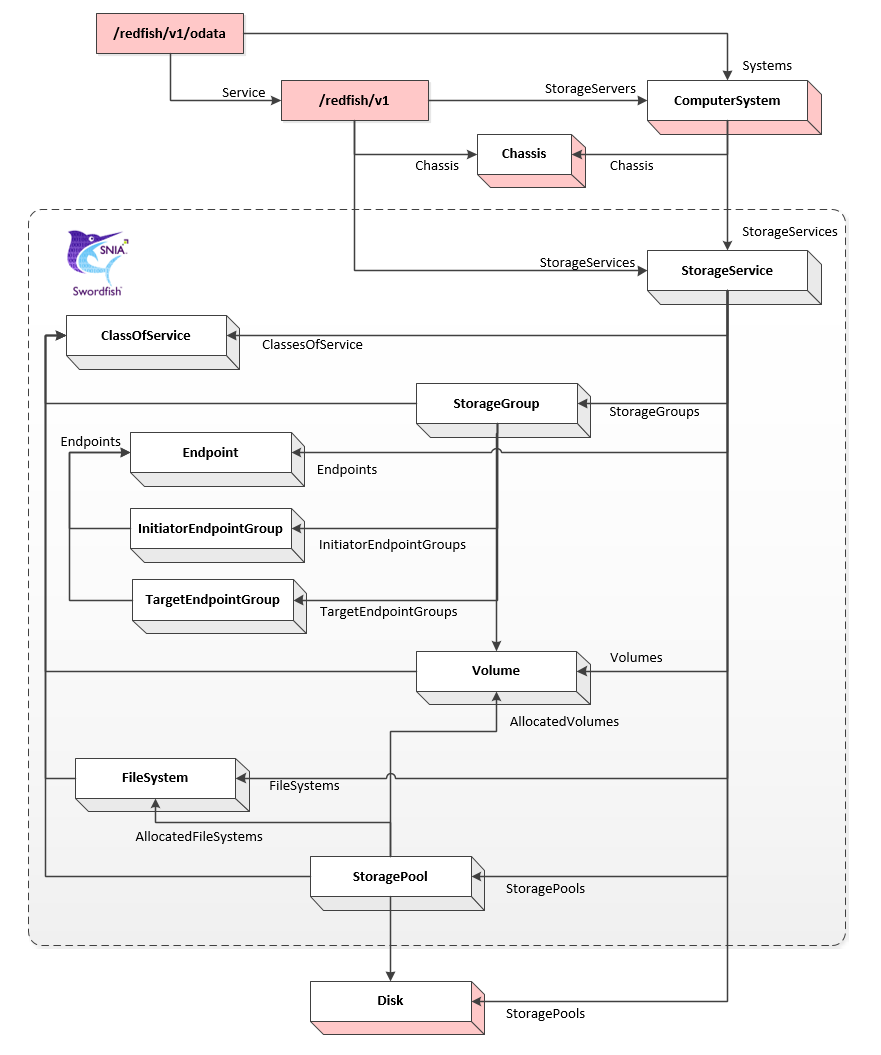

The Swordfish Scalable Storage Management API ("Swordfish") defines a RESTful interface and a standardized data model to provide a scalable, customer-centric interface for managing storage and related data services. It extends the Redfish Scalable Platforms Management API Specification (DSP0266) from the DMTF.
The Swordfish service interface extends the Redfish service interface. As such, a Swordfish service is a Redfish service and includes all required elements of the Redfish model.
Storage systems managed by the Swordfish storage service are located in the ServiceRoot
(and ServiceContainer
) via the StorageSystems
resource collection. They are modeled using Redfish ComputerSystems
. The physical infrastructure is modeled using Redfish Chassis
.
Each Swordfish StorageService
is located in the ServiceRoot
(and ServiceContainer
) via the StorageServices
resource collection. All Swordfish defined instances are located through StorageService
intances. A Swordfish management client may focus entirely on entities defined by the Swordfish schema.
The combined Redfish and Swordfish models defines information requirements and constraints on the values that are used as input or output of the operations supported by the Swordfish interface. The Swordfish interface relies on the operations specified by the OData REST protocol (#normative-references). Additional operations (known as Actions) are also defined by the model. The information content is defined by a schema specified using the Common Schema Definition Language (CSDL) (#normative-references) defined by the OData organization within OASIS (https://www.oasis-open.org/).

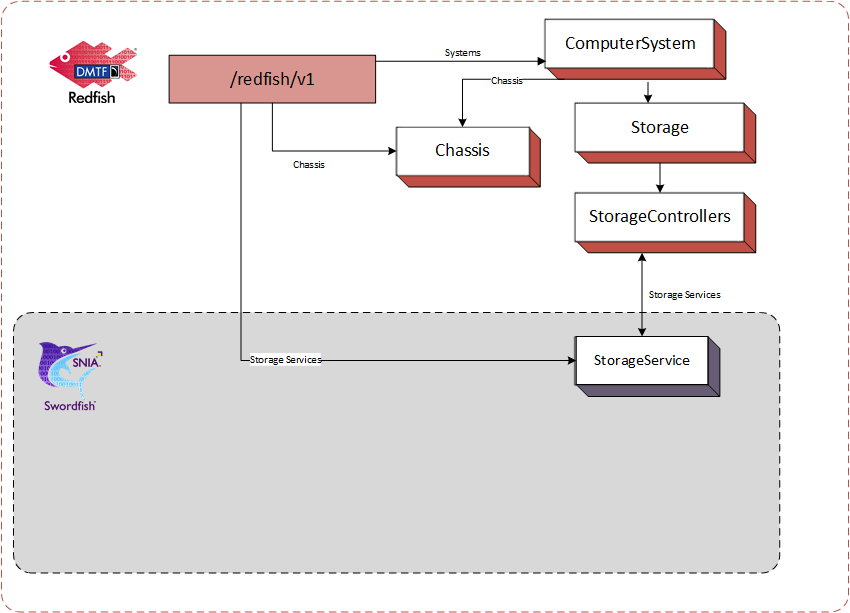

Each Swordfish service is accessed via well known URLs on the system supporting the Swordfish Service. Since Swordfish is an extension of Redfish, these URLs are the same as for accessing the Redfish defined aspects of the service.
Swordfish has been designed to support a broad range of configurations, requirements, size and complexity, as well as logical and physical architectures. As a result, there are two primary methods of modelling the storage system for a Swordfish implementation. Either model choice results in the same storage service, regardless of the storage system model.
The storage systems managed by the Swordfish storage service are modeled using the Redfish Storage
resource and StorageController
resource collections. The Storage
resource is located in the Redfish hierarchy contained by ComputerSystems
, typically running as ApplicationServers. The physical infrastructure is modeled using Redfish Chassis
.
This configuration works well when the storage service is hosted by a storage resource within a computer system. An example of a Storage Service for an integrated service configuration is shown below.

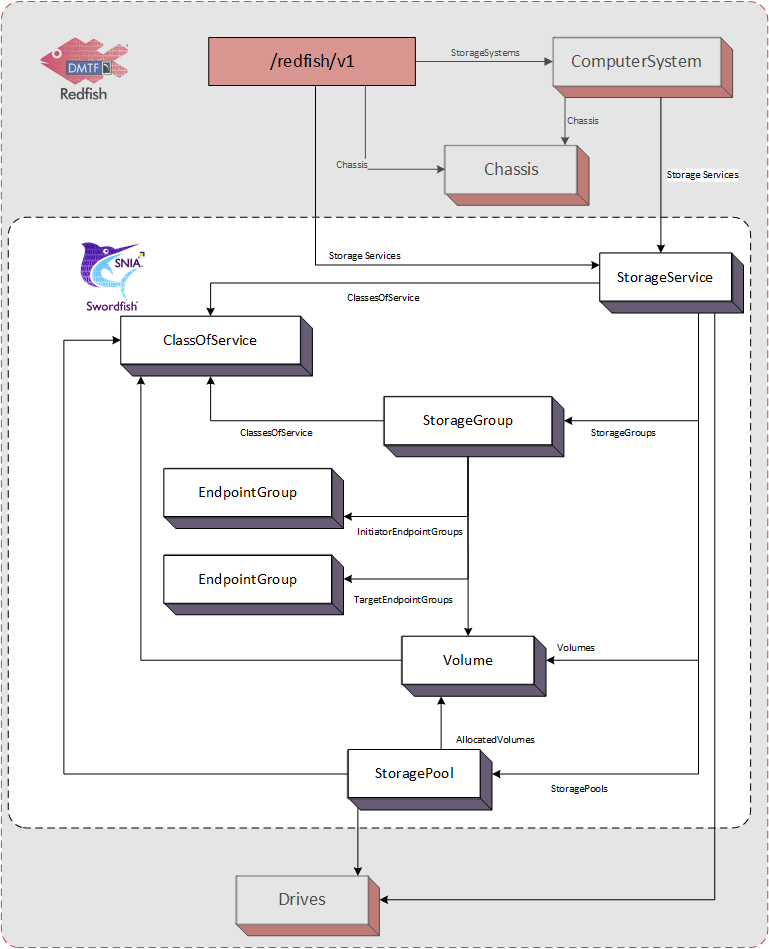

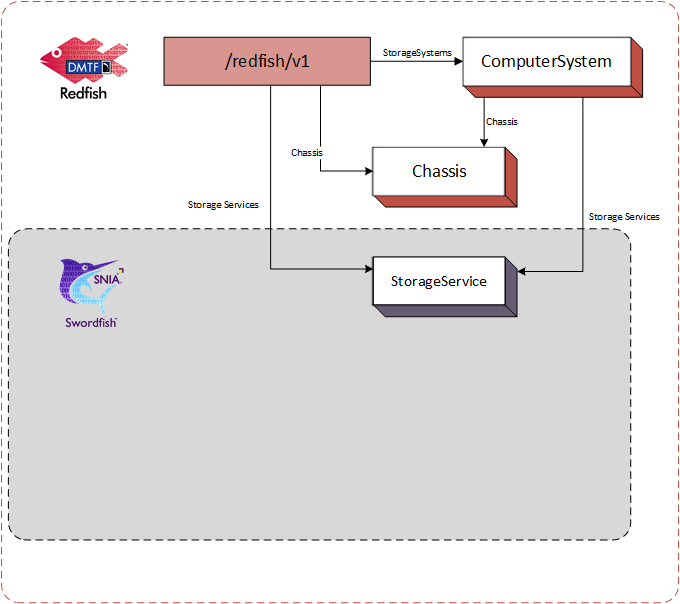

The storage systems managed by the Swordfish storage service are located in the ServiceRoot
(and ServiceContainer
) via the StorageSystems
resource collection. They are modeled using Redfish ComputerSystems
. The physical infrastructure is modeled using Redfish Chassis
.
This configuration works well when the storage system hosts the storage service directly. An example of a Storage Service for a hosted service configuration is shown below.
A GET of /redfish/v1
will return the ServiceRoot
entity. A GET of /redfish/v1/odata
will return the ServiceContainer
instances that represents the OData service document. Each of these instances provides links to the remainder of the system.
The following are the elements utilized for Swordfish management.
Systems
: A reference to a Systems resource collection;Chassis
: A reference to a Chasis resource collection;StorageSystems
: A reference to a StorageSystems resource collection;StorageServices
: A reference to a StorageServices resource collection.A resource collection that references a set of ComputerSystem
resources that each represents a general purpose application server. Each ComputerSystem
resource will have an entry with the value of "ApplicationServer" in its HostingRoles
property. A particular ComputerSystem
resource can be in both the StorageSystems collection and the Systems collection.
A resource collection that references a set of Chassis
resources. Each Chassis resource represents physical containers, (i.e. sheet-metal confined spaces and logical zones like racks, enclosures, chassis and all other containers). Subsystems (like sensors), which operate outside of a system's data plane (meaning the resources are not accessible to software running on the system) are linked either directly or indirectly through this resource.
A reference to a ComputerSystemCollection
with members of type ComputerSystem
that support storage services. These ComputerSystem
resources represent systems that support Swordfish storage management services. They will have an entry with the value of "StorageServer" in their HostingRoles
property.A resource collection that references a set of ComputerSystem
resources that each represents a storage server. Each ComputerSystem
resource will have an entry with the value of "StorageServer" in its HostingRoles
property. A particular ComputerSystem
resource can be a member of both the StorageSystems
resource collection and the Systems
resource collection.
A reference to a StorageServiceCollection
with members that are of type StorageService
. A resource collection that references a set of StorageService
resources. Each StorageService
resource represents the resources and behaviors supported by that storage service.
The storage service is hosted on a storage system and exposes logical storage, associated resources and related functionality. Storage service resources can be found in the service root or service container via the StorageServices
resource collection.
The following are the principal properties of StorageService
that point to resources managed or defined by the storage service:
ClassesOfService
: A reference to a resource collection that specifies the supported ClassOfService
resources.ClientEndpointGroups
: A reference to a resource collection that collects ClientEndpointGroup
resources.Drives
: A reference to a resource collection that collects Drive
resources used for storage.Enclosures
: A reference to a resource collection that collects Chassis resources that contain storage related resources.Endponts
: A reference to a resource collection that collectsEndpoint
resources used to access storage.FileSystems
: A reference to a resource collection that collects FileSystem
resources.ServerEndpointGroups
: A reference to a resource collection that collects ServerEndpointGroup
resources.StorageGroups
: A reference to a resource collection that collects StorageGroup
resources.StoragePools
: A reference to a resource collection that collects StorageGroup
resources.Volumes
: A reference to a resource collection that collects Volume
resources.HostingSystem
: A reference to the ComputerSystem
instance that hosts this StorageService
.The following properties each include a set of attributes that each describe a range of capabilities that the storage service can support for a particular kind of service.
DataProtectionLoSCapabilities
: Replicas that protects data from loss.DataSecurityLoSCapabilities
: Data security service level requirements. The data security characteristics enable the storage system to be used in an environment where compliance with an externally-specified security standard or standards is required. Examples of such standards include FIPS-140, HIPAA and PCI.DataStorageLoSCapabilities
: Provisioning and access characteristics for storage of the data.IOConnectivityLoSCapabilities
: IO connectivity requirements for access to the data.IOPerformanceLoSCapabilities
: IO performance requirements for access to the data.In each of the above, not all combinations of attribute values are likely to be supported by the storage service.
Known supported combinations of attribute values are used to construct entries in the LinesOfService
array property. Not all attributes of a line of service entry need be specified (i.e. some may be Null). If an attribute has no value, the storage service may choose any supported values when provisioning for that entry. Otherwise, the line of service attribute values specifies the kind or level of service to be provided.
A class of service represents a choice of utility or warranty offered to customers by a service. (ITIL uses the term service option
. See the Normative References.)
Each ClassOfService
resource is a uniquely named description of the characteristics of one choice of utility or warranty for a service. Each ClassOfService
is a description of the kind and quality of service to provide and is not intended to describe how the service provides that service.
Each ClassOfService
is defined by an aggregation of lines of service. Supported lines of service are listed in the corresponding capabilities attributes of the storage service, (see above).
Currently defined lines of service are:
Some advertised ClassOfService
resources are created by the service implementation. These are generally not changeable and are intrinsic to the implementation.
A service may support creation or modification of ClassOfService
resources. All must be consistent with the capabilities of the service.
Endpoints represent one end of a protocol specific connection that supports sending or receiving messages according to a particular protocol.
The Endpoint
Group is resource collection that references a set of Endpoint
resources.
The EndpointGroup
is a resource that represents a set of Endpoint
resources that have the same management characteristics and which will all have the same access state.
The EndpointGroupCollection
is resource collection that references a set of EndpointGroup
resources.
StorageGroups represent a set of volumes that are managed as a group with the same consistency requirements. The volumes of a storage group are collectively exposed or hidden to a set of clients.
The set of volumes is specified by the Volumes
attribute, which is a resource collection that references volumes.
The set of client endpoints to which the volumes can be exposed is specified by the ClientEndpointGroups
attribute. The ClientEndpointGroup
resource specifies a collection of EndpointGroup
resources.
The set of server endpoints to which the volumes can be exposed is specified by the ServerEndpointGroups
attribute. The ServerEndpointGroup
resource specifies a collection of EndpointGroup
resources.
The StoragePool
resource represents unassigned storage capacity that can be used to produce storage volumes or other storage pools, which conform to one or more classes of service.
The following are the principal properties of StoragePool
that are used to identify resources provisioned or supported by the storage pool:
ClassesOfService
: A reference to a resource collection that specifies the set ClassOfService
resources that can be specified when provisioning resources from the storage pool.AllocatedVolumes
: A reference to a resource collection that collects Volume
resources that have been provisioned from the storage pool.AllocatedPools
: A reference to a resource collection that collects StoragePool
resources that have been provisioned from the storage pool.DefaultClassOfService
: A reference to the default ClassOfService
resources used for provisioning from the storage pool.Volume
resource represents a block-addressable container of storage, sometimes referred to as a "Logical Unit", "LU", "LUN", or "StorageVolume" in the storage industry. Volumes optionally adhere to a ClassOfService
, which defines added functionality. Examples include:
This FileSystem
resource represents a file system. File systems represent file-addressable capacity that are conformant to a ClassOfService
. Each FileSystem
may contain a collection of FileShares
that can be presented to hosts.
Redfish has added two properties to the ServiceRoot that provide access to Swordfish resources.
The first is StorageSystems
. This property references a collection of ComputerSystem
resources that each support Swordfish functionality. Each such ComputerSystem
shall have:
HostingRoles
property with the value of StorageServer
StorageServices.Members
property.The second is StorageServices
. This property references a collection of StorageService
resources. It provides the client an efficient means to search across all StorageService
resources, regardless of which ComputerSystem
is supporting the service.
The Swordfish and Redfish models are extended by subclassing the OEM
ComplexTypes
that are defined in the Swordfish and Redfish schemas.
In addition to extending the Redfish model as described above. An OEM may extend the Redfish ServiceContainer
by defining a new EntityContainer
that extends the ServiceContainer found in the Redfish ServiceRoot_v1.xml file, (see OData EntityContainer).
Note: This has the same semantics as subclassing in a typical object oriented environment.
An OEM extended implementation of the Swordfish service would access OEM extensions to EntityContainer
via the service entry-point /redfish/v1/odata
.
The Swordfish model does not currently expose any explicitly defined entity sets. OData specifies that an entity set is defined for each NavigationProperty that is defined as a collection and that has the ContainsTarget attribute set to true. In all other cases, Swordfish assumes that an entity set is defined globally within the implementation for each entity type. This is effectively the same as if the entity sets were explicitly defined in the ServiceRoot entity container.
An instance (entity) of an EntityType is uniquely identified within its entity set by its key. The URI for the reference may specify the key using one of two general strategies
OData recommends specifying the key value within parenthesis following the path segment that identifies the referencing entity set. (See clause "Canonical URL" in in OData)
Redfish common practice is to use an alternative form that adds a path segment having the value of the key following the path segment that identifies the referencing collection. (See clause "Alternate Key-as-Segment Syntax" in OData.)
A Swordfish implementation shall support both strategies.
Redfish specifies that subclasses of ResourceCollection shall include a Members collection property (See clause "Collection resource response" in DSP0266)
Redfish allows a POST request to a ResourceCollection to be equivalent to the same POST request to the Members property of that ResourceCollection.
For a particular ResourceCollection, if a Swordfish implementation supports either form, it shall support both.
It is common practice in Redfish to also eliminate the Members property from any request URI that navigates through a type hierarchy that includes a Member within a ResourceCollection. Care should be taken when defining and using a ResourceCollection subclass to not introduce ambiguities when an explicit reference to a Members property is dropped from a request URI.
The primary online source for the Swordfish schema shall be co-located on the DMTF schema site with the Redfish schema: http://redfish.dmtf.org/schemas/swordfish Developers may also download the schema as part of the Swordfish bundle from snia.org (refer to snia.org/swordfish for pointers to the bundle locations).
Implementations should refer either to the versions available on the dmtf.org site or to locally provided instances of the schema.
Swordfish directly reference the following Redfish schemas. - Chassis - ChassisCollection - ComputerSystem - ComputerSystemCollection - Drive - Endpoint - EthernetInterface - EventService - Location - RedfishExtensions - Redundancy - ResourceTask - Schedule - ServiceContainer - ServiceRoot
Other Redfish schema may be added by inference or directly to implementations. Examples are available in the Swordfish mockups.
A complete Swordfish implementation includes a Redfish-defined Service Root, is instantiated upon a StorageSystem/ComputerSystem, and runs on a Redfish Chassis. At the same time, a storage client may focus entirely on the storage schema instantiations and never interact with the Redfish portion of an implementation.
Swordfish is defined in terms of schema extended from Redfish which are defined below. This section provides additional definition and context for these schema.
The following table lists common schema attributes used in the definition of Swordfish, for details see CSDL
Name | Applies to | Description |
---|---|---|
Abstract | ComplexType, EntityType | If true, the entity may not be instantiated |
BaseType | ComplexType, EntityType | Names an inherited element. |
DefaultValue | Property | The value of a property if not explicitly set |
Name | All | The name of the schema element |
Nullable | NavigationProperty, Property | If false, the qualified property shall have a value. The default value is true. A navigation property whose Type attribute specifies a collection shall not specify Nullable=false, as the collection always exists, but may just be empty. Note: Null is not itself a value, but is an indication of no value. |
Type | Property | The type of the element |
The interaction of Nullable
and DefaultValue
needs to be clearly understood by both implementers and client developers. The possible combinations of are summarized in Table 6. The table contains:
Table 6: Default and Nullable Interaction
Nullable | DefaultValue | Client | Value |
---|---|---|---|
T | T | T | C |
T | T | F | D |
T | F | T | C |
T | F | F | I or Null |
F | T | T | C |
F | T | F | D |
F | F | T | C |
F | F | F | I or Error |
The following table lists common annotation used in the definition of Swordfish, for details see OData Capabilities Vocabulary, OData Core Vocabulary, OData Measures Vocabulary, and Redfish Extensions,
Name | Applies to | Description |
---|---|---|
AllowableValues | Parameter | The set of allowable values for a parameter |
AutoExpand | NavigationProperty | If true, return expand the target element |
AutoExpandReferences | NavigationProperty | If true, return references to the target element |
ConformanceLevel | EntityContainer | Specifies OData conformance level |
Deprecated | All | Specifies that the element may be removed in future major revisions, but shall continue to be supported as specified in the current revision. |
Description | All | A brief description of a model element |
LongDescription | All | A normative description of a model element |
Maximum | Parameter, Property | Maximum value that an integer property or parameter may have |
Minimum | Parameter, Property | Minimum value that an integer property or parameter may have |
Pattern | Parameter, Property | Specifies a pattern that the value shall match |
Permissions | NavigationProperty, Property | Access permission for the property. |
Required | NavigationProperty, Property | If true, property is required to be supported by the service. The default is optional. |
RequiredIOnCreate | NavigationProperty, Property | If true, property is required on creation |
Unit | Property | The unit of measure for the value. |
The primary online source for the Swordfish schema shall be co-located on the DMTF schema site with the Redfish schema: http://redfish.dmtf.org/schemas/swordfish Developers may also download the schema as part of the Swordfish bundle from snia.org (refer to snia.org/swordfish for pointers to the bundle locations).
Implementations should refer either to the versions available on the dmtf.org site or to locally provided instances of the schema.
Swordfish directly references the following Redfish schemas:
Redfish Schema |
---|
Chassis |
ChassisCollection |
ComputerSystem |
ComputerSystemCollection |
Drive |
Endpoint |
EthernetInterface |
EventService |
Location |
RedfishExtensions |
Redundancy |
ResourceTask |
Schedule |
ServiceContainer |
ServiceRoot |
Other Redfish schema may be added by inference or directly to implementations. Examples are available in the Swordfish mockups.
This document generally adheres to the security requirements defined in the Redfish Specification. It extends the Redfish security model in one important way:
The Swordfish service interface extends the Redfish service interface. As such, a Swordfish service is a Redfish service and all required elements of the Redfish model shall be present in a Swordfish model.
Swordfish functionality shall not conflict with any previously defined Redfish functionality but it may add to or extend it, and it may add additional constraints on Redfish functionality.
Additionally, any functionality desired in a Swordfish implementation that is specified in Redfish shall follow the requirements as specified in the Redfish specification.
Each Swordfish implementation supports the following well-known URLs, as defined in Redfish. Specifically:
/Redfish
, which contains one or more version properties for the integrated Swordfish and Redfish implementation, starting with v1./Redfish/v1
, which addresses a ServiceRoot
instance, which defines the Redfish default principal starting information for version 1 implementation of an integrated Redfish and Swordfish service. A GET operation to it shall retrieve the value of an instance of a ServiceRoot
EntityType
as defined in the ServiceRoot_v1.xml file./Redfish/v1/odata
, which addresses a ServiceContainer
instance, which defines OData conformant principal starting information for the same version 1 implementation of an integrated Redfish and Swordfish service. A GET operation shall retrieve the value of an instance of a ServiceContainer
EntityContainer
as defined in the ServiceRoot_v1.xml file.Note: Since the
ServiceContainer
is required to return an@odata.context
value of/redfish/v1
, all other elements accessed via it will be the same elements found via theServiceRoot
.
Note: A Swordfish service is a Redfish service with extensions to support storage management. No additional service entry-points are necessary.
Both the ServiceRoot
and ServiceContainer
contain a resource collection named Systems
that lists ComputerSystem
instances. A ComputerSystem
instance that supports Swordfish defined services will have a value of "StorageServer" in an entry of its HostingRoles
property.
The ServiceContainer
additionally has a Service attribute that references the ServiceRoot
resource.
Regardless of starting point, the property values of the ServiceRoot
instance enable navigation to all other resources exposed by the Swordfish service.
Each ClassOfService
shall include at least one line of service. The providing server shall assure that the line of service values of a ClassOfService
collectively represent a supported choice of service.
For Hosted Service Configurations, this property of the ServiceRoot
references a collection of ComputerSystem
resources that each support Swordfish functionality. Each ComputerSystem
included in the StorageSystems
entry in the ServiceRoot
shall have:
HostingRoles
property with the value of StorageServer
StorageServices.Members
property.For Integrated Service Configurations, the StorageSystems concept is realized through the StorageController
resource. Each StorageController
instantiated as a Swordfish StorageSystem shall have:
StorageController.Links
property StorageServices
collection identifying related StorageServices
The Swordfish model does not currently expose any explicitly defined entity sets. OData specifies that an entity set is defined for each NavigationProperty that is defined as a collection and that has the ContainsTarget attribute set to true. In all other cases, Swordfish assumes that an entity set is defined globally within the implementation for each entity type. This is effectively the same as if the entity sets were explicitly defined in the ServiceRoot entity container.
An instance (entity) of an EntityType is uniquely identified within its entity set by its key. The URI for the reference may specify the key using one of two general strategies
OData recommends specifying the key value within parenthesis following the path segment that identifies the referencing entity set. (See clause "Canonical URL" in in OData)
Redfish common practice is to use an alternative form that adds a path segment having the value of the key following the path segment that identifies the referencing collection. (See clause "Alternate Key-as-Segment Syntax" in OData.)
A Swordfish implementation shall support both strategies.
Redfish specifies that subclasses of ResourceCollection shall include a Members collection property (See clause "Collection resource response" in DSP0266)
Redfish allows a POST request to a ResourceCollection to be equivalent to the same POST request to the Members property of that ResourceCollection. For a particular ResourceCollection, if a Swordfish implementation supports either form, it shall support both.
It is common practice in Redfish to also eliminate the Members property from any request URI that navigates through a type hierarchy that includes a Member within a ResourceCollection. Care should be taken when defining and using a ResourceCollection subclass to not introduce ambiguities when an explicit reference to a Members property is dropped from a request URI.
The following sections define the schema and type definitions that make up a Swordfish implementation. Each data type or entity within the schema includes a description that defines its implementation requirements and their interaction
This section describes the properties (data fields) that share a common definition across many or all Redfish schema
The following properties are included in every Redfish schema, and therefore may be encountered in any Response payload. They are documented here to avoid repetition in the Resource Guide tables for each schema.
@odata.context | string | read-only | The @odata.context property is a URL to a metadata document with a fragment describing the data (typically rooted at the top-level singleton or collection). Technically the metadata document only has to define, or reference, any of the types that it directly uses, and different payloads could reference different metadata documents. However, since the @odata.context provides a root URL for resolving relative references (such as @odata.id's), we return the canonical metadata document. |
@odata.id | string | read-only | The @odata.id property is a string that indicates the unique identifier of a resource. |
@odata.type | string | read-only | The @odata.type property is a URL fragment that indicates the type of the resource. |
Description | string | read-write | The Description property is used to convey a human-readable description of the resource. |
Id | string | read-write | The Id property of a resource uniquely identifies the resource within the Resource Collection that contains it. The value of Id is unique within a Resource Collection. |
Name | string | read-write | The Name property is used to convey a human-readable moniker for a resource. The type of the Name property is a string. The value of Name is NOT necessarily unique across resource instances within a Resource Collection. |
Oem { } | object | read-write | This is the manufacturer/provider specific extension moniker used to divide the Oem object into sections. See the Resource schema for details on this property. |
The Links property represents the links associated with the resource, as defined by that resource's schema definition. All associated reference properties defined for a resource are nested under the Links property. All directly referenced (subordinate) properties defined for a resource can be found from the root of the resource.
The Actions property contains the actions supported by a resource.
The OEM property is used for OEM extensions.
The RelatedItem property is represented as a set of links. The links point to a resource, or part of a resource, as defined by that resource's schema definition.
This representation is not intended to be a strong linking methodology like other references. Instead it is used to show a relationship between elements or sub-elements in disparate parts of the service. For example, Fans may be in one area of the system and Processors in another area of the system. It could be that the relationship between the two is not obvious. The RelatedItem property can be used to show that one is related to the other. In this example, it might indicate that a specific fan is cooling a specific processor.
The Status
property is common to many Redfish schema.
Health | string (enum) | read-only | This represents the health state of this resource in the absence of its dependent resources. See Health in Property Details, below, for the possible values of this property. |
HealthRollup | string (enum) | read-only | This represents the overall health state from the view of this resource. See HealthRollup in Property Details, below, for the possible values of this property. |
Oem { } | object | read-write | Oem extension object. |
State | string (enum) | read-only | This indicates the known state of the resource, such as if it is enabled. See State in Property Details, below, for the possible values of this property. |
Health:
This represents the health state of this resource in the absence of its dependent resources.
string | Description |
---|---|
Critical | A critical condition exists that requires immediate attention. |
OK | Normal. |
Warning | A condition exists that requires attention. |
HealthRollup:
This represents the overall health state from the view of this resource.
string | Description |
---|---|
Critical | A critical condition exists that requires immediate attention. |
OK | Normal. |
Warning | A condition exists that requires attention. |
State:
This indicates the known state of the resource, such as if it is enabled.
string | Description |
---|---|
Absent | This function or resource is not present or not detected. |
Disabled | This function or resource has been disabled. |
Enabled | This function or resource has been enabled. |
InTest | This function or resource is undergoing testing. |
Quiesced | The element is enabled but only processes a restricted set of commands. |
StandbyOffline | This function or resource is enabled, but awaiting an external action to activate it. |
StandbySpare | This function or resource is part of a redundancy set and is awaiting a failover or other external action to activate it. |
Starting | This function or resource is starting. |
UnavailableOffline | This function or resource is present but cannot be used. |
Updating | The element is updating and may be unavailable or degraded. |
AltitudeMeters | number (m) | read-only (null) | The altitude of the resource in meters. |
Info | string | read-only (null) | This indicates the location of the resource. |
InfoFormat | string | read-only (null) | This represents the format of the Info property. |
Latitude | number (deg) | read-only (null) | The latitude resource. |
Longitude | number (deg) | read-only (null) | The longitude resource in degrees. |
Oem { } | object | read-write | Oem extension object. See the Resource schema for details on this property. |
PartLocation { | object | read-write | Postal address of the addressed resource. |
LocationOrdinalValue | number | read-only (null) | The number that represents the location of the part. If LocationType is slot and this unit is in slot 2 then the LocationOrdinalValue will be 2. |
LocationType | string (enum) | read-only | The type of location of the part, such as slot, bay, socket and slot. See LocationType in Property Details, below, for the possible values of this property. |
Orientation | string (enum) | read-only | The orientation for the ordering of the slot enumeration used by the LocationOrdinalValue property. See Orientation in Property Details, below, for the possible values of this property. |
Reference | string (enum) | read-only | The reference point for the part location. This is used to give guidance as to the general location of the part. See Reference in Property Details, below, for the possible values of this property. |
ServiceLabel } |
string | read-only (null) | This is the label of the part location, such as a silk screened name or a printed label. |
Placement { | object | read-write | A place within the addressed location. |
Rack | string | read-write (null) | Name of a rack location within a row. |
RackOffset | number | read-write (null) | Vertical location of the item in terms of RackOffsetUnits. |
RackOffsetUnits | string (enum) | read-write | The type of Rack Units in use. See RackOffsetUnits in Property Details, below, for the possible values of this property. |
Row } |
string | read-write (null) | Name of row. |
PostalAddress { | object | read-write | Postal address of the addressed resource. |
AdditionalCode | string | read-write (null) | Additional code. |
Building | string | read-write (null) | Name of the building. |
City | string | read-write (null) | City, township, or shi (JP). |
Community | string | read-write (null) | Postal community name. |
Country | string | read-write (null) | Country. |
District | string | read-write (null) | A county, parish, gun (JP), or district (IN). |
Division | string | read-write (null) | City division, borough, dity district, ward, chou (JP). |
Floor | string | read-write (null) | Floor. |
GPSCoords | string | read-write (null) | The GPS coordinates of the part. |
HouseNumber | number | read-write (null) | Numeric portion of house number. |
HouseNumberSuffix | string | read-write (null) | House number suffix. |
Landmark | string | read-write (null) | Landmark. |
LeadingStreetDirection | string | read-write (null) | A leading street direction. |
Location | string | read-write (null) | Room designation or other additional info. |
Name | string | read-write (null) | Name. |
Neighborhood | string | read-write (null) | Neighborhood or block. |
POBox | string | read-write (null) | Post office box (P.O. box). |
PlaceType | string | read-write (null) | A description of the type of place that is addressed. |
PostalCode | string | read-write (null) | Postal code (or zip code). |
Road | string | read-write (null) | A primary road or street. |
RoadBranch | string | read-write (null) | Road branch. |
RoadPostModifier | string | read-write (null) | Road post-modifier. |
RoadPreModifier | string | read-write (null) | Road pre-modifier. |
RoadSection | string | read-write (null) | Road Section. |
RoadSubBranch | string | read-write (null) | Road sub branch. |
Room | string | read-write (null) | Name or number of the room. |
Seat | string | read-write (null) | Seat (desk, cubicle, workstation). |
Street | string | read-write (null) | Street name. |
StreetSuffix | string | read-write (null) | Avenue, Platz, Street, Circle. |
Territory | string | read-write (null) | A top-level subdivision within a country. |
TrailingStreetSuffix | string | read-write (null) | A trailing street suffix. |
Unit } |
string | read-write (null) | Name or number of the unit (apartment, suite). |
LocationType:
The type of location of the part, such as slot, bay, socket and slot.
string | Description |
---|---|
Bay | Defines a bay as the type of location. |
Connector | Defines a connector as the type of location. |
Slot | Defines a slot as the type of location. |
Socket | Defines a socket as the type of location. |
Orientation:
The orientation for the ordering of the slot enumeration used by the LocationOrdinalValue property.
string | Description |
---|---|
BackToFront | Defines the ordering for the LocationOrdinalValue is back to front. |
BottomToTop | Defines the ordering for the LocationOrdinalValue is bottom to top. |
FrontToBack | Defines the ordering for the LocationOrdinalValue is front to back. |
LeftToRight | Defines the ordering for the LocationOrdinalValue is left to right. |
RightToLeft | Defines the ordering for the LocationOrdinalValue is right to left. |
TopToBottom | Defines the ordering for the LocationOrdinalValue is top to bottom. |
RackOffsetUnits:
The type of Rack Units in use.
string | Description |
---|---|
EIA_310 | Defines a rack unit as being equal to 1.75 in (44.45 mm). |
OpenU | Defines a rack unit as being equal to 48 mm (1.89 in). |
Reference:
The reference point for the part location. This is used to give guidance as to the general location of the part.
string | Description |
---|---|
Bottom | Defines the part as being in the bottom of the unit. |
Front | Defines the part as being in the front of the unit. |
Left | Defines the part as being in the left of the unit. |
Middle | Defines the part as being in the middle of the unit. |
Rear | Defines the part as being in the rear of the unit. |
Right | Defines the part as being in the right of the unit. |
Top | Defines the part as being in the top of the unit. |
The following table defines a number of complex types that are used frequently in Swordfish schema. Multiple references to each complex type may be seen in later sections. For detailed definitions and properties contained in each complex type, refer to the schema definitions as referenced in the table.
Capacity {} | This composition may be used to represent storage capacity. The sum of the values in Data, Metadata,and Snapshot shall be equal to the total capacity for the datastore. See the Capacity.v1_1_0 schema for details. |
CapacityInfo {} | This composition may be used to represent the utilization of storage capacity. See the Capacity.v1_1_0 schema for details. |
IOStatistics {} | See the IOStatistics.v1_0_1 schema for details on this property. |
IOWorkload {} | This structure may be used to describe an IO Workload. See the IOPerformanceLoSCapabilities.v1_0_0 schema for details. |
IOWorkloadComponent{} | This structure may be used to describe a component of an IO workload. See the IOPerformanceLoSCapabilities.v1_1_1 schema for details. |
ReplicaInfo {} | The value shall define the characteristics of a replica. See the StorageReplicaInfo.v1_1_0 schema for details. |
ReplicaRequest {} | See the DataProtectionLineOfService.v1_1_0 schema for details. |
Schedule {} | Schedule a series of occurrences. See the Schedule.v1_1_0 schema for details. |
This composition may be used to represent storage capacity. The sum of the values in Data, Metadata, and Snapshot shall be equal to the total capacity for the data store.
Description | string read-only (null) |
This object represents the Description property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
Id | string read-only |
This property represents an identifier for the resource. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
Name | string read-only |
This object represents the Name property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. The value of this string shall be of the format for the reserved word Name. |
Oem {} | object read-write |
The value of this string shall be of the format for the reserved word Oem. See the Resource schema for details on this property. |
ProvidedCapacity { | object read-write (null) |
The value shall be the amount of space that has been provided from the ProvidingDrives, ProvidingVolumes, ProvidingMemory or ProvidingPools. |
@odata.id | string read-only |
Link to another Capacity resource. |
} | ||
ProvidedClassOfService { | object read-write (null) |
The value shall reference the provided ClassOfService from the ProvidingDrives, ProvidingVolumes, ProvidingMemoryChunks, ProvidingMemory or ProvidingPools. See the ClassOfService schema for details on this property. |
@odata.id | string read-only |
Link to a ClassOfService resource. See the Links section and the ClassOfService schema for details. |
} | ||
ProvidingDrives { | object read-write (null) |
If present, the value shall be a reference to a contributing drive or drives. Contains a link to a resource. |
@odata.id | string read-only |
Link to Collection of Drive. See the Drive schema for details. |
} | ||
ProvidingMemory { | object read-write (null) |
If present, the value shall be a reference to the contributing memory. |
@odata.id | string read-only |
The value of this property shall be the unique identifier for the resource and it shall be of the form defined in the Redfish specification. |
} | ||
ProvidingMemoryChunks { | object read-write (null) |
If present, the value shall be a reference to the contributing memory chunks. |
@odata.id | string read-only |
The value of this property shall be the unique identifier for the resource and it shall be of the form defined in the Redfish specification. |
} | ||
ProvidingPools { | object read-write (null) |
If present, the value shall be a reference to a contributing storage pool or storage pools. Contains a link to a resource. |
@odata.id | string read-only |
Link to Collection of StoragePool. See the StoragePool schema for details. |
} | ||
ProvidingVolumes { | object read-write (null) |
If present, the value shall be a reference to a contributing volume or volumes. Contains a link to a resource. |
@odata.id | string read-only |
Link to Collection of Volume. See the Volume schema for details. |
} |
This resource shall define a service option composed of one or more line of service entities. ITIL defines a service option as a choice of utility or warranty for a service.
Actions (v1.1+) {} | object read-write |
The Actions property shall contain the available actions for this resource. |
ClassOfServiceVersion | string read-write (null) |
The version describing the creation or last modification of this service option specification. The string representing the version shall be in the form: M + '.' + N + '.' + U Where: M - The major version (in numeric form). N - The minor version (in numeric form). U - The update (e.g. errata or patch in numeric form). |
DataProtectionLinesOfService (v1.1.1+) [ { | array read-write |
The value shall be a set of data protection service options. Within a class of service, one data protection service option shall be present for each replication session. |
@odata.id | string read-only |
Link to a DataProtectionLineOfService resource. See the Links section and the DataProtectionLineOfService schema for details. |
} ] | ||
DataSecurityLinesOfService (v1.1.1+) [ { | array read-write |
The value shall be a set of data security service options. |
@odata.id | string read-only |
Link to a DataSecurityLineOfService resource. See the Links section and the DataSecurityLineOfService schema for details. |
} ] | ||
DataStorageLinesOfService (v1.1.1+) [ { | array read-write |
The value shall be a set of data protection service options. |
@odata.id | string read-only |
Link to a DataStorageLineOfService resource. See the Links section and the DataStorageLineOfService schema for details. |
} ] | ||
Description | string read-only (null) |
This object represents the Description property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
IOConnectivityLinesOfService (v1.1.1+) [ { | array read-write |
The value shall be a set of IO connectivity service options. Within a class of service, at most one IO connectivity service option may be present for a value of AccessProtocol. |
@odata.id | string read-only |
Link to a IOConnectivityLineOfService resource. See the Links section and the IOConnectivityLineOfService schema for details. |
} ] | ||
IOPerformanceLinesOfService (v1.1.1+) [ { | array read-write |
The value shall be a set of IO performance service options. |
@odata.id | string read-only |
Link to a IOPerformanceLineOfService resource. See the Links section and the IOPerformanceLineOfService schema for details. |
} ] | ||
Id | string read-only |
This property represents an identifier for the resource. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
Identifier | read-write (null) |
See the http://redfish.dmtf.org/schemas/v1/Resource.json#/definitions/Identifier schema for details. |
Name | string read-only |
This object represents the Name property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. The value of this string shall be of the format for the reserved word Name. |
Oem {} | object read-write |
The value of this string shall be of the format for the reserved word Oem. See the Resource schema for details on this property. |
Description | string read-only (null) |
This object represents the Description property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
Members [ { | array read-only |
The value of each member entry shall reference a ClassOfService resource. |
@odata.id | string read-only |
Link to a ClassOfService resource. See the Links section and the ClassOfService schema for details. |
} ] | ||
Name | string read-only |
This object represents the Name property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. The value of this string shall be of the format for the reserved word Name. |
Oem {} | object read-write |
The value of this string shall be of the format for the reserved word Oem. See the Resource schema for details on this property. |
This service option describes a replica that protects data from loss. The requirements must be met collectively by the communication path and the replica.
Description | string read-only (null) |
This object represents the Description property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
Id | string read-only |
This property represents an identifier for the resource. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
IsIsolated | boolean read-write (null) |
True shall indicate that the replica is in a separate fault domain from its source. The default value of this property is false. |
MinLifetime | string read-write (null) |
The value shall be an ISO 8601 duration that specifies the minimum required lifetime of the replica. Note: The maximum number of replicas can be determined using this value together with the replicaSchedule. |
Name | string read-only |
This object represents the Name property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. The value of this string shall be of the format for the reserved word Name. |
Oem {} | object read-write |
The value of this string shall be of the format for the reserved word Oem. See the Resource schema for details on this property. |
RecoveryGeographicObjective | string (enum) read-write (null) |
The value specifies the geograhic scope of the failure domain. See RecoveryGeographicObjective in Property Details, below, for the possible values of this property. |
RecoveryPointObjectiveTime | string read-write (null) |
The value shall be an ISO 8601 duration that specifies the maximum time over which source data may be lost on failure. In the case that IsIsolated = false, failure of the domain is not a consideration. |
RecoveryTimeObjective | string (enum) read-write (null) |
The value shall be an enumeration that indicates the maximum time required to access an alternate replica. In the case that IsIsolated = false, failure of the domain is not a consideration. See RecoveryTimeObjective in Property Details, below, for the possible values of this property. |
ReplicaAccessLocation {} | object read-write (null) |
This value shall be used if the data access location of the replica is required to be at a specific location. Note 1: The location value may be granular. Note 2: A value may be required for some regulatory compliance. See the Location.v1_0_0 schema for details on this property. |
ReplicaClassOfService { | object read-write (null) |
The value shall reference the class of service that defines the required service levels of the replica. See the ClassOfService schema for details on this property. |
@odata.id | string read-only |
Link to a ClassOfService resource. See the Links section and the ClassOfService schema for details. |
} | ||
ReplicaType | string (enum) read-write (null) |
The type of replica shall conform to this value. See ReplicaType in Property Details, below, for the possible values of this property. |
Schedule | read-write (null) |
See the http://redfish.dmtf.org/schemas/swordfish/v1/Schedule.json#/definitions/Schedule schema for details. |
The value specifies the geograhic scope of the failure domain.
string | Description |
---|---|
Datacenter | A facility that provides communication, power, or cooling infrastructure to a co-located set of servers, networking and storage. |
Rack | A container within a datacenter that provides communication, power, or cooling to a set of components. |
RackGroup | A set of racks that may share common communication, power, or cooling. |
Region | A set of resources that are required to be either geographically or politically isolated from resources not in the resources. |
Row | A set of adjacent racks or rackgroups that may share common communication, power, or cooling. |
Server | Components of a CPU/memory complex that share the same infrastructure. |
The value shall be an enumeration that indicates the maximum time required to access an alternate replica. In the case that IsIsolated = false, failure of the domain is not a consideration.
string | Description |
---|---|
Nearline | Access to a replica shall be consistent with switching access to a different path through a different front-end interconnection infrastructure. Some inconsistency may occur. A restore step may be required before recovery can commence. |
Offline | Access to a replica may take a significant amount of time. No direct connection to the replica is assumed. Some inconsistency loss may occur. A restore step is likely to be required. |
OnlineActive | Access to synchronous replicas shall be instantaneous. |
OnlinePassive | Access to a synchronous replica shall be consistent with switching access to a different path the same front-end interconnect. A restore step shall not be required. |
The type of replica shall conform to this value.
string | Description |
---|---|
Clone | This enumeration literal shall indicate that replication shall create a point in time, full copy the source. |
Mirror | This enumeration literal shall indicate that replication shall create and maintain a copy of the source. |
Snapshot | This enumeration literal shall indicate that replication shall create a point in time, virtual copy of the source. |
TokenizedClone | This enumeration literal shall indicate that replication shall create a token based clone. |
The capabilities to protect data from loss by the use of a replica. The requirements shall be met collectively by the communication path and the replica. There should be one instance associated to a class of service for each replica. Each replica independently should have a class of service that describes its characteristics.
Actions (v1.1+) {} | object read-write |
The Actions property shall contain the available actions for this resource. |
Description | string read-only (null) |
This object represents the Description property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
Id | string read-only |
This property represents an identifier for the resource. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
Identifier | read-write (null) |
See the http://redfish.dmtf.org/schemas/v1/Resource.json#/definitions/Identifier schema for details. |
Links { | object read-only |
The value of this property shall contains links to other resources that are not contained in this resource. |
Oem {} | object read-write |
This object represents the Oem property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. See the Resource schema for details on this property. |
SupportedReplicaOptions [ { | array read-write |
The collection shall contain known and supported replica Classes of Service. |
@odata.id | string read-only |
Link to a ClassOfService resource. See the Links section and the ClassOfService schema for details. |
} ] | ||
SupportedReplicaOptions@odata.count | number read-only |
The value of this property shall be an integer representing the number of items in a collection. |
} | ||
Name | string read-only |
This object represents the Name property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. The value of this string shall be of the format for the reserved word Name. |
Oem {} | object read-write |
The value of this string shall be of the format for the reserved word Oem. See the Resource schema for details on this property. |
SupportedLinesOfService [ { | array read-write |
The collection shall contain known and supported DataProtectionLinesOfService. |
@odata.id | string read-only |
Link to a DataProtectionLineOfService resource. See the Links section and the DataProtectionLineOfService schema for details. |
} ] | ||
SupportedMinLifetimes [ ] | array (string, null) read-write |
The value of each entry shall be an ISO 8601 duration that specifies the minimum lifetime required for the replica. |
SupportedRecoveryGeographicObjectives [ { | array read-write |
The value of each entry shall specify a supported failure domain. |
FailureDomainScope | string (enum) read-write (null) |
The enumeration literals of this enumeration shall represent a geographic scope in which all components within that scope have similar vulnerabilities. See FailureDomainScope in Property Details, below, for the possible values of this property. |
} ] | ||
SupportedRecoveryPointObjectiveTimes [ ] | array (string, null) read-write |
The value of each entry shall specify a supported ISO 8601 time interval defining the maximum source information that may be lost on failure. In the case that IsIsolated = false, failure of the domain is not a consideration. |
SupportedRecoveryTimeObjectives [ { | array read-write |
The value of each entry shall specify an enumerated value that indicates a supported expectation for the time required to access an alternate replica. In the case that IsIsolated = false, failure of the domain is not a consideration. |
RecoveryAccessScope | string (enum) read-write (null) |
The enumeration literals shall represent the relative time required to make a replica available as a source. See RecoveryAccessScope in Property Details, below, for the possible values of this property. |
} ] | ||
SupportedReplicaTypes [ { | array read-write |
The value of each entry shall specify a supported replica type |
ReplicaType | string (enum) read-write (null) |
The enumeration literals may be used to specify the intended outcome of the replication. See ReplicaType in Property Details, below, for the possible values of this property. |
} ] | ||
SupportsIsolated | boolean read-write (null) |
A value of true shall indicate that allocating a replica in a separate fault domain is supported. The default value for this property is false. |
The enumeration literals of this enumeration shall represent a geographic scope in which all components within that scope have similar vulnerabilities.
string | Description |
---|---|
Datacenter | A facility that provides communication, power, or cooling infrastructure to a co-located set of servers, networking and storage. |
Rack | A container within a datacenter that provides communication, power, or cooling to a set of components. |
RackGroup | A set of racks that may share common communication, power, or cooling. |
Region | A set of resources that are required to be either geographically or politically isolated from resources not in the resources. |
Row | A set of adjacent racks or rackgroups that may share common communication, power, or cooling. |
Server | Components of a CPU/memory complex that share the same infrastructure. |
The enumeration literals shall represent the relative time required to make a replica available as a source.
string | Description |
---|---|
Nearline | Access to a replica shall be consistent with switching access to a different path through a different front-end interconnection infrastructure. Some inconsistency may occur. A restore step may be required before recovery can commence. |
Offline | Access to a replica may take a significant amount of time. No direct connection to the replica is assumed. Some inconsistency loss may occur. A restore step is likely to be required. |
OnlineActive | Access to synchronous replicas shall be instantaneous. |
OnlinePassive | Access to a synchronous replica shall be consistent with switching access to a different path the same front-end interconnect. A restore step shall not be required. |
The enumeration literals may be used to specify the intended outcome of the replication.
string | Description |
---|---|
Clone | This enumeration literal shall indicate that replication shall create a point in time, full copy the source. |
Mirror | This enumeration literal shall indicate that replication shall create and maintain a copy of the source. |
Snapshot | This enumeration literal shall indicate that replication shall create a point in time, virtual copy of the source. |
TokenizedClone | This enumeration literal shall indicate that replication shall create a token based clone. |
This structure shall be used to describe data security service level requirements.
AntivirusEngineProvider | string read-write (null) |
The value shall specify an AntiVirus provider. |
AntivirusScanPolicies [ { | array read-write |
The enumeration literal shall specify the policy for triggering an AntiVirus scan. |
AntiVirusScanTrigger | string (enum) read-write (null) |
The enumberation literals shall specify types of antivirus scan triggers. See AntiVirusScanTrigger in Property Details, below, for the possible values of this property. |
} ] | ||
ChannelEncryptionStrength | string (enum) read-write (null) |
The enumeration literal shall specify a key size in a symmetric encryption algorithm for transport channel encryption. See ChannelEncryptionStrength in Property Details, below, for the possible values of this property. |
DataSanitizationPolicy | string (enum) read-write (null) |
The enumeration literal shall specify the data sanitization policy. See DataSanitizationPolicy in Property Details, below, for the possible values of this property. |
Description | string read-only (null) |
This object represents the Description property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
HostAuthenticationType | string (enum) read-write (null) |
The enumeration literal shall specify the authentication type for hosts (servers) or initiator endpoints. See HostAuthenticationType in Property Details, below, for the possible values of this property. |
Id | string read-only |
This property represents an identifier for the resource. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
MediaEncryptionStrength | string (enum) read-write (null) |
The enumeration literal shall specify a key size in a symmetric encryption algorithm for media encryption. See MediaEncryptionStrength in Property Details, below, for the possible values of this property. |
Name | string read-only |
This object represents the Name property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. The value of this string shall be of the format for the reserved word Name. |
Oem {} | object read-write |
The value of this string shall be of the format for the reserved word Oem. See the Resource schema for details on this property. |
SecureChannelProtocol | string (enum) read-write (null) |
The enumeration literal shall specify the protocol that provide encrypted communication. See SecureChannelProtocol in Property Details, below, for the possible values of this property. |
UserAuthenticationType | string (enum) read-write (null) |
The enumeration literal shall specify the authentication type for users (or programs). See UserAuthenticationType in Property Details, below, for the possible values of this property. |
The enumberation literals shall specify types of antivirus scan triggers.
string | Description |
---|---|
None | This enumeration literal specifies No trigger. |
OnFirstRead | This enumeration literal specifies to trigger on first read. |
OnPatternUpdate | This enumeration literal specifies to trigger on antivirus pattern file update. |
OnRename | This enumeration literal specifies to trigger on object rename. |
OnUpdate | This enumeration literal specifies to trigger on object update. |
The enumeration literal shall specify a key size in a symmetric encryption algorithm for transport channel encryption.
string | Description |
---|---|
Bits_0 | This enumeration literal specifies that there is no key. |
Bits_112 | This enumeration literal specifies a 3DES 112 bit key. |
Bits_128 | This enumeration literal specifies an AES 128 bit key. |
Bits_192 | This enumeration literal specifies an AES 192 bit key. |
Bits_256 | This enumeration literal specifies an AES 256 bit key. |
The enumeration literal shall specify the data sanitization policy.
string | Description |
---|---|
Clear | This enumeration literal specifies to sanitize data in all user-addressable storage locations for protection against simple non-invasive data recovery techniques. |
CryptographicErase | This enumeration literal specifies to leverages the encryption of target data by enabling sanitization of the target data's encryption key. This leaves only the ciphertext remaining on the media, effectively sanitizing the data by preventing read-access. For more information, see NIST800-88 and ISO/IEC 27040. |
None | This enumeration literal specifies no sanitization. |
The enumeration literal shall specify the authentication type for hosts (servers) or initiator endpoints.
string | Description |
---|---|
None | This enumeration literal specifies No authentication. |
PKI | This enumeration literal specifies a Public Key Infrastructure. Customers with the highest assurance requirements roll PKI out to hosts and users (it is more common for hosts than users. User PKI-based authentication has significant operational complications and administrative overheads, e.g., smart cards may be involved. |
Password | This enumeration literal specifies Password/shared-secret: Absent an distributed authentication infrastructure, this is what is typically done. |
Ticket | This enumeration literal specifies Ticket-based (e.g., Kerberos): This is the most common class of authentication infrastructure used in enterprises. Kerberos is the best known example, and Windows usage of that via Active Directory is so widely deployed as to be a de facto standard. In other areas (e.g., academia) there are comparable ticket-based systems. |
The enumeration literal shall specify a key size in a symmetric encryption algorithm for media encryption.
string | Description |
---|---|
Bits_0 | This enumeration literal specifies that there is no key. |
Bits_112 | This enumeration literal specifies a 3DES 112 bit key. |
Bits_128 | This enumeration literal specifies an AES 128 bit key. |
Bits_192 | This enumeration literal specifies an AES 192 bit key. |
Bits_256 | This enumeration literal specifies an AES 256 bit key. |
The enumeration literal shall specify the protocol that provide encrypted communication.
string | Description |
---|---|
IPsec | This enumeration literal specifies Internet Protocol Security (IPsec), as defined by IETF RFC 2401. |
None | This enumeration literal specifies no encryption. |
RPCSEC_GSS | This enumeration literal specifies RPC access to the Generic Security Services Application Programming Interface (GSS-API), as defined by IETF RPC 2203. |
TLS | This enumeration literal specifies Transport Layer Security (TLS), as defined by IETF RFC 5246. |
The enumeration literal shall specify the authentication type for users (or programs).
string | Description |
---|---|
None | This enumeration literal specifies No authentication. |
PKI | This enumeration literal specifies a Public Key Infrastructure. Customers with the highest assurance requirements roll PKI out to hosts and users (it is more common for hosts than users. User PKI-based authentication has significant operational complications and administrative overheads, e.g., smart cards may be involved. |
Password | This enumeration literal specifies Password/shared-secret: Absent an distributed authentication infrastructure, this is what is typically done. |
Ticket | This enumeration literal specifies Ticket-based (e.g., Kerberos): This is the most common class of authentication infrastructure used in enterprises. Kerberos is the best known example, and Windows usage of that via Active Directory is so widely deployed as to be a de facto standard. In other areas (e.g., academia) there are comparable ticket-based systems. |
This resource may be used to describe data security capabilities.
Actions (v1.1+) {} | object read-write |
The Actions property shall contain the available actions for this resource. |
Description | string read-only (null) |
This object represents the Description property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
Id | string read-only |
This property represents an identifier for the resource. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
Identifier | read-write (null) |
See the http://redfish.dmtf.org/schemas/v1/Resource.json#/definitions/Identifier schema for details. |
Name | string read-only |
This object represents the Name property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. The value of this string shall be of the format for the reserved word Name. |
Oem {} | object read-write |
The value of this string shall be of the format for the reserved word Oem. See the Resource schema for details on this property. |
SupportedAntivirusEngineProviders [ ] | array (string, null) read-write |
The entry values shall specify supported AntiVirus providers. |
SupportedAntivirusScanPolicies [ { | array read-write |
The enumeration literal shall specify supported policies that trigger an AntiVirus scan. |
AntiVirusScanTrigger | string (enum) read-write (null) |
The enumberation literals shall specify types of antivirus scan triggers. See AntiVirusScanTrigger in Property Details, below, for the possible values of this property. |
} ] | ||
SupportedChannelEncryptionStrengths [ { | array read-write |
The enumeration literal shall specify supported key sizes in a symmetric encryption algorithm (AES) for transport channel encryption. |
KeySize | string (enum) read-write (null) |
The enumeration literals shall specify Key sizes in a symmetric encryption algorithm, (see NIST SP 800-57 part 1 (http:/csrc.nist.gov/publications/nistpubs/800-57/sp800-57_part1_rev3_general.pdf) See KeySize in Property Details, below, for the possible values of this property. |
} ] | ||
SupportedDataSanitizationPolicies [ { | array read-write |
The enumeration literal shall specify supported data sanitization policies. |
DataSanitizationPolicy | string (enum) read-write (null) |
The enumberation literals shall specify types of data sanitization policies. See DataSanitizationPolicy in Property Details, below, for the possible values of this property. |
} ] | ||
SupportedHostAuthenticationTypes [ { | array read-write |
The enumeration literal shall specify supported authentication types for hosts (servers) or initiator endpoints. |
AuthenticationType | string (enum) read-write (null) |
The enumeration literals shall specify authentication algorithms. See AuthenticationType in Property Details, below, for the possible values of this property. |
} ] | ||
SupportedLinesOfService [ { | array read-write |
The collection shall contain supported DataSecurity service options. |
@odata.id | string read-only |
Link to a DataSecurityLineOfService resource. See the Links section and the DataSecurityLineOfService schema for details. |
} ] | ||
SupportedMediaEncryptionStrengths [ { | array read-write |
The enumeration literal shall specify supported key sizes in a symmetric encryption algorithm (AES) for media encryption. |
KeySize | string (enum) read-write (null) |
The enumeration literals shall specify Key sizes in a symmetric encryption algorithm, (see NIST SP 800-57 part 1 (http:/csrc.nist.gov/publications/nistpubs/800-57/sp800-57_part1_rev3_general.pdf) See KeySize in Property Details, below, for the possible values of this property. |
} ] | ||
SupportedSecureChannelProtocols [ { | array read-write |
The enumeration literal shall specify supported protocols that provide encrypted communication. |
SecureChannelProtocol | string (enum) read-write (null) |
The enumeration literals shall specify types of Secure channel protocols. See SecureChannelProtocol in Property Details, below, for the possible values of this property. |
} ] | ||
SupportedUserAuthenticationTypes [ { | array read-write |
The enumeration literal shall specify supported authentication types for users (or programs). |
AuthenticationType | string (enum) read-write (null) |
The enumeration literals shall specify authentication algorithms. See AuthenticationType in Property Details, below, for the possible values of this property. |
} ] |
The enumberation literals shall specify types of antivirus scan triggers.
string | Description |
---|---|
None | This enumeration literal specifies No trigger. |
OnFirstRead | This enumeration literal specifies to trigger on first read. |
OnPatternUpdate | This enumeration literal specifies to trigger on antivirus pattern file update. |
OnRename | This enumeration literal specifies to trigger on object rename. |
OnUpdate | This enumeration literal specifies to trigger on object update. |
The enumeration literals shall specify authentication algorithms.
string | Description |
---|---|
None | This enumeration literal specifies No authentication. |
PKI | This enumeration literal specifies a Public Key Infrastructure. Customers with the highest assurance requirements roll PKI out to hosts and users (it is more common for hosts than users. User PKI-based authentication has significant operational complications and administrative overheads, e.g., smart cards may be involved. |
Password | This enumeration literal specifies Password/shared-secret: Absent an distributed authentication infrastructure, this is what is typically done. |
Ticket | This enumeration literal specifies Ticket-based (e.g., Kerberos): This is the most common class of authentication infrastructure used in enterprises. Kerberos is the best known example, and Windows usage of that via Active Directory is so widely deployed as to be a de facto standard. In other areas (e.g., academia) there are comparable ticket-based systems. |
The enumberation literals shall specify types of data sanitization policies.
string | Description |
---|---|
Clear | This enumeration literal specifies to sanitize data in all user-addressable storage locations for protection against simple non-invasive data recovery techniques. |
CryptographicErase | This enumeration literal specifies to leverages the encryption of target data by enabling sanitization of the target data's encryption key. This leaves only the ciphertext remaining on the media, effectively sanitizing the data by preventing read-access. For more information, see NIST800-88 and ISO/IEC 27040. |
None | This enumeration literal specifies no sanitization. |
The enumeration literals shall specify Key sizes in a symmetric encryption algorithm, (see NIST SP 800-57 part 1 (http:/csrc.nist.gov/publications/nistpubs/800-57/sp800-57_part1_rev3_general.pdf)
string | Description |
---|---|
Bits_0 | This enumeration literal specifies that there is no key. |
Bits_112 | This enumeration literal specifies a 3DES 112 bit key. |
Bits_128 | This enumeration literal specifies an AES 128 bit key. |
Bits_192 | This enumeration literal specifies an AES 192 bit key. |
Bits_256 | This enumeration literal specifies an AES 256 bit key. |
The enumeration literals shall specify types of Secure channel protocols.
string | Description |
---|---|
IPsec | This enumeration literal specifies Internet Protocol Security (IPsec), as defined by IETF RFC 2401. |
None | This enumeration literal specifies no encryption. |
RPCSEC_GSS | This enumeration literal specifies RPC access to the Generic Security Services Application Programming Interface (GSS-API), as defined by IETF RPC 2203. |
TLS | This enumeration literal specifies Transport Layer Security (TLS), as defined by IETF RFC 5246. |
This structure may be used to describe a service option covering storage provisioning and availability.
AccessCapabilities (v1.1+) [ { | array read-write |
Each entry specifies a required storage access capability. |
StorageAccessCapability | string (enum) read-write (null) |
StorageAccessCapability enumeration literals may be used to describe abilities to read or write storage. See StorageAccessCapability in Property Details, below, for the possible values of this property. |
} ] | ||
Description | string read-only (null) |
This object represents the Description property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
Id | string read-only |
This property represents an identifier for the resource. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
IsSpaceEfficient | boolean read-write (null) |
A value of true shall indicate that the storage is compressed or deduplicated. The default value for this property is false. |
Name | string read-only |
This object represents the Name property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. The value of this string shall be of the format for the reserved word Name. |
Oem {} | object read-write |
The value of this string shall be of the format for the reserved word Oem. See the Resource schema for details on this property. |
ProvisioningPolicy | string (enum) read-write (null) |
The enumeration literal shall define the provisioning policy for storage. See ProvisioningPolicy in Property Details, below, for the possible values of this property. |
RecoveryTimeObjectives | string (enum) read-write (null) |
The enumeration literal specifies the time after a disaster that the client shall regain conformant service level access to the primary store, typical values are 'immediate' or 'offline'. The expectation is that the services required to implement this capability are part of the advertising system. See RecoveryTimeObjectives in Property Details, below, for the possible values of this property. |
The enumeration literal shall define the provisioning policy for storage.
string | Description |
---|---|
Fixed | This enumeration literal specifies storage shall be fully allocated. |
Thin | This enumeration literal specifies storage may be over allocated. |
The enumeration literal specifies the time after a disaster that the client shall regain conformant service level access to the primary store, typical values are 'immediate' or 'offline'. The expectation is that the services required to implement this capability are part of the advertising system.
string | Description |
---|---|
Nearline | Access to a replica shall be consistent with switching access to a different path through a different front-end interconnection infrastructure. Some inconsistency may occur. A restore step may be required before recovery can commence. |
Offline | Access to a replica may take a significant amount of time. No direct connection to the replica is assumed. Some inconsistency loss may occur. A restore step is likely to be required. |
OnlineActive | Access to synchronous replicas shall be instantaneous. |
OnlinePassive | Access to a synchronous replica shall be consistent with switching access to a different path the same front-end interconnect. A restore step shall not be required. |
StorageAccessCapability enumeration literals may be used to describe abilities to read or write storage.
string | Description |
---|---|
Append | This enumeration literal shall indicate that the storage may be written only to append. |
Execute | This value shall indicate that Execute access is allowed by the file share. |
Read | This enumeration literal shall indicate that the storage may be read. |
Streaming | This enumeration literal shall indicate that the storage may be read sequentially. |
Write | This enumeration literal shall indicate that the storage may be written multiple times. |
WriteOnce | This enumeration literal shall indicate that the storage may be written only once. |
Each instance of DataStorageLoSCapabilities describes capabilities of the system to support various data storage service options.
Actions (v1.1+) {} | object read-write |
The Actions property shall contain the available actions for this resource. |
Description | string read-only (null) |
This object represents the Description property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
Id | string read-only |
This property represents an identifier for the resource. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
Identifier | read-write (null) |
See the http://redfish.dmtf.org/schemas/v1/Resource.json#/definitions/Identifier schema for details. |
Name | string read-only |
This object represents the Name property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. The value of this string shall be of the format for the reserved word Name. |
Oem {} | object read-write |
The value of this string shall be of the format for the reserved word Oem. See the Resource schema for details on this property. |
SupportedAccessCapabilities [ { | array read-write |
Each entry specifies a storage access capability. |
StorageAccessCapability | string (enum) read-write (null) |
StorageAccessCapability enumeration literals may be used to describe abilities to read or write storage. See StorageAccessCapability in Property Details, below, for the possible values of this property. |
} ] | ||
SupportedLinesOfService [ { | array read-write |
The collection shall contain known and supported DataStorageLinesOfService. |
@odata.id | string read-only |
Link to a DataStorageLineOfService resource. See the Links section and the DataStorageLineOfService schema for details. |
} ] | ||
SupportedProvisioningPolicies [ { | array read-write |
This collection specifies supported storage allocation policies. |
ProvisioningPolicy | string (enum) read-write (null) |
The enumeration literals may be used to specify space provisioning policy. See ProvisioningPolicy in Property Details, below, for the possible values of this property. |
} ] | ||
SupportedRecoveryTimeObjectives [ { | array read-write |
This collection specifies supported expectations for time to access the primary store after recovery. |
RecoveryAccessScope | string (enum) read-write (null) |
The enumeration literals shall represent the relative time required to make a replica available as a source. See RecoveryAccessScope in Property Details, below, for the possible values of this property. |
} ] | ||
SupportsSpaceEfficiency | boolean read-write (null) |
The value specifies whether storage compression or deduplication is supported. The default value for this property is false. |
The enumeration literals may be used to specify space provisioning policy.
string | Description |
---|---|
Fixed | This enumeration literal specifies storage shall be fully allocated. |
Thin | This enumeration literal specifies storage may be over allocated. |
The enumeration literals shall represent the relative time required to make a replica available as a source.
string | Description |
---|---|
Nearline | Access to a replica shall be consistent with switching access to a different path through a different front-end interconnection infrastructure. Some inconsistency may occur. A restore step may be required before recovery can commence. |
Offline | Access to a replica may take a significant amount of time. No direct connection to the replica is assumed. Some inconsistency loss may occur. A restore step is likely to be required. |
OnlineActive | Access to synchronous replicas shall be instantaneous. |
OnlinePassive | Access to a synchronous replica shall be consistent with switching access to a different path the same front-end interconnect. A restore step shall not be required. |
StorageAccessCapability enumeration literals may be used to describe abilities to read or write storage.
string | Description |
---|---|
Append | This enumeration literal shall indicate that the storage may be written only to append. |
Execute | This value shall indicate that Execute access is allowed by the file share. |
Read | This enumeration literal shall indicate that the storage may be read. |
Streaming | This enumeration literal shall indicate that the storage may be read sequentially. |
Write | This enumeration literal shall indicate that the storage may be written multiple times. |
WriteOnce | This enumeration literal shall indicate that the storage may be written only once. |
Description | string read-only (null) |
This object represents the Description property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
Members [ { | array read-only |
The value of each entry of this property shall reference a Drive resource. |
@odata.id | string read-only |
The value of this property shall be the unique identifier for the resource and it shall be of the form defined in the Redfish specification. |
} ] | ||
Name | string read-only |
This object represents the Name property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. The value of this string shall be of the format for the reserved word Name. |
Oem {} | object read-write |
The value of this string shall be of the format for the reserved word Oem. See the Resource schema for details on this property. |
Description | string read-only (null) |
This object represents the Description property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
Members [ { | array read-only |
The value of each member entry shall reference an Endpoint resource. |
@odata.id | string read-only |
The value of this property shall be the unique identifier for the resource and it shall be of the form defined in the Redfish specification. |
} ] | ||
Name | string read-only |
This object represents the Name property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. The value of this string shall be of the format for the reserved word Name. |
Oem {} | object read-write |
The value of this string shall be of the format for the reserved word Oem. See the Resource schema for details on this property. |
An EndpointGroup represents a collection of endpoints that are managed as a unit. By grouping together a collection of Endpoints, the EndpointGroup allows a collection of entities from differing sources or hosts to be manipulated uniformly and efficiently.
For any given EndpointGroup, all of its endpoints act exclusively as either server endpoints or client endpoints, as indicated by the value of the EndpointType property. Similarly, each Endpoint within a group has the same AccessState.
A server or client may define multiple EndpointGroup entities that access the same set of resources or functionality. A group may be designated as preferred, which signifies that access should be directed through its members in preference to the Endpoints listed in other EndpointGroups. If the value of EndpointType is Server, an EndpointGroup entity can be used to represent target port group as defined by SCSI. In that mode, the value of the TargetEndpointGroupIdentifier should correspond to the target port group number. (See clause "Device Identification VPD page" as defined in the SCSI Primary Commands specification.)
AccessState | string (enum) read-write (null) |
Access to all associated resources through all aggregated endpoints shall share this access state. See AccessState in Property Details, below, for the possible values of this property. |
Actions (v1.1+) {} | object read-write |
The Actions property shall contain the available actions for this resource. |
Description | string read-only (null) |
This object represents the Description property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
Endpoints { | object read-write (null) |
The value of each entry shall reference an Endpoint resource. Contains a link to a resource. |
@odata.id | string read-only |
Link to Collection of Endpoint. See the Endpoint schema for details. |
} | ||
GroupType | string (enum) read-write (null) |
The group contains only endpoints of a given type Client/Initiator or Server/Target. If this endpoint group represents a SCSI target group, the value of GroupType shall be Server. See GroupType in Property Details, below, for the possible values of this property. |
Id | string read-only |
This property represents an identifier for the resource. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
Identifier | read-write (null) |
See the http://redfish.dmtf.org/schemas/v1/Resource.json#/definitions/Identifier schema for details. |
Links { | object read-only |
This structure shall contain references to resources that are not contained within this resource. |
Oem {} | object read-write |
This object represents the Oem property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. See the Resource schema for details on this property. |
} | ||
Name | string read-only |
This object represents the Name property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. The value of this string shall be of the format for the reserved word Name. |
Oem {} | object read-write |
The value of this string shall be of the format for the reserved word Oem. See the Resource schema for details on this property. |
Preferred | boolean read-write (null) |
A value of True in this property shall indicate that access to the associated resource through the endpoints in this endpoint group is preferred over access through other endpoints. The default value for this property is false. |
TargetEndpointGroupIdentifier | number read-write (null) |
If this endpoint group represents a SCSI target group, the value of this property shall contain a SCSI defined identifier for this group, which corresponds to the TARGET PORT GROUP field in the REPORT TARGET PORT GROUPS response and the TARGET PORT GROUP field in an INQUIRY VPD page 85 response, type 5h identifier. See the INCITS SAM-5 specification. |
Access to all associated resources through all aggregated endpoints shall share this access state.
string | Description |
---|---|
NonOptimized | In the context of this enumeration literal, each endpoint shall be in an Active/NonOptimized state. |
Optimized | In the context of this enumeration literal, each endpoint shall be in an Active/Optimized state. |
Standby | In the context of this enumeration literal, each endpoint shall be in a Standby state. |
Transitioning | In the context of this enumeration literal, at least one endpoint shall be transitioning to a new AccesState. |
Unavailable | In the context of this enumeration literal, each endpoint shall be in an unavailable state. |
The group contains only endpoints of a given type Client/Initiator or Server/Target. If this endpoint group represents a SCSI target group, the value of GroupType shall be Server.
string | Description |
---|---|
Client | The group contains the client (initiator) endpoints. |
Server | The group contains the server (target) endpoints. |
Description | string read-only (null) |
This object represents the Description property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
Members [ { | array read-only |
The value of each member entry shall reference an endpoint group resource. |
@odata.id | string read-only |
Link to a EndpointGroup resource. See the Links section and the EndpointGroup schema for details. |
} ] | ||
Name | string read-only |
This object represents the Name property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. The value of this string shall be of the format for the reserved word Name. |
Oem {} | object read-write |
The value of this string shall be of the format for the reserved word Oem. See the Resource schema for details on this property. |
This resource shall be used to represent a shared set of files with a common directory structure.
Actions (v1.1+) {} | object read-write |
The Actions property shall contain the available actions for this resource. |
CASupported | boolean read-write (null) |
The value of this property shall indicate that Continuous Availability is supported. Client/Server mediated recovery from network and server failure with application transparency. This property shall be NULL unless the FileSharingProtocols property includes SMB. The default value for this property is false. |
DefaultAccessCapabilities [ { | array read-only |
The value of this property shall be an array containing entries for the default access capabilities for the file share. Each entry shall specify a defaul access privilege. The types of default access can include Read, Write, and/or Execute. |
StorageAccessCapability | string (enum) read-write (null) |
StorageAccessCapability enumeration literals may be used to describe abilities to read or write storage. See StorageAccessCapability in Property Details, below, for the possible values of this property. |
} ] | ||
Description | string read-only (null) |
This object represents the Description property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
EthernetInterfaces { | object read-only |
The value shall be a link to an EthernetInterfaceCollection with members that provide access to the file share. |
@odata.id | string read-only |
The value of this property shall be the unique identifier for the resource and it shall be of the form defined in the Redfish specification. |
} | ||
ExecuteSupport | boolean read-only (null) |
The value of this property shall indicate whether Execute access is supported by the file share. The default value for this property is false. |
FileSharePath | string read-only (null) |
The value of this property shall be a path (relative to the file system root) to the exported file or directory on the file system where this file share is hosted. |
FileShareQuotaType | string (enum) read-write (null) |
If FileShareQuotaType is present, a value of Soft shall specify that quotas are not enforced, and a value of Hard shall specify that writes shall fail if the space consumed would exceed the value of the FileShareTotalQuotaBytes property. See FileShareQuotaType in Property Details, below, for the possible values of this property. |
FileShareRemainingQuotaBytes | number (By) read-write (null) |
If present, the value of this property shall indicate the remaining number of bytes that may be consumed by this file share. |
FileShareTotalQuotaBytes | number (By) read-write (null) |
If present, the value of this property shall indicate the maximum number of bytes that may be consumed by this file share. |
FileSharingProtocols [ { | array read-only |
This property shall be an array containing entries for the file sharing protocols supported by this file share. Each entry shall specify a file sharing protocol supported by the file system. |
FileProtocol | string (enum) read-write (null) |
The values shall indicate the file sharing protocols supported by the file system. At least one value shall be present. See FileProtocol in Property Details, below, for the possible values of this property. |
} ] | ||
Id | string read-only |
This property represents an identifier for the resource. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
Links { | object read-only |
This property shall contain links to other resources that are related to this resource. |
ClassOfService { | object read-write (null) |
This value shall be a link to the ClassOfService for this file share. See the ClassOfService schema for details on this property. |
@odata.id | string read-only |
Link to a ClassOfService resource. See the Links section and the ClassOfService schema for details. |
} | ||
FileSystem { | object read-only (null) |
The value shall be a link to the file system containing the file share. See the FileSystem schema for details on this property. |
@odata.id | string read-only |
Link to a FileSystem resource. See the Links section and the FileSystem schema for details. |
} | ||
Oem {} | object read-write |
This object represents the Oem property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. See the Resource schema for details on this property. |
} | ||
LowSpaceWarningThresholdPercents [ ] | array (%) (number, null) read-write |
This property shall be an array containing entries for the percentages of file share capacity at which low space warning events are be issued. A LOW_SPACE_THRESHOLD_WARNING event shall be triggered each time the remaining file share capacity value becomes less than one of the values in the array. The following shall be true: Across all CapacitySources entries, percent = (SUM(AllocatedBytes) - SUM(ConsumedBytes))/SUM(AllocatedBytes) |
Name | string read-only |
This object represents the Name property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. The value of this string shall be of the format for the reserved word Name. |
Oem {} | object read-write |
The value of this string shall be of the format for the reserved word Oem. See the Resource schema for details on this property. |
RemainingCapacityPercent (v1.1+) | number read-only (null) |
If present, this value shall return {[(SUM(AllocatedBytes) - SUM(ConsumedBytes)]/SUM(AllocatedBytes)}*100 represented as an integer value. |
RootAccess | boolean read-only (null) |
The value of this property shall indicate whether Root access is allowed by the file share. The default value for this property is false. |
Status {} | object read-only (null) |
This value of this property shall indicate the status of the file share. See the Resource schema for details on this property. |
WritePolicy | string (enum) read-only (null) |
The value of this property shall define how writes are replicated to the shared source. See WritePolicy in Property Details, below, for the possible values of this property. |
The values shall indicate the file sharing protocols supported by the file system. At least one value shall be present.
string | Description |
---|---|
NFSv3 | This value shall indicate that NFSv3, as defined in RFC 1813, is supported by the file system. |
NFSv4_0 | This value shall indicate that NFSv4, as defined in RFC 7530, is supported by the file system. |
NFSv4_1 | This value shall indicate that NFSv4.1, as defined in RFC 5661, is supported by the file system. |
SMBv2_0 | This value shall indicate that Server Message Block version 2.0 is supported by the file system. |
SMBv2_1 | This value shall indicate that Server Message Block version 2.1 is supported by the file system. |
SMBv3_0 | This value shall indicate that Server Message Block version 3.0 is supported by the file system. |
SMBv3_0_2 | This value shall indicate that Server Message Block version 3.0.2 is supported by the file system. |
SMBv3_1_1 | This value shall indicate that Server Message Block version 3.1.1 is supported by the file system. |
If FileShareQuotaType is present, a value of Soft shall specify that quotas are not enforced, and a value of Hard shall specify that writes shall fail if the space consumed would exceed the value of the FileShareTotalQuotaBytes property.
string | Description |
---|---|
Hard | This value shall indicate that quotas are enabled and enforced. |
Soft | This value shall indicate that quotas are enabled but not enforced. |
StorageAccessCapability enumeration literals may be used to describe abilities to read or write storage.
string | Description |
---|---|
Append | This enumeration literal shall indicate that the storage may be written only to append. |
Execute | This value shall indicate that Execute access is allowed by the file share. |
Read | This enumeration literal shall indicate that the storage may be read. |
Streaming | This enumeration literal shall indicate that the storage may be read sequentially. |
Write | This enumeration literal shall indicate that the storage may be written multiple times. |
WriteOnce | This enumeration literal shall indicate that the storage may be written only once. |
The value of this property shall define how writes are replicated to the shared source.
string | Description |
---|---|
Active | This enumeration literal shall indicate Active-Active (i.e. bidirectional) synchronous updates. |
Adaptive | This enumeration literal shall indicate that an implementation may switch between synchronous and asynchronous modes. |
Asynchronous | This enumeration literal shall indicate Asynchronous updates. |
Synchronous | This enumeration literal shall indicate Synchronous updates. |
Description | string read-only (null) |
This object represents the Description property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
Members [ { | array read-only |
This property shall contain references to the members of this FileSystem collection. |
@odata.id | string read-only |
Link to a FileShare resource. See the Links section and the FileShare schema for details. |
} ] | ||
Name | string read-only |
This object represents the Name property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. The value of this string shall be of the format for the reserved word Name. |
Oem {} | object read-write |
The value of this string shall be of the format for the reserved word Oem. See the Resource schema for details on this property. |
This resource shall be used to represent an instance of a hierarchical namespace of files.
AccessCapabilities [ { | array read-write |
This property shall be an array containing entries for the supported IO access capabilities. Each entry shall specify a current storage access capability. |
StorageAccessCapability | string (enum) read-write (null) |
StorageAccessCapability enumeration literals may be used to describe abilities to read or write storage. See StorageAccessCapability in Property Details, below, for the possible values of this property. |
} ] | ||
Actions (v1.1+) {} | object read-write |
The Actions property shall contain the available actions for this resource. |
BlockSizeBytes | number (By) read-only (null) |
The value of this property shall be the block size of the file system in bytes. |
Capacity { | object read-write (null) |
The value of this property shall be the capacity allocated to the file system in bytes. See the Capacity schema for details on this property. |
@odata.id | string read-only |
Link to a Capacity resource. See the Links section and the Capacity schema for details. |
} | ||
CapacitySources [ { | array read-write |
This property shall be an array containing entries for all the capacity sources for the file system. Each entry shall provide capacity allocation information from a named resource. |
@odata.id | string read-only |
Link to a CapacitySource resource. See the Links section and the Capacity schema for details. |
} ] | ||
CasePreserved | boolean read-write (null) |
This property shall indicate that the case of file names is preserved by the file system. A value of True shall indicate that case of file names shall be preserved. |
CaseSensitive | boolean read-write (null) |
This property shall indicate that case sensitive file names are supported by the file system. A value of True shall indicate that file names are case sensitive. |
CharacterCodeSet [ { | array read-write |
This property shall be an array containing entries for the character sets or encodings supported by the file system. Each entry shall specify a character set encoding supported by the file system. |
CharacterCodeSet | string (enum) read-write (null) |
The values shall indicate the character code standards supported by the file system. See CharacterCodeSet in Property Details, below, for the possible values of this property. |
} ] | ||
ClusterSizeBytes | number (By) read-write (null) |
This value shall specify the minimum file allocation size imposed by the file system. This minimum allocation size shall be the smallest amount of storage allocated to a file by the file system. Under stress conditions, the file system may allocate storage in amounts smaller than this value. |
Description | string read-only (null) |
This object represents the Description property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
ExportedShares { | object read-only (null) |
This property shall be an array of exported file shares of this file system. Each entry shall define an exported file share of this file system. Contains a link to a resource. |
@odata.id | string read-only |
Link to Collection of FileShare. See the FileShare schema for details. |
} | ||
Id | string read-only |
This property represents an identifier for the resource. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
Identifiers (v1.1.1+) [ { | array read-only |
This property shall contain a list of all known durable names for this file system. |
read-write |
See the http://redfish.dmtf.org/schemas/v1/Resource.json#/definitions/Identifier schema for details. | |
} ] | ||
ImportedShares (v1.0.1+) [ { | array read-only |
The value shall be an array of imported file shares. |
@odata.id | string read-only |
Link to a FileShare resource. See the Links section and the FileShare schema for details. |
} ] | ||
Links { | object read-only |
This property shall contain links to other resources that are related to this resource. |
ClassOfService { | object read-only (null) |
This value shall be a link to the ClassOfService for this file system. See the ClassOfService schema for details on this property. |
@odata.id | string read-only |
Link to a ClassOfService resource. See the Links section and the ClassOfService schema for details. |
} | ||
Oem {} | object read-write |
This object represents the Oem property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. See the Resource schema for details on this property. |
ReplicaCollection [ { | array read-only |
This property shall be an array of links to replicas for this file system. Each entry shall be a link to a replica for this file system. |
@odata.id | string read-only |
Link to another FileSystem resource. |
} ] | ||
ReplicaCollection@odata.count | number read-only |
The value of this property shall be an integer representing the number of items in a collection. |
} | ||
LowSpaceWarningThresholdPercents [ ] | array (%) (number, null) read-write |
This property shall be an array containing entries for the percentages of file system capacity at which low space warning events are be issued. A LOW_SPACE_THRESHOLD_WARNING event shall be triggered each time the remaining file system capacity value becomes less than one of the values in the array. The following shall be true: Across all CapacitySources entries, percent = (SUM(AllocatedBytes) - SUM(ConsumedBytes))/SUM(AllocatedBytes) |
MaxFileNameLengthBytes | number (By) read-write (null) |
If specified, this value shall specify the maximum length of a file name within the file system. |
Name | string read-only |
This object represents the Name property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. The value of this string shall be of the format for the reserved word Name. |
Oem {} | object read-write |
The value of this string shall be of the format for the reserved word Oem. See the Resource schema for details on this property. |
RemainingCapacity { | object read-only (null) |
The value of this property shall be the remaining capacity allocated to the file system in bytes. See the Capacity schema for details on this property. |
@odata.id | string read-only |
Link to a Capacity resource. See the Links section and the Capacity schema for details. |
} | ||
RemainingCapacityPercent (v1.1+) | number read-only (null) |
If present, this value shall return {[(SUM(AllocatedBytes) - SUM(ConsumedBytes)]/SUM(AllocatedBytes)}*100 represented as an integer value. |
ReplicaInfo | read-write (null) |
See the http://redfish.dmtf.org/schemas/swordfish/v1/StorageReplicaInfo.json#/definitions/ReplicaInfo schema for details. |
The values shall indicate the character code standards supported by the file system.
string | Description |
---|---|
ASCII | This value shall indicate that the ASCII character encoding is supported by the file system. |
ExtendedUNIXCode | This value shall indicate that Extended Unix Code character encoding is supported by the file system. |
ISO2022 | This value shall indicate that ISO-2022 character encoding is supported by the file system. |
ISO8859_1 | This value shall indicate that ISO-8859-1 character encoding is supported by the file system. |
UCS_2 | This value shall indicate that the UCS-2 character encoding is supported by the file system. |
UTF_16 | This value shall indicate that the UTF-16 character encoding is supported by the file system. |
UTF_8 | This value shall indicate that the UTF-8 character encoding is supported by the file system. |
Unicode | This value shall indicate that Unicode characer encoding is supported by the file system. |
StorageAccessCapability enumeration literals may be used to describe abilities to read or write storage.
string | Description |
---|---|
Append | This enumeration literal shall indicate that the storage may be written only to append. |
Execute | This value shall indicate that Execute access is allowed by the file share. |
Read | This enumeration literal shall indicate that the storage may be read. |
Streaming | This enumeration literal shall indicate that the storage may be read sequentially. |
Write | This enumeration literal shall indicate that the storage may be written multiple times. |
WriteOnce | This enumeration literal shall indicate that the storage may be written only once. |
Description | string read-only (null) |
This object represents the Description property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
Members [ { | array read-only |
This property shall contain references to the members of this FileSystem collection. |
@odata.id | string read-only |
Link to a FileSystem resource. See the Links section and the FileSystem schema for details. |
} ] | ||
Name | string read-only |
This object represents the Name property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. The value of this string shall be of the format for the reserved word Name. |
Oem {} | object read-write |
The value of this string shall be of the format for the reserved word Oem. See the Resource schema for details on this property. |
Description | string read-only (null) |
This object represents the Description property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
Members [ { | array read-write |
The value of each member entry shall reference a StorageService resource. |
@odata.id | string read-only |
Link to a StorageService resource. See the Links section and the StorageService schema for details. |
} ] | ||
Name | string read-only |
This object represents the Name property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. The value of this string shall be of the format for the reserved word Name. |
Oem {} | object read-write |
The value of this string shall be of the format for the reserved word Oem. See the Resource schema for details on this property. |
An IO connectivity service option may be used to specify the characteristics of storage connectivity.
AccessProtocols [ { | array read-write |
The Enumeration Literal shall specify the Access protocol for this service option. NOTE: If multiple protocols are specified, the corresponding MaxSupportedIOPS governs the max achieved across all protocol uses. This may be less than the sum of the individual max values, which may be specified by individual Line of Service entries. |
Protocol | string (enum) read-write (null) |
See Protocol in Property Details, below, for the possible values of this property. |
} ] | ||
Description | string read-only (null) |
This object represents the Description property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
Id | string read-only |
This property represents an identifier for the resource. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
MaxBytesPerSecond (v1.1+) | number (By/s) read-write (null) |
The value shall be the maximum bytes per second that a connection can support. |
MaxIOPS (v1.1+) | number ([IO]/s) read-write (null) |
The value shall be the maximum IOs per second that the connection shall allow for the selected access protocol. |
Name | string read-only |
This object represents the Name property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. The value of this string shall be of the format for the reserved word Name. |
Oem {} | object read-write |
The value of this string shall be of the format for the reserved word Oem. See the Resource schema for details on this property. |
string | Description |
---|---|
AHCI | This value shall mean that this device conforms to the Intel Advanced Host Controller Interface Specification. |
FC | This value shall mean that this device conforms to the T11 Fibre Channel Physical and Signaling Interface Specification. |
FCP | This enumeration literal shall indicate the INCITS 481: Information technology - Fibre Channel Protocol for SCSI. The Fibre Channel SCSI Protocol. |
FCoE | This value shall mean that this device conforms to the T11 FC-BB-5 Specification. |
FICON | This enumeration literal shall indicate the (ANSI FC-SB-3 Single-Byte Command Code Sets-3 Mapping Protocol for the Fibre Channel(FC) protocol. FICON (FIbre CONnection) is the IBM proprietary name for this protocol. |
FTP | This value shall mean that this device conforms to the File Transfer protocol as defined by RFC 114. |
HTTP | This value shall mean that this device conforms to the Hypertext Transfer protocol as defined by RFC 2068 or RFC 2616. |
HTTPS | This value shall mean that this device conforms to the Hypertext Transfer protocol as defined by RFC 2068 or RFC 2616 utilizing Transport Layer Security as specified by RFC 5246 or RFC 6176. |
NFSv3 | This value shall mean that this device conforms to the Network File System protocol as defined by RFC 1813. |
NFSv4 | This value shall mean that this device conforms to the Network File System protocol as defined by RFC 3010 or RFC 5661. |
NVMe | This value shall mean that this device conforms to the Non-Volatile Memory Host Controller Interface Specification Specification. |
NVMeOverFabrics | This value shall mean that this device conforms to the NVM Express over Fabrics Specification. |
PCIe | This value shall mean that this device conforms to the PCI-SIG PCI Express Base Specification only beyond that is uses some vendor proprietary mechanism to communicate. |
RoCE | This value shall mean that this device conforms to the RDMA over Converged Ethernet protocol as defined by the Infiniband Architecture Specification. |
RoCEv2 | This value shall mean that this device conforms to the RDMA over Converged Ethernet version 2 protocol as defined by the Infiniband Architecture Specification. |
SAS | This value shall mean that this device conforms to the T10 SAS Protocol Layer Specification. |
SATA | This value shall mean that this device conforms to the Serial ATA International Organization Serial ATA Specification. |
SFTP | This value shall mean that this device conforms to the File Transfer protocol as defined by RFC 114 utilizing Transport Layer Security as specified by RFC 5246 or RFC 6176. |
SMB | This value shall mean that this device conforms to the Microsoft Server Message Block Protocol. |
UHCI | This value shall mean that this device conforms to the Intel Universal Host Controller Interface Specification, Enhanced Host Controller Interface Specification, or the Extensible Host Controller Interface specification. |
USB | This value shall mean that this device conforms to the USB Implementers Forum Universal Serial Bus Specification. |
iSCSI | This value shall mean that this device conforms to the IETF Internet Small Computer Systems Interface (iSCSI) Specification. |
iWARP | This value shall mean that this device conforms to the iWARP protocol as defined by RFC 5042 utilizing Transport Layer mechanisms as specified by RFC 5043 or RFC 5044. |
Each instance of IOConnectivityLoSCapabilities describes capabilities of the system to support various IO Connectivity service options.
Actions (v1.1+) {} | object read-write |
The Actions property shall contain the available actions for this resource. |
Description | string read-only (null) |
This object represents the Description property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
Id | string read-only |
This property represents an identifier for the resource. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
Identifier | read-write (null) |
See the http://redfish.dmtf.org/schemas/v1/Resource.json#/definitions/Identifier schema for details. |
MaxSupportedBytesPerSecond | number (By/s) read-write (null) |
The value shall be the maximum bytes per second that a connection can support. |
MaxSupportedIOPS (v1.1+) | number ([IO]/s) read-write (null) |
The value shall be the maximum IOPS that a connection can support. |
Name | string read-only |
This object represents the Name property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. The value of this string shall be of the format for the reserved word Name. |
Oem {} | object read-write |
The value of this string shall be of the format for the reserved word Oem. See the Resource schema for details on this property. |
SupportedAccessProtocols [ { | array read-write |
Access protocols supported by this service option. NOTE: SMB+NFS* requires that SMB and at least one of NFSv3 or NFXv4 are also selected, (i.e. {'SMB', 'NFSv4', 'SMB+NFS*'}). |
Protocol | string (enum) read-write (null) |
See Protocol in Property Details, below, for the possible values of this property. |
} ] | ||
SupportedLinesOfService [ { | array read-write |
The collection shall contain known and supported IOConnectivityLinesOfService. |
@odata.id | string read-only |
Link to a IOConnectivityLineOfService resource. See the Links section and the IOConnectivityLineOfService schema for details. |
} ] |
string | Description |
---|---|
AHCI | This value shall mean that this device conforms to the Intel Advanced Host Controller Interface Specification. |
FC | This value shall mean that this device conforms to the T11 Fibre Channel Physical and Signaling Interface Specification. |
FCP | This enumeration literal shall indicate the INCITS 481: Information technology - Fibre Channel Protocol for SCSI. The Fibre Channel SCSI Protocol. |
FCoE | This value shall mean that this device conforms to the T11 FC-BB-5 Specification. |
FICON | This enumeration literal shall indicate the (ANSI FC-SB-3 Single-Byte Command Code Sets-3 Mapping Protocol for the Fibre Channel(FC) protocol. FICON (FIbre CONnection) is the IBM proprietary name for this protocol. |
FTP | This value shall mean that this device conforms to the File Transfer protocol as defined by RFC 114. |
HTTP | This value shall mean that this device conforms to the Hypertext Transfer protocol as defined by RFC 2068 or RFC 2616. |
HTTPS | This value shall mean that this device conforms to the Hypertext Transfer protocol as defined by RFC 2068 or RFC 2616 utilizing Transport Layer Security as specified by RFC 5246 or RFC 6176. |
NFSv3 | This value shall mean that this device conforms to the Network File System protocol as defined by RFC 1813. |
NFSv4 | This value shall mean that this device conforms to the Network File System protocol as defined by RFC 3010 or RFC 5661. |
NVMe | This value shall mean that this device conforms to the Non-Volatile Memory Host Controller Interface Specification Specification. |
NVMeOverFabrics | This value shall mean that this device conforms to the NVM Express over Fabrics Specification. |
PCIe | This value shall mean that this device conforms to the PCI-SIG PCI Express Base Specification only beyond that is uses some vendor proprietary mechanism to communicate. |
RoCE | This value shall mean that this device conforms to the RDMA over Converged Ethernet protocol as defined by the Infiniband Architecture Specification. |
RoCEv2 | This value shall mean that this device conforms to the RDMA over Converged Ethernet version 2 protocol as defined by the Infiniband Architecture Specification. |
SAS | This value shall mean that this device conforms to the T10 SAS Protocol Layer Specification. |
SATA | This value shall mean that this device conforms to the Serial ATA International Organization Serial ATA Specification. |
SFTP | This value shall mean that this device conforms to the File Transfer protocol as defined by RFC 114 utilizing Transport Layer Security as specified by RFC 5246 or RFC 6176. |
SMB | This value shall mean that this device conforms to the Microsoft Server Message Block Protocol. |
UHCI | This value shall mean that this device conforms to the Intel Universal Host Controller Interface Specification, Enhanced Host Controller Interface Specification, or the Extensible Host Controller Interface specification. |
USB | This value shall mean that this device conforms to the USB Implementers Forum Universal Serial Bus Specification. |
iSCSI | This value shall mean that this device conforms to the IETF Internet Small Computer Systems Interface (iSCSI) Specification. |
iWARP | This value shall mean that this device conforms to the iWARP protocol as defined by RFC 5042 utilizing Transport Layer mechanisms as specified by RFC 5043 or RFC 5044. |
This structure may be used to define a service option related to IO performance.
AverageIOOperationLatencyMicroseconds | number (us) read-write (null) |
The value shall be the expected average IO latency in microseconds calculated over sample periods (see SamplePeriodSeconds). |
Description | string read-only (null) |
This object represents the Description property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
IOOperationsPerSecondIsLimited | boolean read-write (null) |
If true, the system should not allow IOPS to exceed MaxIoOperationsPerSecondPerTerabyte * VolumeSize. Otherwise, the system shall not enforce a limit. The default value for this property is false. |
IOWorkload { | object read-write (null) |
The value shall be a description of the expected workload. The workload provides the context in which the values of MaxIOOperationsPerSecondPerTerabyte and AverageIOOperationLatencyMicroseconds are expected to be achieveable. See the IOPerformanceLoSCapabilities schema for details on this property. |
@odata.id | string read-only |
Link to a IOWorkload resource. See the Links section and the IOPerformanceLoSCapabilities schema for details. |
} | ||
Id | string read-only |
This property represents an identifier for the resource. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
MaxIOOperationsPerSecondPerTerabyte | number (1/s/TBy) read-write (null) |
The value shall be the amount of IOPS a volume of a given committed size in Terabytes can support. This IOPS density value is useful as a metric that is independent of capacity. Cost is a function of this value and the AverageIOOperationLatencyMicroseconds. |
Name | string read-only |
This object represents the Name property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. The value of this string shall be of the format for the reserved word Name. |
Oem {} | object read-write |
The value of this string shall be of the format for the reserved word Oem. See the Resource schema for details on this property. |
SamplePeriod | string read-write (null) |
The value shall be an ISO 8601 duration specifying the sampling period over which average values are calculated. |
Each instance of IOPerformanceLoSCapabilities shall describe the capabilities of the system to support various IO performance service options.
Actions (v1.1+) {} | object read-write |
The Actions property shall contain the available actions for this resource. |
Description | string read-only (null) |
This object represents the Description property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
IOLimitingIsSupported | boolean read-write (null) |
If true, the system should limit IOPS to MaxIOOperationsPerSecondPerTerabyte * (Volume Size in Terabytes). Otherwise, the system shall not inforce a limit. The default value for this property is false. |
Id | string read-only |
This property represents an identifier for the resource. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
Identifier | read-write (null) |
See the http://redfish.dmtf.org/schemas/v1/Resource.json#/definitions/Identifier schema for details. |
MaxSamplePeriod | string (s) read-write (null) |
The value shall be an ISO 8601 duration specifying the maximum sampling period over which average values are calculated. |
MinSamplePeriod | string (s) read-write (null) |
The value shall be an ISO 8601 duration specifying the minimum sampling period over which average values are calculated. |
MinSupportedIoOperationLatencyMicroseconds | number (us) read-write (null) |
The value shall be the minimum supported average IO latency in microseconds calculated over the SamplePeriod |
Name | string read-only |
This object represents the Name property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. The value of this string shall be of the format for the reserved word Name. |
Oem {} | object read-write |
The value of this string shall be of the format for the reserved word Oem. See the Resource schema for details on this property. |
SupportedIOWorkloads [ { | array read-write |
The value shall be a collection of supported workloads. |
Components [ { | array read-write |
The value shall be an array of IO workload component descriptions. |
AverageIOBytes | number (By) read-write (null) |
The value shall be the expected average I/O size. |
Duration | string (s) read-write (null) |
The value of each entry shall be an ISO 8601 duration that shall specify the expected length of time that this component is applied to the workload. This attribute shall be specified if a schedule is specified and otherwise shall not be specified. |
IOAccessPattern | string (enum) read-write (null) |
The enumeration literal shall be the expected access pattern. See IOAccessPattern in Property Details, below, for the possible values of this property. |
PercentOfData | number (%) read-write (null) |
The value shall be the expected percent of the data referenced by the workload that is covered by this component. |
PercentOfIOPS | number (%) read-write (null) |
The value shall be the expected percent of the total IOPS for this workload that is covered by this component |
Schedule | read-write (null) |
See the http://redfish.dmtf.org/schemas/swordfish/v1/Schedule.json#/definitions/Schedule schema for details. |
} ] | ||
Name | string read-write (null) |
The value shall be a name of the workload. It should be constructed as OrgID:WorkloadID. Examples: ACME:DSS, ACME:DSS-REP, ACME:Exchange, ACME:OLTP, ACME:OLTP-REPA. An organization may define a set of well known workloads. |
} ] | ||
SupportedLinesOfService [ { | array read-write |
The value shall be a collection supported IO performance service options. |
@odata.id | string read-only |
Link to a IOPerformanceLineOfService resource. See the Links section and the IOPerformanceLineOfService schema for details. |
} ] |
The enumeration literal shall be the expected access pattern.
string | Description |
---|---|
RandomReadAgain | Use of this enumeration literal shall indicate an access pattern of random reads of cached data. |
RandomReadNew | Use of this enumeration literal shall indicate an access pattern of random reads of uncached data. |
ReadWrite | Use of this enumeration literal shall indicate a Uniform distribution of reads and writes. |
SequentialRead | Use of this enumeration literal shall indicate a sequential read pattern of access. |
SequentialWrite | Use of this enumeration literal shall indicate a sequential write pattern of access. |
The primary purposes of the collection shall be to govern access to the storage by clients or to add service requirements for the members of the collection. Access to the collected storage by a specified set of hosts shall be made available or unavailable atomically. Requirements specified by the class of service shall be satisfied by each collected element to which they apply. The storage group may contain: block, file, or object storage; local storage system access points through which the collection is made available; and hosts, or host access points to which the collection is made available.
AccessState | string (enum) read-write (null) |
The value of this property shall describe the access characteristics of this storage group. All associated logical units through all aggregated ports shall share this access state. See AccessState in Property Details, below, for the possible values of this property. |
Actions { | object read-only |
The Actions property shall contain the available actions for this resource. |
#StorageGroup.ExposeVolumes {} | object read-write |
Exposes the storage of this group via the target endpoints named in the ServerEndpointGroups to the initiator endpoints named in the ClientEndpointGroups. The property VolumesAreExposed shall be set to true when this action is completed. For more information, see the Action Details section below. |
#StorageGroup.HideVolumes {} | object read-write |
Hide the storage of this group from the initiator endpoints named in the ClientEndpointGroups. The property VolumesAreExposed shall be set to false when this action is completed. For more information, see the Action Details section below. |
} | ||
ClientEndpointGroups [ { | array read-write |
An array of references to groups of client-side endpoints that may be used to make requests to the storage exposed by this StorageGroup. If null, the implementation may allow access to the storage via any client-side endpoint. If empty, the implementation shall not allow access to the storage via any client-side endpoint. |
@odata.id | string read-only |
Link to a EndpointGroup resource. See the Links section and the EndpointGroup schema for details. |
} ] | ||
Description | string read-only (null) |
This object represents the Description property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
Id | string read-only |
This property represents an identifier for the resource. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
Identifier | read-write (null) |
See the http://redfish.dmtf.org/schemas/v1/Resource.json#/definitions/Identifier schema for details. |
Links { | object read-only |
This structure shall contain references to resources that are not contained within this resource. |
ChildStorageGroups [ { | array read-write |
An array of references to StorageGroups are incorporated into this StorageGroup |
@odata.id | string read-only |
Link to another StorageGroup resource. |
} ] | ||
ChildStorageGroups@odata.count | number read-only |
The value of this property shall be an integer representing the number of items in a collection. |
ClassOfService { | object read-write (null) |
The ClassOfService that all storage in this StorageGroup conforms to. See the ClassOfService schema for details on this property. |
@odata.id | string read-only |
Link to a ClassOfService resource. See the Links section and the ClassOfService schema for details. |
} | ||
Oem {} | object read-write |
This object represents the Oem property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. See the Resource schema for details on this property. |
ParentStorageGroups [ { | array read-only |
An array of references to StorageGroups that incorporate this StorageGroup |
@odata.id | string read-only |
Link to another StorageGroup resource. |
} ] | ||
ParentStorageGroups@odata.count | number read-only |
The value of this property shall be an integer representing the number of items in a collection. |
} | ||
MembersAreConsistent | boolean read-write (null) |
The value of this property shall be set to true if all members are in a consistent state. The default value for this property is false. |
Name | string read-only |
This object represents the Name property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. The value of this string shall be of the format for the reserved word Name. |
Oem {} | object read-write |
The value of this string shall be of the format for the reserved word Oem. See the Resource schema for details on this property. |
ReplicaInfos [ { | array read-write |
This property shall describe the replication relationship between this storage group and a corresponding source and/or target storage group. |
read-write (null) |
See the http://redfish.dmtf.org/schemas/swordfish/v1/StorageReplicaInfo.json#/definitions/ReplicaInfo schema for details. | |
} ] | ||
ServerEndpointGroups [ { | array read-write |
An array of references to groups of server-side endpoints that may be used to make requests to the storage exposed by this storage group. If null, the implementation may allow access to the storage via any server-side endpoint. If empty, the implementation shall not allow access to the storage via any server-side endpoint. |
@odata.id | string read-only |
Link to a EndpointGroup resource. See the Links section and the EndpointGroup schema for details. |
} ] | ||
Status {} | object read-write (null) |
This type shall contain any status or health properties of a resource. See the Resource schema for details on this property. |
Volumes [ { | array read-write |
An array of references to volumes managed by this storage group. |
@odata.id | string read-only |
Link to a Volume resource. See the Links section and the Volume schema for details. |
} ] | ||
VolumesAreExposed | boolean read-write (null) |
The value of this property shall be set to true if storage volumes are exposed to the paths defined by the client and server endpoints. The default value for this property is false. |
Exposes the storage of this group via the target endpoints named in the ServerEndpointGroups to the initiator endpoints named in the ClientEndpointGroups. The property VolumesAreExposed shall be set to true when this action is completed.
(This action takes no parameters.)
Hide the storage of this group from the initiator endpoints named in the ClientEndpointGroups. The property VolumesAreExposed shall be set to false when this action is completed.
(This action takes no parameters.)
The value of this property shall describe the access characteristics of this storage group. All associated logical units through all aggregated ports shall share this access state.
string | Description |
---|---|
NonOptimized | In the context of this enumeration literal, each endpoint shall be in an Active/NonOptimized state. |
Optimized | In the context of this enumeration literal, each endpoint shall be in an Active/Optimized state. |
Standby | In the context of this enumeration literal, each endpoint shall be in a Standby state. |
Transitioning | In the context of this enumeration literal, at least one endpoint shall be transitioning to a new AccesState. |
Unavailable | In the context of this enumeration literal, each endpoint shall be in an unavailable state. |
Description | string read-only (null) |
This object represents the Description property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
Members [ { | array read-only |
The value of each member entry shall reference a StorageGroup resource. |
@odata.id | string read-only |
Link to a StorageGroup resource. See the Links section and the StorageGroup schema for details. |
} ] | ||
Name | string read-only |
This object represents the Name property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. The value of this string shall be of the format for the reserved word Name. |
Oem {} | object read-write |
The value of this string shall be of the format for the reserved word Oem. See the Resource schema for details on this property. |
A container of data storage capable of providing capacity conforming to one of its supported classes of service. The storage pool does not support IO to its data storage.
AllocatedPools { | object read-only (null) |
The value of this property shall contain a reference to the collection of storage pools allocated from this storage pool. Contains a link to a resource. |
@odata.id | string read-only |
Link to Collection of StoragePool. See the StoragePool schema for details. |
} | ||
AllocatedVolumes { | object read-only (null) |
The value of this property shall contain a reference to the collection of volumes allocated from this storage pool. Contains a link to a resource. |
@odata.id | string read-only |
Link to Collection of Volume. See the Volume schema for details. |
} | ||
BlockSizeBytes (deprecated v1.1) | number (By) read-only (null) |
Maximum size in bytes of the blocks which form this Volume. If the block size is variable, then the maximum block size in bytes should be specified. If the block size is unknown or if a block concept is not valid (for example, with Memory), enter a 1. Deprecated v1.1+. This property has been Deprecated in favor of StoragePool.v1_1_1.StoragePool.MaxBlockSizeBytes |
Capacity { | object read-only (null) |
The value of this property shall provide an information about the actual utilization of the capacity within this storage pool. See the Capacity schema for details on this property. |
@odata.id | string read-only |
Link to a Capacity resource. See the Links section and the Capacity schema for details. |
} | ||
CapacitySources [ { | array read-only |
Fully or partially consumed storage from a source resource. Each entry shall provide capacity allocation data from a named source resource. |
@odata.id | string read-only |
Link to a CapacitySource resource. See the Links section and the Capacity schema for details. |
} ] | ||
ClassesOfService { | object read-write (null) |
This property shall contain references to all classes of service supported by this storage pool. Capacity allocated from this storage pool shall conform to one of the referenced classes of service. Contains a link to a resource. |
@odata.id | string read-only |
Link to Collection of ClassOfService. See the ClassOfService schema for details. |
} | ||
Description | string read-only (null) |
This object represents the Description property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
Id | string read-only |
This property represents an identifier for the resource. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
Identifier | read-write (null) |
See the http://redfish.dmtf.org/schemas/v1/Resource.json#/definitions/Identifier schema for details. |
Links { | object read-only |
This structure shall contain references to resources that are not contained within this resource. |
DefaultClassOfService { | object read-write (null) |
If present, this property shall reference the default class of service for entities allocated from this storage pool. If the ClassesOfService collection is not empty, then the value of this property shall be one of its entries. If not present, the default class of service of the containing StorageService entity shall be used. See the ClassOfService schema for details on this property. |
@odata.id | string read-only |
Link to a ClassOfService resource. See the Links section and the ClassOfService schema for details. |
} | ||
Oem {} | object read-write |
This object represents the Oem property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. See the Resource schema for details on this property. |
} | ||
LowSpaceWarningThresholdPercents [ ] | array (%) (number, null) read-write |
Each time the following value is less than one of the values in the array the LOW_SPACE_THRESHOLD_WARNING event shall be triggered: Across all CapacitySources entries, percent = (SUM(AllocatedBytes) - SUM(ConsumedBytes))/SUM(AllocatedBytes). |
MaxBlockSizeBytes (v1.1.1+) | number (By) read-only (null) |
If present, the value is the maximum block size of an allocated resource. If the block size is unknown or if a block concept is not valid (for example, with Memory), this property shall be NULL. |
Name | string read-only |
This object represents the Name property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. The value of this string shall be of the format for the reserved word Name. |
Oem {} | object read-write |
The value of this string shall be of the format for the reserved word Oem. See the Resource schema for details on this property. |
RemainingCapacityPercent (v1.1+) | number read-only (null) |
If present, this value shall return {[(SUM(AllocatedBytes) - SUM(ConsumedBytes)]/SUM(AllocatedBytes)}*100 represented as an integer value. |
Status {} | object read-write (null) |
This type shall contain any status or health properties of a resource. See the Resource schema for details on this property. |
Description | string read-only (null) |
This object represents the Description property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
Members [ { | array read-only |
The value of each member entry shall reference a StoragePool resource. |
@odata.id | string read-only |
Link to a StoragePool resource. See the Links section and the StoragePool schema for details. |
} ] | ||
Name | string read-only |
This object represents the Name property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. The value of this string shall be of the format for the reserved word Name. |
Oem {} | object read-write |
The value of this string shall be of the format for the reserved word Oem. See the Resource schema for details on this property. |
Collection of resources that the system can make available to one or more host systems. The collection can contain: block, file, or object storage; local system access points through which the collection is made available; hosts, or host access points to which the collection is made available.
Actions { | object read-only |
The Actions property shall contain the available actions for this resource. |
#StorageService.SetEncryptionKey {} | object read-write |
This defines the name of the custom action supported on this resource. For more information, see the Action Details section below. |
} | ||
ClassesOfService { | object read-write (null) |
The value of each enty in the array shall reference a ClassOfService supported by this service. Contains a link to a resource. |
@odata.id | string read-only |
Link to Collection of ClassOfService. See the ClassOfService schema for details. |
} | ||
ClientEndpointGroups { | object read-write (null) |
The value of each entry in the array shall reference an EndpointGroup. Contains a link to a resource. |
@odata.id | string read-only |
Link to Collection of EndpointGroup. See the EndpointGroup schema for details. |
} | ||
Description | string read-only (null) |
This object represents the Description property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
Drives { | object read-only |
A collection that indicates all the drives managed by this storage service. Contains a link to a resource. |
@odata.id | string read-only |
Link to Collection of Drive. See the Drive schema for details. |
} | ||
EndpointGroups { | object read-write (null) |
The value of each entry in the array shall reference an EndpointGroup. Contains a link to a resource. |
@odata.id | string read-only |
Link to Collection of EndpointGroup. See the EndpointGroup schema for details. |
} | ||
Endpoints { | object read-only (null) |
The value of each enty in the array shall reference an Endpoint managed by this service. Contains a link to a resource. |
@odata.id | string read-only |
Link to Collection of Endpoint. See the Endpoint schema for details. |
} | ||
FileSystems { | object read-write |
An array of references to FileSystems managed by this storage service. Contains a link to a resource. |
@odata.id | string read-only |
Link to Collection of FileSystem. See the FileSystem schema for details. |
} | ||
Id | string read-only |
This property represents an identifier for the resource. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
Identifier | read-write (null) |
See the http://redfish.dmtf.org/schemas/v1/Resource.json#/definitions/Identifier schema for details. |
Links { | object read-only |
Contains links to other resources that are related to this resource. |
DataProtectionLoSCapabilities { | object read-write (null) |
The value shall reference the data protection capabilities of this service. See the DataProtectionLoSCapabilities schema for details on this property. |
@odata.id | string read-only |
Link to a DataProtectionLoSCapabilities resource. See the Links section and the DataProtectionLoSCapabilities schema for details. |
} | ||
DataSecurityLoSCapabilities { | object read-write (null) |
The value shall reference the data security capabilities of this service. See the DataSecurityLoSCapabilities schema for details on this property. |
@odata.id | string read-only |
Link to a DataSecurityLoSCapabilities resource. See the Links section and the DataSecurityLoSCapabilities schema for details. |
} | ||
DataStorageLoSCapabilities { | object read-write (null) |
The value shall reference the data storage capabilities of this service. See the DataStorageLoSCapabilities schema for details on this property. |
@odata.id | string read-only |
Link to a DataStorageLoSCapabilities resource. See the Links section and the DataStorageLoSCapabilities schema for details. |
} | ||
DefaultClassOfService { | object read-write (null) |
If present, this property shall reference the default class of service for entities allocated by this storage service. This default may be overridden by the DefaultClassOfService property values within contained StoragePools. See the ClassOfService schema for details on this property. |
@odata.id | string read-only |
Link to a ClassOfService resource. See the Links section and the ClassOfService schema for details. |
} | ||
HostingSystem | read-write (null) |
The value shall reference the ComputerSystem or StorageController that hosts this service. |
IOConnectivityLoSCapabilities { | object read-write (null) |
The value shall reference the IO connectivity capabilities of this service. See the IOConnectivityLoSCapabilities schema for details on this property. |
@odata.id | string read-only |
Link to a IOConnectivityLoSCapabilities resource. See the Links section and the IOConnectivityLoSCapabilities schema for details. |
} | ||
IOPerformanceLoSCapabilities { | object read-write (null) |
The value shall reference the IO performance capabilities of this service. See the IOPerformanceLoSCapabilities schema for details on this property. |
@odata.id | string read-only |
Link to a IOPerformanceLoSCapabilities resource. See the Links section and the IOPerformanceLoSCapabilities schema for details. |
} | ||
Oem {} | object read-write |
This object represents the Oem property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. See the Resource schema for details on this property. |
} | ||
Name | string read-only |
This object represents the Name property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. The value of this string shall be of the format for the reserved word Name. |
Oem {} | object read-write |
The value of this string shall be of the format for the reserved word Oem. See the Resource schema for details on this property. |
Redundancy [ { | array read-only |
Redundancy information for the storage subsystem |
@odata.id | string read-only |
The value of this property shall be the unique identifier for the resource and it shall be of the form defined in the Redfish specification. |
} ] | ||
ServerEndpointGroups { | object read-write (null) |
The value of each entry in the array shall reference a EndpointGroup. Contains a link to a resource. |
@odata.id | string read-only |
Link to Collection of EndpointGroup. See the EndpointGroup schema for details. |
} | ||
Status {} | object read-write (null) |
This type shall contain any status or health properties of a resource. See the Resource schema for details on this property. |
StorageGroups { | object read-only (null) |
The value of each enty in the array shall reference a StorageGroup. Contains a link to a resource. |
@odata.id | string read-only |
Link to Collection of StorageGroup. See the StorageGroup schema for details. |
} | ||
StoragePools { | object read-only |
An array of references to StoragePools. Contains a link to a resource. |
@odata.id | string read-only |
Link to Collection of StoragePool. See the StoragePool schema for details. |
} | ||
StorageSubsystems { | object read-only |
The value shall be a link to a collection of type StorageCollection having members that represent storage subsystems managed by this storage service. |
@odata.id | string read-only |
The value of this property shall be the unique identifier for the resource and it shall be of the form defined in the Redfish specification. |
} | ||
Volumes { | object read-write |
An array of references to Volumes managed by this storage service. Contains a link to a resource. |
@odata.id | string read-only |
Link to Collection of Volume. See the Volume schema for details. |
} |
This defines the name of the custom action supported on this resource.
The following table shows the parameters for the action which are included in the POST body to the URI shown in the "Target" property of the Action.
{ | ||
EncryptionKey | string read-write |
This defines the property name for the action. |
} |
Description | string read-only (null) |
This object represents the Description property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
Members [ { | array read-only |
The value of each member entry shall reference a StorageService resource. |
@odata.id | string read-only |
Link to a StorageService resource. See the Links section and the StorageService schema for details. |
} ] | ||
Name | string read-only |
This object represents the Name property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. The value of this string shall be of the format for the reserved word Name. |
Oem {} | object read-write |
The value of this string shall be of the format for the reserved word Oem. See the Resource schema for details on this property. |
Description | string read-only (null) |
This object represents the Description property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
Members [ { | array read-only |
The value of each member entry shall reference a ComputerSystem resource that shall have a HostingRoles entry with a value of 'StorageServer'. |
@odata.id | string read-only |
The value of this property shall be the unique identifier for the resource and it shall be of the form defined in the Redfish specification. |
} ] | ||
Name | string read-only |
This object represents the Name property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. The value of this string shall be of the format for the reserved word Name. |
Oem {} | object read-write |
The value of this string shall be of the format for the reserved word Oem. See the Resource schema for details on this property. |
This resource shall be used to represent a volume, virtual disk, logical disk, LUN, or other logical storage for a Redfish implementation.
AccessCapabilities (v1.1+) [ { | array read-write |
Each entry shall specify a current storage access capability. |
StorageAccessCapability | string (enum) read-write (null) |
StorageAccessCapability enumeration literals may be used to describe abilities to read or write storage. See StorageAccessCapability in Property Details, below, for the possible values of this property. |
} ] | ||
Actions { | object read-write |
The Actions property shall contain the available actions for this resource. |
#Volume.CheckConsistency {} | object read-write |
This defines the name of the custom action supported on this resource. For more information, see the Action Details section below. |
#Volume.Initialize {} | object read-write |
This defines the name of the custom action supported on this resource. If InitializeType is not specified in the request body, the InitializeType should be Fast. For more information, see the Action Details section below. |
} | ||
AllocatedPools { | object read-only (null) |
The value of this property shall contain references to all storage pools allocated from this volume. Contains a link to a resource. |
@odata.id | string read-only |
Link to Collection of StoragePool. See the StoragePool schema for details. |
} | ||
BlockSizeBytes | number (By) read-only (null) |
This property shall contain size of the smallest addressable unit of the associated volume. |
Capacity { | object read-write (null) |
Information about the utilization of capacity allocated to this storage volume. See the Capacity schema for details on this property. |
@odata.id | string read-only |
Link to a Capacity resource. See the Links section and the Capacity schema for details. |
} | ||
CapacityBytes | number (By) read-only (null) |
This property shall contain the size in bytes of the associated volume. |
CapacitySources (v1.1+) [ { | array read-write |
Fully or partially consumed storage from a source resource. Each entry provides capacity allocation information from a named source resource. |
@odata.id | string read-only |
Link to a CapacitySource resource. See the Links section and the Capacity schema for details. |
} ] | ||
Description | string read-only (null) |
This object represents the Description property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
Encrypted | boolean read-write (null) |
This property shall contain a boolean indicator if the Volume is currently utilizing encryption or not. |
EncryptionTypes [ { | array read-write |
This property shall contain the types of encryption used by this Volume. |
EncryptionTypes | string (enum) read-write |
See EncryptionTypes in Property Details, below, for the possible values of this property. |
} ] | ||
IOStatistics | read-write (null) |
See the http://redfish.dmtf.org/schemas/swordfish/v1/IOStatistics.json#/definitions/IOStatistics schema for details. |
Id | string read-only |
This property represents an identifier for the resource. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
Identifiers [ { | array read-write |
This property shall contain a list of all known durable names for the associated volume. |
read-write |
See the http://redfish.dmtf.org/schemas/v1/Resource.json#/definitions/Identifier schema for details. | |
} ] | ||
Links { | object read-write |
The Links property, as described by the Redfish Specification, shall contain references to resources that are related to, but not contained by (subordinate to), this resource. |
ClassOfService (v1.1+) { | object read-only (null) |
This property shall contain a reference to the ClassOfService that this storage volume conforms to. See the ClassOfService schema for details on this property. |
@odata.id | string read-only |
Link to a ClassOfService resource. See the Links section and the ClassOfService schema for details. |
} | ||
DedicatedSpareDrives (v1.2+) [ { | array read-only |
The value of this property shall be a reference to the resources that this volume is associated with and shall reference resources of type Drive. This property shall only contain references to Drive entities which are currently assigned as a dedicated spare and are able to support this Volume. |
@odata.id | string read-only |
The value of this property shall be the unique identifier for the resource and it shall be of the form defined in the Redfish specification. |
} ] | ||
DedicatedSpareDrives@odata.count (v1.2+) | number read-only |
The value of this property shall be an integer representing the number of items in a collection. |
Drives [ { | array read-only |
The value of this property shall be a reference to the resources that this volume is associated with and shall reference resources of type Drive. This property shall only contain references to Drive entities which are currently members of the Volume, not hot spare Drives which are not currently a member of the volume. |
@odata.id | string read-only |
The value of this property shall be the unique identifier for the resource and it shall be of the form defined in the Redfish specification. |
} ] | ||
Drives@odata.count | number read-only |
The value of this property shall be an integer representing the number of items in a collection. |
Oem {} | object read-write |
This object represents the Oem property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. See the Resource schema for details on this property. |
} | ||
LowSpaceWarningThresholdPercents (v1.1+) [ ] | array (%) (number, null) read-write |
Each time the following value is less than one of the values in the array the LOW_SPACE_THRESHOLD_WARNING event shall be triggered: Across all CapacitySources entries, percent = (SUM(AllocatedBytes) - SUM(ConsumedBytes))/SUM(AllocatedBytes). |
Manufacturer (v1.1+) | string read-only (null) |
This property shall contain a value that represents the manufacturer or implementer of the storage volume. |
MaxBlockSizeBytes (v1.1+) | number (By) read-only (null) |
This property shall contain size of the largest addressable unit of this storage volume. |
Model (v1.1+) | string read-only (null) |
The value is assigned by the manufacturer and shall represents a specific storage volume implementation. |
Name | string read-only |
This object represents the Name property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. The value of this string shall be of the format for the reserved word Name. |
Oem {} | object read-write |
The value of this string shall be of the format for the reserved word Oem. See the Resource schema for details on this property. |
Operations [ { | array read-write |
This property shall contain a list of all currently running on the Volume. |
AssociatedTask { | object read-only |
This resource shall be used to represent a task for a Redfish implementation. |
@odata.id | string read-only |
The value of this property shall be the unique identifier for the resource and it shall be of the form defined in the Redfish specification. |
} | ||
OperationName | string read-only (null) |
The name of the operation. |
PercentageComplete | number read-only (null) |
The percentage of the operation that has been completed. |
} ] | ||
OptimumIOSizeBytes | number (By) read-only (null) |
This property shall contain the optimum IO size to use when performing IO on this volume. For logical disks, this is the stripe size. For physical disks, this describes the physical sector size. |
RemainingCapacityPercent (v1.2+) | number read-only (null) |
If present, this value shall return {[(SUM(AllocatedBytes) - SUM(ConsumedBytes)]/SUM(AllocatedBytes)}*100 represented as an integer value. |
ReplicaInfos (v1.1+) [ { | array read-only |
This property shall describe the replica relationship between this storage volume and a corresponding source and/or target volume. |
read-write (null) |
See the http://redfish.dmtf.org/schemas/swordfish/v1/StorageReplicaInfo.json#/definitions/ReplicaInfo schema for details. | |
} ] | ||
Status {} | object read-write |
This type shall contain any status or health properties of a resource. See the Resource schema for details on this property. |
StorageGroups { | object read-only (null) |
The value of this property shall contain references to all storage groups that include this volume. Contains a link to a resource. |
@odata.id | string read-only |
Link to Collection of StorageGroup. See the StorageGroup schema for details. |
} | ||
VolumeType | string (enum) read-only (null) |
This property shall contain the type of the associated Volume. See VolumeType in Property Details, below, for the possible values of this property. |
This defines the name of the custom action supported on this resource.
(This action takes no parameters.)
This defines the name of the custom action supported on this resource. If InitializeType is not specified in the request body, the InitializeType should be Fast.
The following table shows the parameters for the action which are included in the POST body to the URI shown in the "Target" property of the Action.
{ | ||
InitializeType | string (enum) read-write |
This defines the property name for the action. See InitializeType in Property Details, below, for the possible values of this property. |
} |
string | Description |
---|---|
ControllerAssisted | The volume is being encrypted by the storage controller entity. |
NativeDriveEncryption | The volume is utilizing the native drive encryption capabilities of the drive hardware. |
SoftwareAssisted | The volume is being encrypted by software running on the system or the operating system. |
This defines the property name for the action.
string | Description |
---|---|
Fast | The volume is prepared for use quickly, typically by erasing just the beginning and end of the space so that partitioning can be performed. |
Slow | The volume is prepared for use slowly, typically by completely erasing the volume. |
StorageAccessCapability enumeration literals may be used to describe abilities to read or write storage.
string | Description |
---|---|
Append | This enumeration literal shall indicate that the storage may be written only to append. |
Execute | This value shall indicate that Execute access is allowed by the file share. |
Read | This enumeration literal shall indicate that the storage may be read. |
Streaming | This enumeration literal shall indicate that the storage may be read sequentially. |
Write | This enumeration literal shall indicate that the storage may be written multiple times. |
WriteOnce | This enumeration literal shall indicate that the storage may be written only once. |
This property shall contain the type of the associated Volume.
string | Description |
---|---|
Mirrored | The volume is a mirrored device. |
NonRedundant | The volume is a non-redundant storage device. |
RawDevice | The volume is a raw physical device without any RAID or other virtualization applied. |
SpannedMirrors | The volume is a spanned set of mirrored devices. |
SpannedStripesWithParity | The volume is a spanned set of devices which uses parity to retain redundant information. |
StripedWithParity | The volume is a device which uses parity to retain redundant information. |
Description | string read-only (null) |
This object represents the Description property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. |
Members [ { | array read-write |
The value of each member entry shall reference a Volume resource. |
@odata.id | string read-only |
Link to a Volume resource. See the Links section and the Volume schema for details. |
} ] | ||
Name | string read-only |
This object represents the Name property. All values for resources described by this schema shall comply to the requirements as described in the Redfish specification. The value of this string shall be of the format for the reserved word Name. |
Oem {} | object read-write |
The value of this string shall be of the format for the reserved word Oem. See the Resource schema for details on this property. |
