ABSTRACT: The Swordfish Scalable Storage Management API defines a RESTful interface and a standardized data model to provide a scalable, customer-centric interface for managing storage and related data services.
This document has been released and approved by the SNIA. The SNIA believes that the ideas, methodologies and technologies described in this document accurately represent the SNIA goals and are appropriate for widespread distribution. Suggestions for revision should be directed to http://www.snia.org/feedback/.
Copyright (c) 2016 - 2020 SNIA. All rights reserved. All other trademarks or registered trademarks are the property of their respective owners.
The SNIA hereby grants permission for individuals to use this document for personal use only, and for corporations and other business entities to use this document for internal use only (including internal copying, distribution, and display) provided that:
Any text, diagram, chart, table or definition reproduced must be reproduced in its entirety with no alteration, and,
Any document, printed or electronic, in which material from this document (or any portion hereof) is reproduced must acknowledge the SNIA copyright on that material, and must credit the SNIA for granting permission for its reuse.
Other than as explicitly provided above, you may not make any commercial use of this document, or any portion thereof, or distribute this document to third parties. All rights not explicitly granted are expressly reserved to SNIA.
Permission to use this document for purposes other than those enumerated above may be requested by emailing tcmd@snia.org. Please include the identity of the requesting individual and/or company and a brief description of the purpose, nature, and scope of the requested use.
All code fragments, scripts, data tables, and sample code in this SNIA document are made available under the following license:
BSD 3-Clause Software License
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:
Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
Neither the name of The Storage Networking Industry Association (SNIA) nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
The information contained in this publication is subject to change without notice. The SNIA makes no warranty of any kind with regard to this specification, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. The SNIA shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use.
Suggestions for revisions should be directed to http://www.snia.org/feedback/.
The revision history for this specification can be found in Table 1.
Date | Revision | Notes |
---|---|---|
19 September 2016 | 1.0.0 | Initial Release |
12 October 2016 | 1.0.1 | Errata release for general clean up and formatting consistency |
1 November 2016 | 1.0.2 | Errata release to change multiple collections’ types from collections (arrays) to ResourceCollections to conform to Redfish usage guidelines Change multiple collections’ types from collections (arrays) to ResourceCollections to conform to Redfish usage guidelines and move NavigationProperties from Links section. |
24 January 2017 | 1.0.3 | Errata release to move complex types and enum to versioned namespace Schedule schema: add property json schema fix (Swordfish to swordfish) Specification enhancements, multiple areas User’s guide: multiple new use cases and new document section |
Date | Revision | Notes |
---|---|---|
25 April 2017 | 1.0.4 | Errata release with minor updates to schema: move FileShare collection, integrate DMTF and SNIA versions of Volume, fix incorrect property references and update descriptions. Update mockups. User’s guide: Update cross-references. |
3 October 2017 | 1.0.5 | Errata release to include schema simplifications and other lessons from initial implementations, as well as general cleanup of specification. |
13 February 2018 | 1.0.6 | Updated Storage Systems model – added notion of Integrated Service Configuration in addition to (and named) Hosted Service Configuration Added ComplexType common definition section Added/updated common Redfish property definitions Updates to conform to new SNIA templates. |
12 October 2018 | 1.0.7 | Enhanced Spare Capacity Management Model; Deprecated Remaining Capacity Added OpenAPI support: schema references and OpenAPI YAML files Added iSCSI properties for CHAP Event usage enhancements and guidance Volume schema updates – RAID Type enum (deprecating VolumeType usage), add ReplicaTargets Schema updates: Annotations enhancements: Capabilities designations, owning entities, Redfish.Required usage Clarified and updated ClassOfService IsDefault property usage Updated Capabilities location in hierarchy Fix cardinality issue of StorageReplicaInfo usage in StorageGroups and Volume Consolidate Client and Server Endpoint Groups into single Endpoint Group entity (deprecate usage of separate Client Endpoint Group and Server Endpoint Group) Add MappedVolume construct to StorageGroup – adds LUN info and other properties |
8 November 2018 | 1.0.7a | Restored RAIDType property that was missing from 1.0.7 Minor correction to schema versioning |
Date | Revision | Notes |
---|---|---|
22 August 2019 | 1.1.0 | Restructured to add features and profiles Add description of SupportedFeatures usage and requirements Add requirements for subsets of Add language to clarify support for use with and without the class of service (now an optional feature) Added descriptions of support for seamless extension of Redfish Storage model to Swordfish Add updated model diagrams to reflect new model permutations Added descriptions of new constructs (e.g., Consistency Groups) Cleaned up references to Redfish Specification based on latest version Add Status Codes clarification and constraints section |
12 November 2019 | 1.1.0 | Released as Technical Position |
12 November 2019 | 1.1.0a | Released as Corrected Technical Position Formatting fixes – word wrap in pdf doc format to fix truncated lines Consistent object labeling in images (replace drive with disk) Editorial and grammar changes and cleanup to status code guidance section |
24 March 2020 | 1.1.0b | Released as Corrected Technical Position TLS requirements now based on both ISO and SNIA standards Redfish references now based on both ISO and SNIA standards Bibliography added |
16 June 2020 | 1.1.0c | Table numbering and captions |
29 September 2020 | 1.1.0d | Updated references to include latest DMTF Redfish submission and TLS specification Submitted to ISO |
SNIA is actively engaged in expanding and refining the Swordfish specification. The most current revision can be found on the SNIA web site at https://www.snia.org/tech_activities/standards/curr_standards/swordfish.
Current SNIA practice is to make updates and other information available through their web site at http://www.snia.org.
Requests for interpretation, suggestions for improvement and addenda, or defect reports are welcome. They should be sent via the SNIA Feedback Portal at http://www.snia.org/feedback/ or by mail to the Storage Networking Industry Association, 4360 ArrowsWest Drive, Colorado Springs, Colorado 80907, U.S.A.
This document is intended for use by individuals and companies engaged in storage management.
This document is versioned material. Versioned material shall have a three-level revision identifier, comprised of a version number ‘v’, a release number ‘r’ and an errata number ‘e’. Future publications of this document are subject to specific constraints on the scope of change that is permissible from one revision to the next and the degree of interoperability and backward compatibility that should be assumed between products designed to this standard. This versioning policy applies to all SNIA Swordfish versioned materials.
Version Number: Versioned material having version number ‘v’ shall be backwards compatible with all of revisions of that material that have the same version number ‘v’. There is no assurance of interoperability or backward compatibility between revisions of a versioned material with different version numbers.
Release Number: Versioned material with a version number ‘v’ and release number ‘r’ shall be backwards compatible with previous revisions of the material with the same version number, and a lower release number. A minor revision represents a technical change to existing content or an adjustment to the scope of the versioned material. Each minor revision causes the release number to be increased by one.
Errata Number: Versioned material having version number ‘v’, a release number ‘r’, and an errata number ‘e’ should be backwards compatible with previous revisions of the material with the same version number and release number (“errata versions”). An errata revision of versioned material is limited to minor corrections or clarifications of existing versioned material. An errata revision may be backwards incompatible, if the incompatibility is necessary for correct operation of implementations of the versioned material.
The Storage Networking Industry Association (SNIA) is a non-profit organization made up of member companies spanning information technology. A globally recognized and trusted authority, SNIA’s mission is to lead the storage industry in developing and promoting vendor-neutral architectures, standards and educational services that facilitate the efficient management, movement and security of information.
The SNIA Scalable Storage Management Technical Work Group, which developed and reviewed this work in progress, would like to recognize the significant contributions made by the members listed in Table 2:
Member | Representatives (* – prior employer) |
---|---|
Broadcom Inc. | Richelle Ahlvers |
Cisco Systems, Inc. | Krishnakumar Gowravaram |
Dell Inc. | Patrick Boyd George Ericson Sean McGinnis Michael Raineri Rich Roscoe |
Futurewei Inc. | Sean McGinnis* |
Hitachi Data Systems | Eric Hibbard |
Hewlett Packard Enterprise | Jeff Hilland Chris Lionetti John Mendonca Doug Voigt |
Inova Development Inc. | Karl Schopmeyer |
Intel Corporation | Klaudia Jablonska Mariusz Krzywienski Mateusz Mania Slawek Putyrski Paul von Behren |
Microsemi Corporation | Anand Nagarjan |
Member | Representatives (* – prior employer) |
---|---|
Microsoft Corporation | Hector Linares Jim Pinkerton Michael Pizzo Scott Seligman |
NetApp, Inc. | Don Deel Nilesh Maheshwari |
ScienceLogic | Patrick Strick |
VMware, Inc. | Murali Rajagopal |
1. Abstract
2. Scope { .page_break_before }
2.1. Audience Assumptions { .page_break_before }
3. Normative References { .page_break_before }
3.1. Overview
3.2. Approved references
3.3. References under development
3.4. Other references
4. Terms and Definitions { .page_break_before }
4.1. Overview
4.2. Swordfish-specific Terms
4.2.1. Definitions
4.2.2. Symbols and abbreviated terms
4.3. Reference to Redfish terms
4.4. Keywords (normative language terms) { .page_break_before }
5. Swordfish Overview { .page_break_before }
5.1. Introduction
5.2. Relation to Redfish
5.3. Storage System Models
5.4. The ServiceRoot and ServiceContainer entities
5.4.1. Overview
5.4.2. The Systems resource collection
5.4.3. The Chassis resource collection
5.4.4. The StorageSystems resource collection
5.5. Swordfish model overview
5.5.1. The Storage resource
6. Features and Profiles { .page_break_before }
6.1. Overview
6.2. Requirement for SupportedFeatures
6.3. EnergyStar for Storage Feature
6.4. Class of Service Feature
6.4.1. Overview
6.4.2. Class of Service Model
6.4.3. ServiceRoot Additions
6.4.4. The StorageService resource
7. Schema Considerations { .page_break_before }
7.1. Schema Introduction
7.1.1. Overview
7.1.2. Swordfish Extension of the Redfish ServiceRoot
7.2. Default values and NULLABLE attributes
7.3. Common schema annotations
7.4. Property implementation requirements
7.5. Schema repository { .page_break_before }
7.6. Referencing other schemas
8. Implementation requirements { .page_break_before }
8.1. Security
8.2. General constraints
8.2.1. Redfish elements
8.2.2. Storage Events
8.3. Discovering Swordfish resources
8.4. ClassOfService requirements
8.5. StorageSystems requirements
8.6. Entity Sets
8.7. Addressing entities within a collection
8.8. Addressing members of a ResourceCollection
8.9. HTTP status codes
8.9.1. Overview
8.9.2. Create
8.9.3. Update, Replace, Delete
8.9.4. Actions
9. Swordfish type definitions
9.1. Overview
9.2. Common properties
9.2.1. Properties defined for all Redfish schemas
9.2.2. Links
9.2.3. Actions
9.2.4. OEM
9.2.5. RelatedItem
9.2.6. Status
9.2.7. Location { .page_break_before }
9.3. Complex Types
9.4. CapacitySource 1.1.2
9.4.1. Decription
9.4.2. Properties
9.5. ClassOfServiceCollection
9.5.1. URIs
9.5.2. Properties
9.6. ConsistencyGroup 1.0.1
9.6.1. Decription
9.6.2. URIs
9.6.3. Properties
9.6.4. Actions
9.6.5. Property details
9.7. ConsistencyGroupCollection
9.7.1. URIs
9.7.2. Properties
9.8. DataProtectionLoSCapabilities 1.1.3 { .page_break_before }
9.8.1. Decription
9.8.2. URIs
9.8.3. Properties
9.8.4. Property details
9.9. DataSecurityLoSCapabilities 1.1.3
9.9.1. Decription
9.9.2. URIs
9.9.3. Properties
9.9.4. Property details
9.10. DataStorageLoSCapabilities 1.2.1
9.10.1. Decription
9.10.2. URIs
9.10.3. Properties
9.10.4. Property details
9.11. DriveCollection
9.11.1. URIs
9.11.2. Properties
9.12. EndpointGroup 1.2.0
9.12.1. Decription
9.12.2. URIs
9.12.3. Properties
9.12.4. Property details
9.13. EndpointGroupCollection
9.13.1. URIs
9.13.2. Properties
9.14. FeaturesRegistry 1.0.0
9.14.1. Decription
9.14.2. Properties
9.15. FileShare 1.1.3
9.15.1. Decription
9.15.2. Properties
9.15.3. Property details
9.16. FileShareCollection
9.16.1. URIs
9.16.2. Properties
9.17. FileSystem 1.2.2
9.17.1. Decription
9.17.2. URIs
9.17.3. Properties
9.17.4. Property details
9.18. FileSystemCollection
9.18.1. URIs
9.18.2. Properties
9.19. HostedStorageServices
9.19.1. URIs
9.19.2. Properties
9.20. IOConnectivityLoSCapabilities 1.1.3
9.20.1. Decription
9.20.2. URIs
9.20.3. Properties
9.20.4. Property details
9.21. IOPerformanceLoSCapabilities 1.1.3
9.21.1. Decription
9.21.2. URIs
9.21.3. Properties
9.21.4. Property details
9.22. LineOfService 1.0.0
9.22.1. Decription
9.22.2. Properties
9.23. LineOfServiceCollection
9.23.1. URIs
9.23.2. Properties
9.24. SpareResourceSet 1.0.1
9.24.1. Decription
9.24.2. Properties
9.25. StorageGroup 1.2.1
9.25.1. Decription
9.25.2. URIs
9.25.3. Properties
9.25.4. Actions
9.25.5. Property details
9.26. StorageGroupCollection
9.26.1. URIs
9.26.2. Properties
9.27. StoragePool 1.3.1
9.27.1. Decription
9.27.2. URIs
9.27.3. Properties
9.27.4. Property details
9.28. StoragePoolCollection
9.28.1. URIs
9.28.2. Properties
9.29. StorageReplicaInfo 1.3.0
9.29.1. Decription
9.29.2. Properties
9.30. StorageService 1.4.0 { .page_break_before }
9.30.1. Decription
9.30.2. URIs
9.30.3. Properties
9.30.4. Actions
9.31. StorageServiceCollection
9.31.1. URIs
9.31.2. Properties
9.32. StorageSystemCollection
9.32.1. URIs
9.32.2. Properties
9.33. Volume 1.4.1
9.33.1. Decription
9.33.2. URIs
9.33.3. Properties
9.33.4. Actions
9.33.5. Property details
9.34. VolumeCollection
9.34.1. URIs
9.34.2. Properties
10. Annex A: Bibliography {-}
10.1. A.1 Overview {-}
10.2. A.2 Informational references {-}
The Swordfish Scalable Storage Management API (“Swordfish”) defines a RESTful interface and a standardized data model to provide a scalable, customer-centric interface for managing storage and related data services. It extends the Redfish Scalable Platforms Management API Specification (DSP0266) from the DMTF.
Swordfish extends the Redfish Scalable Platforms Management API Specification, as defined by ISO 30115 It defines a comprehensive, RESTful API for storage management that addresses block storage, file systems, object storage, and storage network infrastructure. It is centered around common operational and business concerns of storage management, including:
Swordfish’s storage model is built around well-defined classes of service, which provide a means to map high-level business goals and objectives to specific, storage-based actions and requirements, in a clear and consistent way that can be applied uniformly across a broad spectrum of storage configurations and storage types (e.g., block storage, file systems, object stores). Common storage management functionality covered by class of service includes snapshots, replication, mapping and masking, and provisioning.
The Redfish specification provides the protocols and a core set of data models and behaviors for the management of systems. It defines the elements and behaviors that are mandatory for all Redfish implementations. Additionally it defines additional elements and behaviors that can be chosen by system vendors or manufacturers. The specifications also defines points at which OEM (system vendor) extensions can be provided by a given implementation. The specifications specifies normative requirements for Redfish Services and associated materials, such as Redfish Schema files. The Redfish specifications does not set requirements for Redfish clients, but will indicate what a Redfish client should do in order to access and utilize a Redfish Service successfully and effectively.
The Swordfish specification defines additional data models and behaviors for the management of storage systems and storage infrastructure. A Swordfish implementation shall conform to all requirements specified in the Redfish specifications.
Swordfish is suitable for a wide range of storage, from small-scale object drives, integrated RAID cards or RBODs providing storage services, to external disk arrays or file servers, to infrastructure providing storage services for converged, hyperscale and large scale cloud environments.
This document defines the Swordfish Scalable Storage Management API.
As Swordfish is designed as an extension of the Redfish specification, this document is written with the presumption that the reader has a detailed understanding of ISO 30115 and any updates or clarifications introduced by the DMTF. This document cannot be fully understood without that context.
The documents listed in Table 3 is indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.
Tag | Title (Version) | Author | URL |
---|---|---|---|
ISO-8601 | Data elements and interchange formats – Information interchange – Representation of dates and times – Part 1: Basic rules | ISO/IEC | http://www.iso.org/iso/home/store/catalogue_ics/ catalogue_detail_ics.htm?csnumber=70907 |
Tag | Title (Version) | Author | URL |
---|---|---|---|
ISO-Direct | ISO/IEC Directives, Part 2 Principles and rules for the structure and drafting of ISO and IEC documents (Seventh Edition, 2016) |
ISO/IEC | http://isotc.iso.org/livelink/livelink/ fetch/2000/2122/4230450/4230456/ ISO_IEC_Directives Part_2 Principles_and_rules_for_the structure_and_drafting_of_ISO_and_IEC documents -2016%287th_edition%29-_PDF.pdf?nodeid=17667902&vernum=-2 |
OData | Open Data Protocol (v. 4.0) | OASIS | https://www.oasis-open.org/standards#odatav4.0 |
RFC3986 | Uniform Resource Identifier (URI): Generic Syntax (2005) | The Internet Society | http://www.rfc-base.org/txt/rfc-3986.txt |
CSDL | Common Schema Definition Language (4.0) | OASIS | http://docs.oasis-open.org/odata/ odata/v4.0/odata-v4.0-part3-csdl.html |
ITIL | ITIL Glossary (2011) | ITIL | https://www.axelos.com/Corporate/media/ Files/Glossaries/ ITIL_2011_Glossary_GB-v1-0.pdf |
Units | The Unified Code for Units of Measure (v2.0.1) | Regenstrief Institute, Inc. and the UCUM Organization | http://unitsofmeasure.org/trac |
SPC-4 | SCSI Primary Commands - 4 (SPC-4) INCITS 513-2015 | T10 | http://www.techstreet.com/cgi-bin/joint.cgi/incits |
Features | Swordfish Features Registry, version 1.0.1 | SNIA | https://redfish.dmtf.org/registries/swordfish/v1/ SwordfishFeatureRegistry.1.0.1.json |
Tag | Title (Version) | Author | URL |
---|---|---|---|
Messages | Swordfish Message Registry, version 1.0.2 | SNIA | https://redfish.dmtf.org/registries/swordfish/v1/ Swordfish.1.0.2.json |
EnergyStar | ENERGY STAR Data Center Storage Version 1.1 Updated Program Requirements – April 1, 2019 | EPA | https://www.energystar.gov/sites/default/files/ENERGY STAR Data Center Storage Final Version 1.1 Specification Rev. April 2019.pdf |
ISO-20648 | Information technology — TLS specification for storage systemsi | ISO/IEC | https://www.iso.org/standard/68622.html |
ISO-30115 | ISO/IEC 30115(en) Information technology — Redfish scalable platforms management API specification | ISO/IEC | https://www.iso.org/standard/53235.html |
None defined in this document.
None defined in this document.
In this document, some terms have a specific meaning beyond the normal English meaning. Those terms are defined in this clause. New terms, frequently used Redfish terms.
Table 4 summarizes the terms are used in this document.
Term | Definition |
---|---|
Entity | An instance of a schema element. |
Model | A set of entities and the relationships between them that define the semantics, behavior and state of that set. |
OData service | A REST-based service that allows resources, identified using Uniform Resource Locators (URLs) and defined in a model, to be published and edited by Web clients using simple HTTP messages. |
Resource | A central element in a model, which represents a physical construct or a logical service, and is further defined by other model entities. |
Schema | A formal language representation of a model that conforms to a metamodel. |
Service Document | A particular resource that is directly accessed via an OData service entry point. This resource serves as a starting point for locating and accessing the other resources and associated metadata that together make up an instance of a Swordfish service. |
Swordfish service | An extension to the Redfish Service that conforms to the Swordfish specification, and provides REST-ful storage management functionality. |
None in this document.
Many terms in this document were originally defined in the Redfish Specification. Some of the more common terms and definitions are reproduced in Table 5, as an aid to the reader.
Term | Definition (as of 16 August 2019) |
---|---|
OData | The Open Data Protocol, as defined in OData-Protocol. |
OData Service Document | Resource that provides information about the service root for generic OData clients. |
Redfish Schema | Defines Redfish Resources according to OData schema representation. You can directly translate a Redfish Schema to a JSON Schema representation. |
Redfish service | Implementation of the protocols, resources, and functions that deliver the interface that this specification defines and its associated behaviors for one or more managed systems. |
Request | A message from a client to a service. |
Service Root | Resource that serves as the starting point for locating and accessing the other resources and associated metadata that together make up an instance of a Redfish Service. |
This document conforms to ISO/IEC Directives, Part 2 for keyword usage. The most common terms and their intended meanings are summarized in Table 6.
Term(s) | Meaning |
---|---|
shall / shall not |
Used to identify objectively verifiable criteria to be fulfilled and from which no deviation is permitted if compliance with the document is to be claimed |
should / should not |
Used to identify a suggested possible choice or course of action deemed to be particularly suitable without necessarily mentioning or excluding others |
may / need not |
Used to convey consent or liberty (or opportunity) to do something |
can / cannot |
Expected or conceivable material, physical or causal outcome |
must | Identifies a constraint or obligation on the user of the document, typically due to one or more legal requirements or laws of nature, that is not stated as a provision of the standard NB: “must” is not an alternative for “shall”, and should only be used for constraints that arise from outside this standard |
The Swordfish Scalable Storage Management API (“Swordfish”) defines a RESTful interface and a standardized data model to provide a scalable, customer-centric interface for managing storage and related data services. It extends the Redfish Scalable Platforms Management API Specification (DSP0266) from the DMTF.
The Swordfish service interface extends the Redfish service interface, as illustrated in Figure 1. As such, a Swordfish service is a Redfish service and includes all required elements of the Redfish model.
Storage systems managed by the Swordfish service are located in the ServiceRoot
via the StorageSystems
resource collection. They are modeled using Redfish ComputerSystems
. The physical infrastructure is modeled using Redfish Chassis
.
As modeling for storage systems may cover both logical and physical constructs, Swordfish management clients that are focused on logical storage management use cases may choose to manage functionality entirely by way of logical resources.
Each Swordfish service is accessed via well known URLs on the system supporting the Swordfish Service. Since Swordfish is an extension of Redfish, these URLs are the same as for accessing the Redfish defined aspects of the service.
Swordfish has been designed to support a broad range of configurations, requirements, size and complexity, as well as logical and physical architectures. As a result, there are two primary methods of modelling the storage system for a Swordfish implementation:

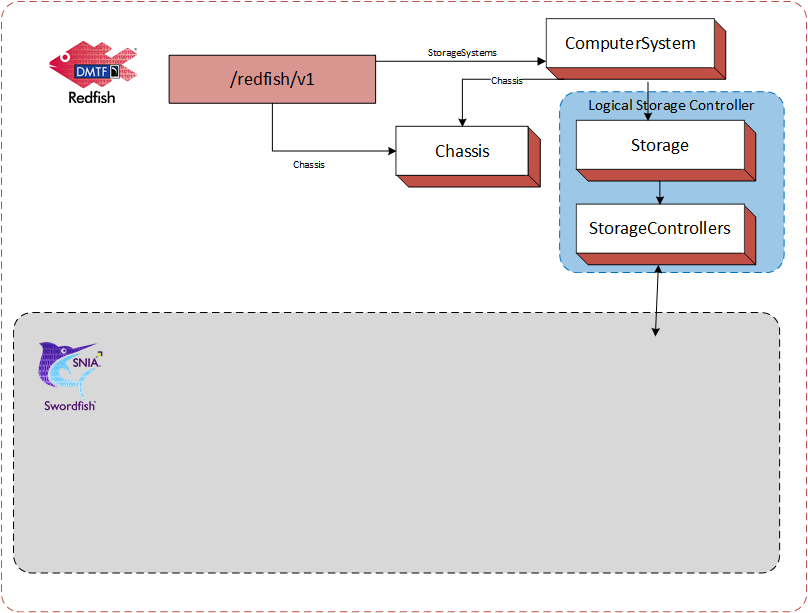

The SIC uses the same ComputerSystem model instantiation as the server where the physical element resides.
The logical storage controller is modeled using the Redfish Storage
and StorageController
resources. The Storage
resource is located in the Redfish hierarchy contained by ComputerSystems
, typically running as ApplicationServers. The physical infrastructure is modeled using Redfish Chassis
. Managed resources are connected to the Storage
resource, including Volumes
the StoragePools

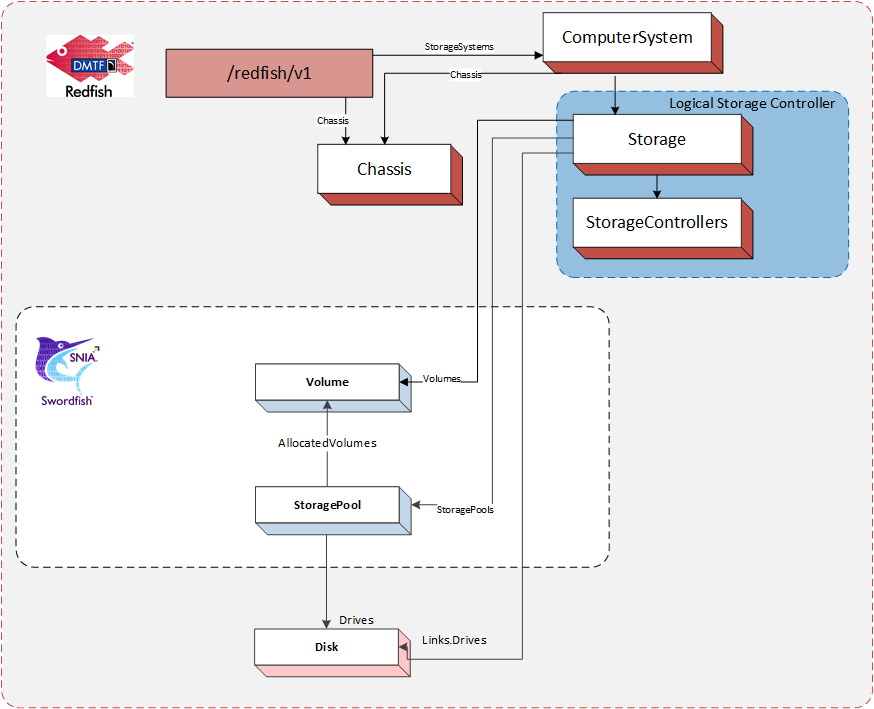

. These relationships are illustrated in Figure 2.
This configuration works well when the storage system can be modeled by simply instantiating a new Storage object within an existing computer system. An example of a Storage System for an integrated configuration is shown in Figure 3.

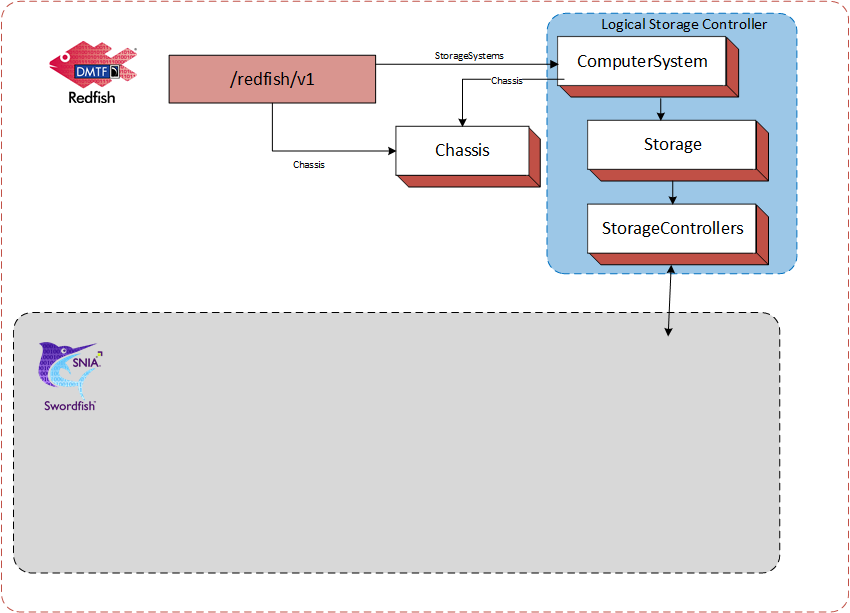

The SSC uses separate ComputerSystem/StorageSystem model instantiation(s) to represent/model the logical controller(s) for the system.
The logical storage controller is modeled using Redfish a ComputerSystems
with properties set as a StorageSystem
. The physical infrastructure is modeled using Redfish Chassis
. Managed resources are then connected to the Storage
resource, including Volumes
, StoragePools
, ConsistencyGroups
, and StorageGroups

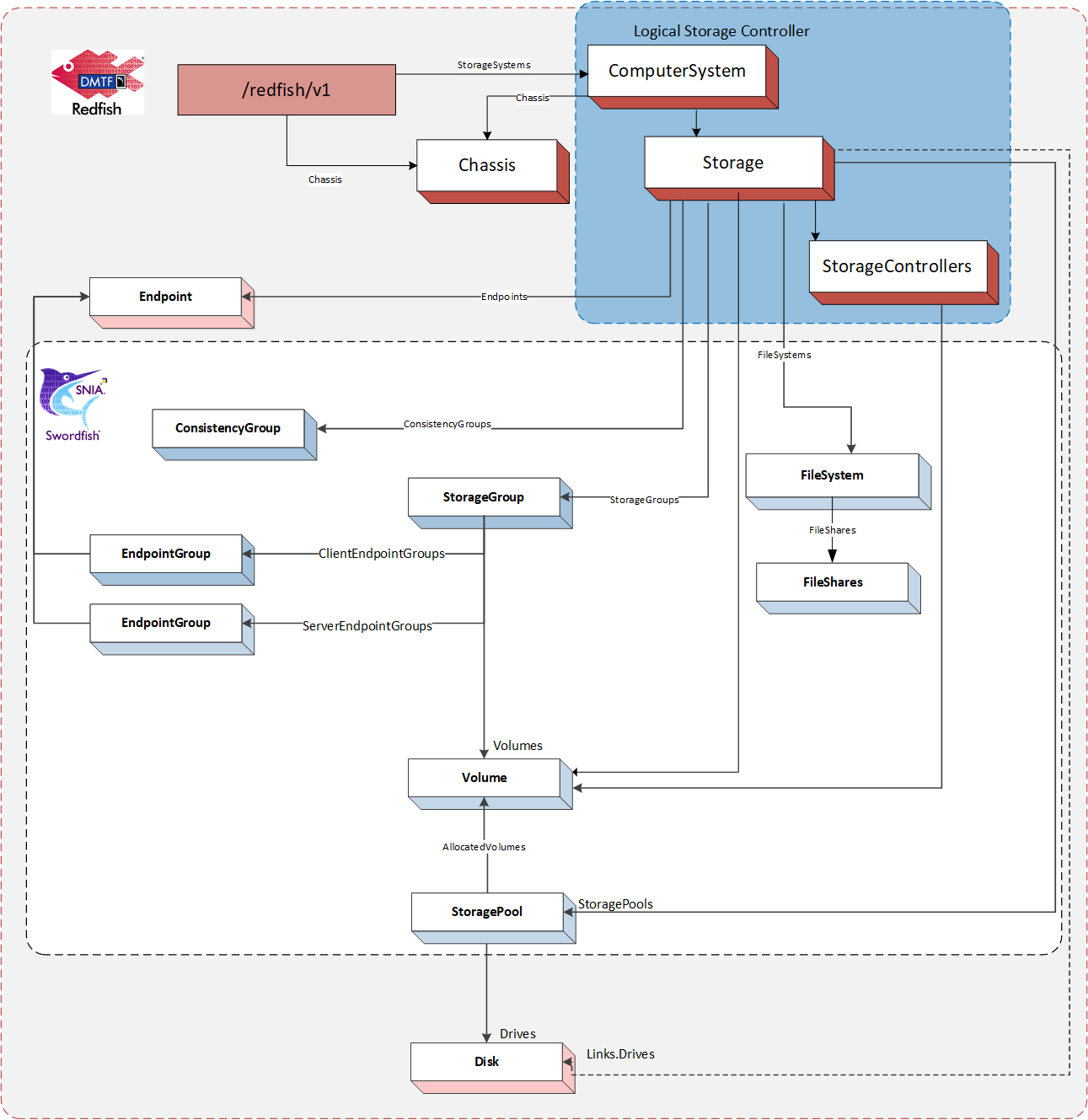

. These relationships are illustrated in Figure 4.
This configuration works well when the storage system needs a new ComputerSystem
instance to model the logical controller. An example of a Storage System for a hosted service configuration is shown in Figure 5.
A GET of /redfish/v1
will return the ServiceRoot
entity. A GET of /redfish/v1/odata
will return the ServiceContainer
instances that represents the OData service document. Each of these instances provides links to the remainder of the system.
The following are the elements utilized for Swordfish management.
Systems
: A reference to a Systems resource collection;Chassis
: A reference to a Chassis resource collection;StorageSystems
: A reference to a StorageSystems resource collection.A resource collection that references a set of ComputerSystem
resources that each represents a general purpose application server. Each ComputerSystem
resource will have an entry with the value of “ApplicationServer” in its HostingRoles
property. A particular ComputerSystem
resource can be in both the StorageSystems collection and the Systems collection.
A resource collection that references a set of Chassis
resources. Each Chassis resource represents physical containers, (i.e. sheet-metal confined spaces and logical zones like racks, enclosures, chassis and all other containers). Subsystems (like sensors), which operate outside of a system’s data plane (meaning the resources are not accessible to software running on the system) are linked either directly or indirectly through this resource.
A reference to a ComputerSystemCollection
with members of type ComputerSystem
that support storage services. These ComputerSystem
resources represent systems that support Swordfish storage management services. They will have an entry with the value of “StorageServer” in their HostingRoles
property.A resource collection that references a set of ComputerSystem
resources that each represents a storage server. Each ComputerSystem
resource will have an entry with the value of “StorageServer” in its HostingRoles
property. A particular ComputerSystem
resource can be a member of both the StorageSystems
resource collection and the Systems
resource collection.
The storage system exposes logical storage, associated resources and related functionality. Storage service resources can be found in the service root or service container via the StorageSystem
resource collection, and are attached to the Storage
object within the StorageSystem
(ComputerSystem
).
The following are the principal properties of Storage
that point to resources managed or defined by the storage system:
Drives
: A reference to a collection that collects Drive
resources used for storage.Enclosures
: A reference to a resource collection that collects Chassis resources that contain storage related resources.Endpoints
: A reference to a resource collection that collects Endpoint
resources used to access storage.EndpointGroups
: A reference to a resource collection that collects EndpointGroups
resources.FileSystems
: A reference to a resource collection that collects FileSystem
resources.StorageGroups
: A reference to a resource collection that collects StorageGroup
resources.ConsistencyGroups
: A reference to a resource collection that collects ConsistencyGroup
resources.StoragePools
: A reference to a resource collection that collects StorageGroup
resources.Volumes
: A reference to a resource collection that collects Volume
resources.Endpoints represent one end of a protocol specific connection that supports sending or receiving messages according to a particular protocol.
The Endpoint
Group is resource collection that references a set of Endpoint
resources.
ConsistencyGroups represent a set of volumes that are managed consistently and collectively as a group, to allow system and application level activities to be performed on a set of data that spans volumes. This activities include device-level replication activities as well as system level functions, such as reset.
When ConsistencyGroups are implemented, they are attached to a Storage
resource and its internal Volumes
collection is constructed from a subset of the Volumes
collection of the Storage
resource.
The ConsistencyGroupCollection
is a resource collection that references a set of ConsistencyGroup
resources.
StorageGroups represent a set of volumes that are managed as a group in order to facilitate mapping and masking, in which the volumes of a storage group are collectively exposed or hidden to a set of clients.
The set of volumes is specified by the Mapped Volumes
attribute. MappedVolumes
is a resource collection of the Mapped Volume
construct (a tuple of a pointer to a volume and a corresponding Logical Unit Number for that volume).
The set of client endpoints to which the volumes can be exposed is specified by the ClientEndpointGroups
attribute. The ClientEndpointGroup
resource specifies a collection of EndpointGroup
resources.
The set of server endpoints to which the volumes can be exposed is specified by the ServerEndpointGroups
attribute. The ServerEndpointGroup
resource specifies a collection of EndpointGroup
resources.
The StoragePool
resource represents unassigned storage capacity that can be used to produce storage volumes or other storage pools.
The following are the principal properties of StoragePool
that are used to identify resources provisioned or supported by the storage pool:
AllocatedVolumes
: A reference to a resource collection that collects Volume
resources that have been provisioned from the storage pool.AllocatedPools
: A reference to a resource collection that collects StoragePool
resources that have been provisioned from the storage pool.Volume
resource represents a block-addressable container of storage, sometimes referred to as a “Logical Unit”, “LU”, “LUN”, or “StorageVolume” in the storage industry.
This FileSystem
resource represents a file system. Each FileSystem
may contain a collection of FileShares
that can be presented to hosts.
Features are high-level descriptions of functionality which an implementation uses to advertise what functionality it currently supports, and for some features, is capable of supporting.
The detailed definitions required to describe to implementers how to implement a feature are written in profile definition files. A feature is generally represented in one (but may be more) profile definition file, or profile.
Profiles are detailed descriptions that describe down to the individual property level what functionality is required in order to advertise features. Different profile definitions can exist for the same feature type but for various types of storage configurations: Swordfish.Block.Provisioning, Swordfish.File.Provisioning
The Swordfish Features Registry shall be used to advertise what standard and Oem Features an implementation supports.
SupportedFeatures
entries in the Features
registry represent the client’s primary initial runtime view of the capabilities of a Swordfish implementation. Without properly formed entries in this registry, there is no visibility to an implementation’s functionality.
Swordfish implementations shall implement the Features
registry and advertise at least the SNIA.Swordfish.Discovery
supported feature in order to be considered a Swordfish implementation.
Features define coarse-grained sets of functionality. In order to advertise a feature (using the SupportedFeature
mechanism in the SupportedFeatures Registry), the implementation must support the complete set of functionality as defined in the corresponding profile.
The Swordfish Features Registry publishes the official list of supported SNIA Features, and provides a high-level description of their functionality. Many of those features are self-explanatory (e.g., local replication, remote replication), but there are some features where additional context is appropriate:
The EnergyStar for Storage Feature and profile has been created to formalize the requirements from the ENERGY STAR Data Center Storage Program Requirements on storage products. The profile indicates what properties Swordfish implementations need to support in order to properly instrument EnergyStar reporting capability. This functionality is intended to support EnergyStar data gathering requirements as part of the EnergyStar certification process.
Swordfish supports a ClassOfService
feature. The ClassOfService
functionality supports systems that are capable of providing a greater level of management automation, where a higher-level set of goals is provided as direction rather than requiring parameterized inputs for all configuration actions.
The Class of Service feature uses a combination of device-defined capabilities to structure LinesOfService, which are sets of available functionality in a given system, that can then be grouped together to provide classes of service.
When Class of service functionality is implemented, the Swordfish functionality may be entirely exposed through the StorageService resource. Each Swordfish StorageService is located in the ServiceRoot (and ServiceContainer) via the StorageServices resource collection.
For Swordfish with a class of service interface, the following two models apply. Either model choice results in the same storage service, regardless of the storage system model.

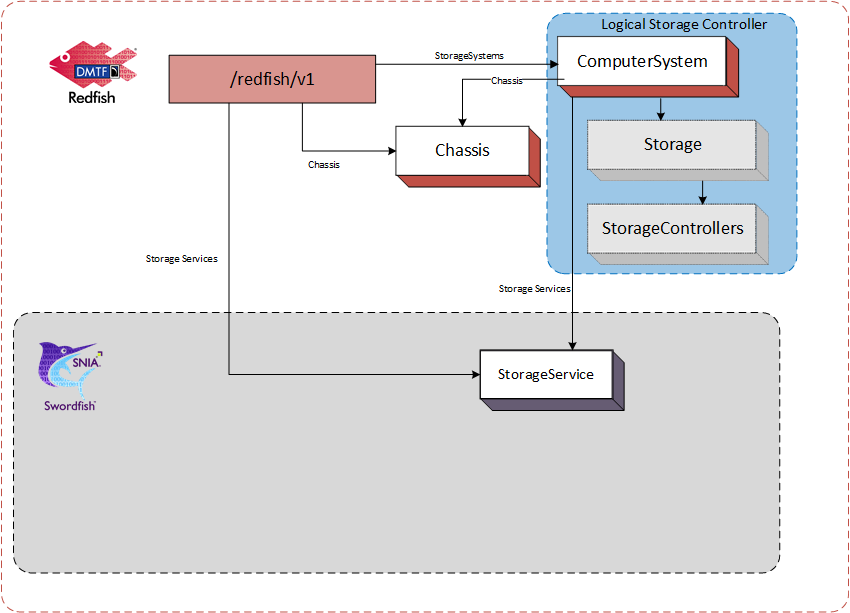

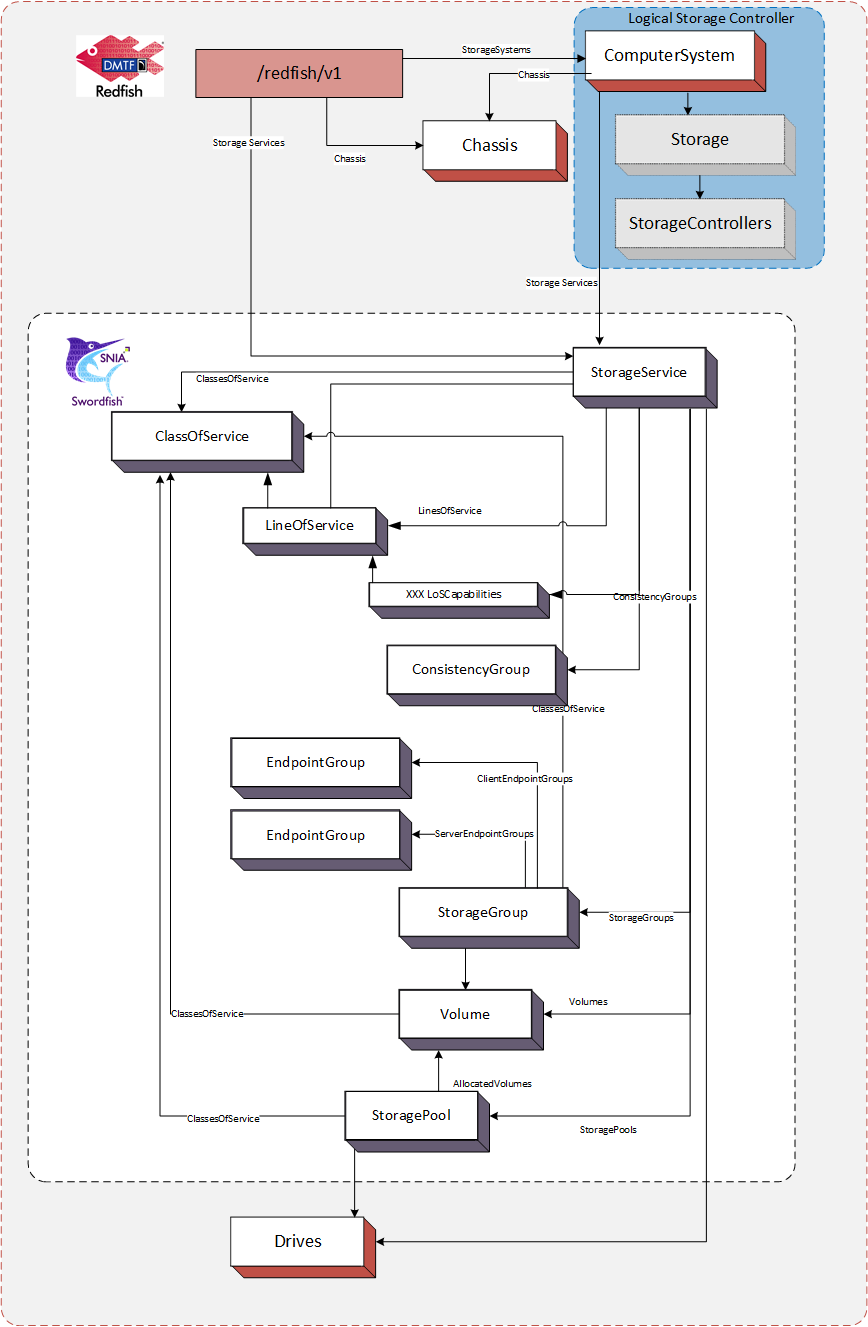

The storage systems managed by the Swordfish storage service are modeled using the Redfish Storage
resource and StorageController
resource collections. The Storage
resource is located in the Redfish hierarchy contained by ComputerSystems
, typically running as ApplicationServers. The physical infrastructure is modeled using Redfish Chassis
. These relationships are shown in Figure 6.
This configuration works well when the storage service is hosted by a storage resource within a computer system. An example of a Storage Service for an integrated service configuration is shown in Figure 7.
Note: This diagram and the discussion of the configuration description have been simplified slightly to avoid confusion. A full implementation would likely include additional links to the logical storage controller resources.

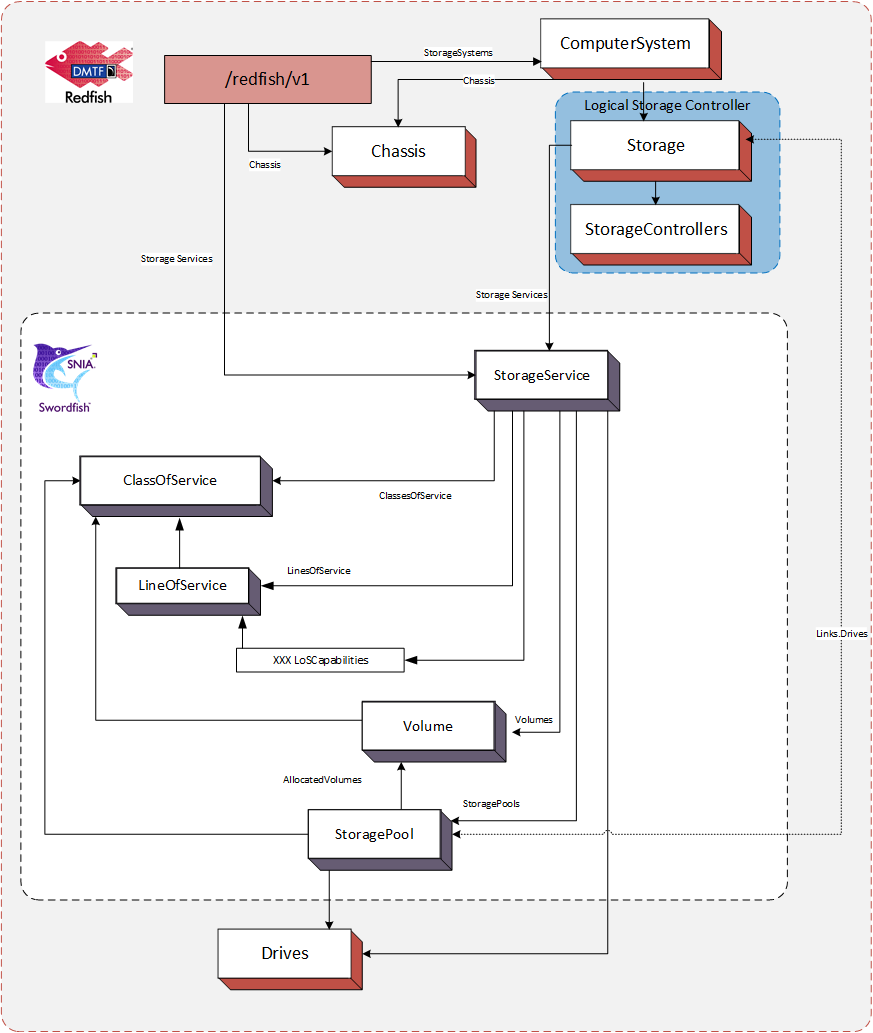

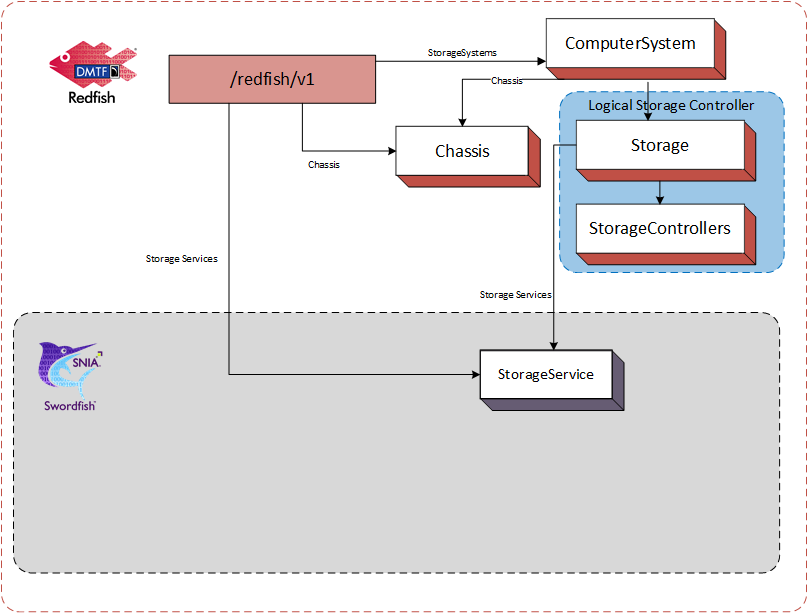

The storage systems managed by the Swordfish storage service are located in the ServiceRoot
(and ServiceContainer
) via the StorageSystems
resource collection. They are modeled using Redfish ComputerSystems
. The physical infrastructure is modeled using Redfish Chassis
. These relationships are shown in Figure 8.
This configuration works well when the storage system hosts the storage service directly. An example of a Storage Service for a hosted service configuration is shown in Figure 9.
Note: This diagram and the discussion of the configuration description have been simplified slightly to avoid confusion. A full implementation would likely include additional links to the logical storage controller resources.
When the StorageService feature is implemented, the following is added to the ServiceRoot
:
StorageServices
: A resource collection that references a set of StorageService
resources. Each StorageService
resource represents the resources and behaviors supported by that storage service.The storage service is hosted on a storage system and exposes logical storage, associated resources and related functionality. Storage service resources can be found in the service root or service container via the StorageServices
resource collection.
The following are the principal properties of StorageService
that point to resources managed or defined by the storage service:
ClassesOfService
: A reference to a resource collection that specifies the supported ClassOfService
resources.Drives
: A reference to a resource collection that collects Drive
resources used for storage.Enclosures
: A reference to a resource collection that collects Chassis resources that contain storage related resources.Endpoints
: A reference to a resource collection that collectsEndpoint
resources used to access storage.FileSystems
: A reference to a resource collection that collects FileSystem
resources.EndpointGroups
: A reference to a resource collection that collects EndpointGroups
resources.StorageGroups
: A reference to a resource collection that collects StorageGroup
resources.StoragePools
: A reference to a resource collection that collects StorageGroup
resources.Volumes
: A reference to a resource collection that collects Volume
resources.HostingSystem
: A reference to the ComputerSystem
instance that hosts this StorageService
.The following properties each define a set of attributes, which describe capabilities that the storage service may support:
DataProtectionLoSCapabilities
: Replicas that protects data from loss.DataSecurityLoSCapabilities
: Data security service level requirements. The data security characteristics enable the storage system to be used in an environment where compliance with an externally-specified security standard or standards is required. Examples of such standards include FIPS-140, HIPAA and PCI.DataStorageLoSCapabilities
: Provisioning and access characteristics for storage of the data.IOConnectivityLoSCapabilities
: IO connectivity requirements for access to the data.IOPerformanceLoSCapabilities
: IO performance requirements for access to the data.In each of the above, not all combinations of attribute values defined within a capability are likely to be supported by the storage service.
Known, supported combinations of attribute values are used to construct entries in the LinesOfService
array property. Not all attributes of a line of service entry need be specified (i.e. some may be Null). If an attribute has no value, the storage service may choose any supported values when provisioning for that entry. Otherwise, the line of service attribute values specifies the kind or level of service to be provided.
A class of service represents a choice of utility or warranty offered to customers by a service. (ITIL uses the term service option
. See the Normative References.)
Each ClassOfService
resource is a uniquely named description of the characteristics of one choice of utility or warranty for a service. Each ClassOfService
is a description of the kind and quality of service to provide and is not intended to describe how the service provides that service.
Each ClassOfService
is defined by an aggregation of lines of service. Supported lines of service are listed in the corresponding capabilities attributes of the storage service, (see above).
Currently defined lines of service are:
Some advertised ClassOfService
resources are created by the service implementation. These are generally not changeable and are intrinsic to the implementation.
A service may support creation or modification of ClassOfService
resources. All must be consistent with the capabilities of the service.
When a Swordfish implementation advertises support for the Class of Service feature, the StoragePool
resource now presents a new method to the client to allocate unassigned storage capacity. This is automated by the system as conformance to one or more classes of service. Requests to StoragePool
shall automatically allocate capacity based on the constraints of the selected class of service and any other selected parameters, with priority given to the class of service constraints.
The following are the principal properties of StoragePool
that are used to identify resources provisioned or supported by the storage pool related to Class of Storage:
ClassesOfService
: A reference to a resource collection that specifies the set ClassOfService
resources that can be specified when provisioning resources from the storage pool.DefaultClassOfService
: A reference to the default ClassOfService
resources used for provisioning from the storage pool.Volume
resource represents a block-addressable container of storage, sometimes referred to as a “Logical Unit”, “LU”, “LUN”, or “StorageVolume” in the storage industry. Volumes optionally adhere to a ClassOfService
, which defines added functionality. Examples include:
In a Swordfish implementation that advertises support for the Class of Service feature, File systems represent file-addressable capacity that are conformant to a ClassOfService
.
A Swordfish implementation is a Redfish implementation, and as such it minimally includes support for some Redfish-defined schema, including ServiceRoot and ComputerSystem. Swordfish implementations include support for Swordfish-defined schema. The Swordfish model focuses primarily on the logical model of a storage system and does not require full representation of a physical instantiation. This is left to the implementer to complete from available Redfish schema models.
Swordfish schema is conformant with the rules used to define Redfish schema. Redfish schema is conformant with the Common Schema Definition Language, see CSDL. This section provides additional definition and context for the CSDL elements used to define Swordfish schema.
The Redfish ServiceRoot
has properties that provide access to Swordfish resources.
The first is StorageSystems
. This property references a collection of ComputerSystem
resources that each support Swordfish functionality. Each such ComputerSystem
shall have an entry in its HostingRoles
property with the value of StorageServer
.
For implementations that advertise support for the ClassOfService
feature, the implementation shall instantiate a collection of StorageServices
at the ServiceRoot
with at least one member. The collection provides the client an efficient means to search across all StorageService
resources, regardless of which ComputerSystem
is supporting the service.
The interaction of Nullable
and DefaultValue
needs to be clearly understood by both implementers and client developers. The possible combinations of are summarized in Table 7. The table contains:
Nullable | DefaultValue | Client | Value |
---|---|---|---|
T | T | T | C |
T | T | F | D |
T | F | T | C |
T | F | F | I or Null |
F | T | T | C |
F | T | F | D |
F | F | T | C |
F | F | F | I or Error |
Table 8 lists common annotation used in the definition of Swordfish, for details see OData Capabilities Vocabulary, OData Core Vocabulary, OData Measures Vocabulary, and Redfish Extensions,
Name | Applies to | Description |
---|---|---|
AllowableValues | Parameter | The set of allowable values for a parameter |
AutoExpand | NavigationProperty | If true, return expand the target element |
AutoExpandReferences | NavigationProperty | If true, return references to the target element |
Name | Applies to | Description |
---|---|---|
ConformanceLevel | EntityContainer | Specifies OData conformance level |
Deprecated | All | Specifies that the element may be removed in future major revisions, but shall continue to be supported as specified in the current revision. |
Description | All | A brief description of a model element |
LongDescription | All | A normative description of a model element |
Maximum | Parameter, Property | Maximum value that an integer property or parameter may have |
Minimum | Parameter, Property | Minimum value that an integer property or parameter may have |
Pattern | Parameter, Property | Specifies a pattern that the value shall match |
Permissions | NavigationProperty, Property | Access permission for the property. |
Required | NavigationProperty, Property | If true, property is required to be supported by the service. The default is optional. See Required Properties |
RequiredOnCreate | NavigationProperty, Property | If true, property is required on creation. See Required Properties |
Unit | Property | The unit of measure for the value. |
The client and the implementer should understand that, regardless of the schema declaration, an implementer may choose to not implement a property. If not implemented, a representation of the property will not be present in a reply. This should not be confused with a response that indicates that a property has been implemented, but has no value (i.e. propertyName = null).
There are several factors that could affect the implementation choice. Implementation requirements can be defined in many documents. At a minimum, a developer should review, in order: 1. the Redfish specification, 2. this document, and 3. associated profile specifications.
The primary online source for the Swordfish schema shall be co-located on the DMTF schema site with the Redfish schema: http://redfish.dmtf.org/schemas/swordfish Developers may also download the schema as part of the Swordfish bundle from snia.org (refer to snia.org/swordfish for pointers to the bundle locations).
Implementations should refer either to the versions available on the dmtf.org site or to locally provided instances of the schema.
Swordfish directly references many Redfish schemas when functionality is already defined and can be leveraged. Other Redfish schema may be added by inference or directly to implementations. Examples are available in the Swordfish mockups.
This document generally adheres to the security requirements defined in the Redfish Specification. It extends the Redfish security model in one important way:
The Swordfish service interface extends the Redfish service interface. As such, a Swordfish service is a Redfish service and all required elements of the Redfish model shall be present in a Swordfish model.
Swordfish functionality shall not conflict with any previously defined Redfish functionality but it may add to or extend it, and it may add additional constraints on Redfish functionality.
Additionally, any functionality desired in a Swordfish implementation that is specified in Redfish shall follow the requirements as specified in the Redfish specification.
A Swordfish implementation should implement an event service. Redfish defines the Event Service framework, client subscription model, event delivery mechanism, as well as standard message registries. Swordfish extends the standard message registries to provide additional message registries that correspond to Swordfish-specific services and properties.
The Redfish event service publishes a list of event types supported, and maintains a list of clients that have subscribed. Each subscription maps clients, subscribed events, and the resources that generate them.
Swordfish constrains the existing event model to provide a more consistent handling of event notifications and the related messages, in order to assure that client systems can easily and consistently parse and respond to system-level events.
Each Swordfish implementation supports the following well-known URLs, as defined in Redfish. Specifically:
/Redfish
, which contains one or more version properties for the integrated Swordfish and Redfish implementation, starting with v1./Redfish/v1
, which addresses a ServiceRoot
instance, which defines the Redfish default principal starting information for version 1 implementation of an integrated Redfish and Swordfish service. A GET operation to it shall retrieve the value of an instance of a ServiceRoot
EntityType
as defined in the ServiceRoot_v1.xml file./Redfish/v1/odata
, which addresses a ServiceContainer
instance, which defines OData conformant principal starting information for the same version 1 implementation of an integrated Redfish and Swordfish service. A GET operation shall retrieve the value of an instance of a ServiceContainer
EntityContainer
as defined in the ServiceRoot_v1.xml file.Note: Since the
ServiceContainer
is required to return an@odata.context
value of/redfish/v1
, all other elements accessed via it will be the same elements found via theServiceRoot
.
Note: A Swordfish service is a Redfish service with extensions to support storage management. No additional service entry-points are necessary.
Both the ServiceRoot
and ServiceContainer
contain a resource collection named Systems
that lists ComputerSystem
instances. A ComputerSystem
instance that supports Swordfish defined services will have a value of “StorageServer” in an entry of its HostingRoles
property.
The ServiceContainer
additionally has a Service attribute that references the ServiceRoot
resource.
Regardless of starting point, the property values of the ServiceRoot
instance enable navigation to all other resources exposed by the Swordfish service.
Each ClassOfService
shall include at least one line of service. The providing server shall assure that the line of service values of a ClassOfService
collectively represent a supported choice of service.
For Hosted Service Configurations, this property of the ServiceRoot
references a collection of ComputerSystem
resources that each support Swordfish functionality. Each ComputerSystem
included in the StorageSystems
entry in the ServiceRoot
shall have:
HostingRoles
property with the value of StorageServer
StorageServices.Members
property.For Integrated Service Configurations, the StorageSystems concept is realized through the StorageController
resource. Each StorageController
instantiated as a Swordfish StorageSystem shall have:
StorageController.Links
property StorageServices
collection identifying related StorageServices
The Swordfish model does not currently expose any explicitly defined entity sets. OData specifies that an entity set is defined for each NavigationProperty that is defined as a collection and that has the ContainsTarget attribute set to true. In all other cases, Swordfish assumes that an entity set is defined globally within the implementation for each entity type. This is effectively the same as if the entity sets were explicitly defined in the ServiceRoot entity container.
An instance (entity) of an EntityType is uniquely identified within its entity set by its key. The URI for the reference may specify the key using one of two general strategies
OData recommends specifying the key value within parenthesis following the path segment that identifies the referencing entity set. (See clause “Canonical URL” in in OData)
Redfish common practice is to use an alternative form that adds a path segment having the value of the key following the path segment that identifies the referencing collection. (See clause “Alternate Key-as-Segment Syntax” in OData.)
A Swordfish implementation shall support both strategies.
Redfish specifies that subclasses of ResourceCollection shall include a Members collection property (See clause “Collection resource response” in DSP0266)
Redfish allows a POST request to a ResourceCollection to be equivalent to the same POST request to the Members property of that ResourceCollection. For a particular ResourceCollection, if a Swordfish implementation supports either form, it shall support both.
It is common practice in Redfish to also eliminate the Members property from any request URI that navigates through a type hierarchy that includes a Member within a ResourceCollection. Care should be taken when defining and using a ResourceCollection subclass to not introduce ambiguities when an explicit reference to a Members property is dropped from a request URI.
Status codes are generally defined as part of the general HTTP protocol definition. In addition, the Redfish specification calls out general usage for HTTP status codes. This section provides additional usage guidance and constraints for Swordfish implementations.
In some instances, Redfish and Swordfish expand the standard use of HTTP status codes by associating additional system status with specific status codes. In addition, error response data may be included via standardized message registry entries. The specific messaging requirements will be defined in the following sections.
In cases where Swordfish adds additional constraints or expands on the Redfish handling of a given issue, this document will include both a clause reference (relative to the 1.7.0 version of the Redfish specification), and a small wording extract for additional context. For example:
Swordfish refines the requirements in x.y.z of the Redfish Specification: Redfish has no constraint on external storage functionality
to require that all references to external storage functionality shall be compliant with the current release of Swordfish.
If a request to create a resource can be completed successfully without additional time, the Redfish service shall return a status code of 201, and the body of the response shall contain the JSON representation of the newly created resource.
If the create resource request has been accepted, but no information about the resource can be returned at this point, the Redfish service shall return a status code of 204. The payload of the response shall be empty, but the Location header shall contain the resource URI. The client will be required to poll the appropriate resource to determine both when and if the operation is complete.
Swordfish refines the requirements in clauses 7.5.1 and 12.2 of the Redfish Specification.
If a request to create a resource cannot be completed without additional time, the implementation shall:
Populate an initial object. It shall contain, at a minimum, a valid URI, required properties (e.g., ID, name), and Status.State;
Set Status.State of the partially populated resource to “Creating”;
Return the appropriate status code, based on the following guidance:
If a Task Service has been implemented, the Redfish service shall return a status code of 202, with the Location header set to the URI of the Task Monitor. Once the provider has returned a Task Monitor to the client, the Client can then query the provided task URI to track the task completion status. Upon task completion, a GET against the task monitor may return a status code of 201, and the body of the message shall contain the created resource, provided the task monitor URI remains valid . Refer to the Redfish Task Manager documentation for the lifecycle of the task monitor URI.
If a Task Service has not been implemented, the Redfish service shall return a status code of 201, and the body of the response shall contain the URI of the skeletal resource created as part of accepting the request. The client will be required to poll the URI provided to determine when the operation is complete.
Update Status.State for the object, once the create operation completes.
If a request to modify or delete a resource can be completed without additional time, the Redfish service shall return a status code of 200, and the body of the response shall contain the JSON representation of the modified (or deleted) resource.
If the resource modification or deletion request has been accepted, but no information about the resource can be returned at this point, the Redfish service shall return a status code of 204. The payload of the response shall be empty. The client will be required to poll the appropriate collection to determine both when and if the operation is complete.
If a request to modify a resource cannot be completed without additional time, the implementation shall:
Set Status.State of the partially populated resource to “Updating” or “Deleting”, as appropriate;
Return the appropriate status code, based on the following guidance:
If a Task Service has been implemented, the Redfish service shall return a status code of 202, with the Location header set to the URI of the Task Monitor. Once the provider has returned a Task Monitor to the client, the Client can then query the provided task URI to track the task completion status. Upon task completion, a GET against the task monitor may return a status code of 201, and the body of the message shall contain the created resource, provided the task monitor URI remains valid . Refer to the Redfish Task Manager documentation for the lifecycle of the task monitor URI.
If a Task Service has not been implemented, the Redfish service shall return a status code of 200, and the body of the response shall contain the URI of the skeletal resource created as part of accepting the request. The client will be required to poll the URI provided to determine when the operation is complete.
For an update or replace request, the implementation shall update Status.State for the resource, once the modify operation completes.
Swordfish supports the approach to Actions in 5.6.3 of the Redfish Specification: Actions are Redfish operations that do not easily map to RESTful interface semantics. These types of operations may not directly affect properties in the Redfish Resources.
Swordfish refines the requirements in 7.10 of the Redfish Specification: Services shall support the POST method to send actions to Resources
.
If a Task Service has been implemented, the Redfish service shall return a status code of 202, with the Location header set to the URI of the Task Monitor. Once the provider has returned a Task Monitor to the client, the Client can then query the provided task URI to track the task completion status. Once the task has completed successfully, a GET against the task monitor shall return the created object.
If a Task Service has not been implemented, the Redfish service shall return a status code of 200, and the body of the response shall contain the URI of the skeletal resource created as part of accepting the request. The client will be required to poll the URI provided to determine when the operation is complete. When processing ACTIONS, the handling of HTTP status codes is slightly different than that seen when processing CREATE or MODIFY requests. The HTTP status code is used to reflect the acceptance and formatting of the request. The outcome of any requested processing is reflected in the body of the returned message and its associated Error response structure. For example, a properly formatted request to execute a system reset may return an HTTP status code of 200 (OK), to reflect that the request has been received, was validly formatted, and has been accepted for processing, while the reset of the system may not complete successfully. The Error response structure would contain further detail of the success of failure of the system reset. The implementation must check both the HTTP status code and the underlying Error response message structure to confirm the successful execution of the ACTION.
The following sections define the schema and type definitions that make up a Swordfish implementation. Each data type or entity within the schema includes a description that defines its implementation requirements and their interaction
The properties summarized in Table 9 are included in every Redfish schema, and therefore may be encountered in any Response payload. They are documented here to avoid repetition in the Resource Guide tables for each schema.
Property | Datatype | Attributes | Notes |
---|---|---|---|
@odata.context | string | read-only | The @odata.context property is a URL to a metadata document with a fragment describing the data (typically rooted at the top-level singleton or collection). Technically the metadata document only has to define, or reference, any of the types that it directly uses, and different payloads could reference different metadata documents. However, since the @odata.context provides a root URL for resolving relative references (such as @odata.id’s), we return the canonical metadata document. |
@odata.id | string | read-only | The @odata.id property is a string that indicates the unique identifier of a resource. |
Property | Datatype | Attributes | Notes |
---|---|---|---|
@odata.type | string | read-only | The @odata.type property is a URL fragment that indicates the type of the resource. |
Description | string | read-write | The Description property is used to convey a human-readable description of the resource. |
Id | string | read-write | The Id property of a resource uniquely identifies the resource within the Resource Collection that contains it. The value of Id is unique within a Resource Collection. |
Name | string | read-write | The Name property is used to convey a human-readable moniker for a resource. The type of the Name property is a string. The value of Name is NOT necessarily unique across resource instances within a Resource Collection. |
Oem { } | object | read-write | This is the manufacturer/provider specific extension moniker used to divide the Oem object into sections. See the Resource schema for details on this property. |
The Links property represents the links associated with the resource, as defined by that resource’s schema definition. All associated reference properties defined for a resource are nested under the Links property. All directly referenced (subordinate) properties defined for a resource can be found from the root of the resource.
The Actions property contains the actions supported by a resource.
The OEM property is used for OEM extensions.
The RelatedItem property is represented as a set of links. The links point to a resource, or part of a resource, as defined by that resource’s schema definition.
This representation is not intended to be a strong linking methodology like other references. Instead it is used to show a relationship between elements or sub-elements in disparate parts of the service. For example, Fans may be in one area of the system and Processors in another area of the system. It could be that the relationship between the two is not obvious. The RelatedItem property can be used to show that one is related to the other. In this example, it might indicate that a specific fan is cooling a specific processor.
The Status
property is common to many Redfish schema. Its attributes are summarized in Table 10.
Health | string (enum) | read-only | This represents the health state of this resource in the absence of its dependent resources. See Health in Property Details, below, for the possible values of this property. |
HealthRollup | string (enum) | read-only | This represents the overall health state from the view of this resource. See HealthRollup in Property Details, below, for the possible values of this property. |
Oem { } | object | read-write | Oem extension object. |
State | string (enum) | read-only | This indicates the known state of the resource, such as if it is enabled. See State in Property Details, below, for the possible values of this property. |
Health:
This represents the health state of this resource in the absence of its dependent resources. Its possible values are summarized in Table 11.
string | Description |
---|---|
Critical | A critical condition exists that requires immediate attention. |
OK | Normal. |
Warning | A condition exists that requires attention. |
HealthRollup:
This represents the overall health state from the view of this resource. Its possible values are summarized in Table 12.
string | Description |
---|---|
Critical | A critical condition exists that requires immediate attention. |
OK | Normal. |
Warning | A condition exists that requires attention. |
State:
This indicates the known state of the resource, such as if it is enabled. Its possible values are summarized in Table 13.
string | Description |
---|---|
Absent | This function or resource is not present or not detected. |
Disabled | This function or resource has been disabled. |
Enabled | This function or resource has been enabled. |
InTest | This function or resource is undergoing testing. |
Quiesced | The element is enabled but only processes a restricted set of commands. |
StandbyOffline | This function or resource is enabled, but awaiting an external action to activate it. |
StandbySpare | This function or resource is part of a redundancy set and is awaiting a failover or other external action to activate it. |
Starting | This function or resource is starting. |
UnavailableOffline | This function or resource is present but cannot be used. |
Updating | The element is updating and may be unavailable or degraded. |
The properties of a Location object are summarized in Table 14.
Property | Type | Notes | |
---|---|---|---|
AltitudeMeters | number (m) | read-only (null) | The altitude of the resource in meters. |
Info | string | read-only (null) | This indicates the location of the resource. |
InfoFormat | string | read-only (null) | This represents the format of the Info property. |
Latitude | number (deg) | read-only (null) | The latitude resource. |
Longitude | number (deg) | read-only (null) | The longitude resource in degrees. |
Oem { } | object | read-write | Oem extension object. See the Resource schema for details on this property. |
PartLocation { | object | read-write | Postal address of the addressed resource. |
LocationOrdinalValue | number | read-only (null) | The number that represents the location of the part. If LocationType is slot and this unit is in slot 2 then the LocationOrdinalValue will be 2. |
LocationType | string (enum) | read-only | The type of location of the part, such as slot, bay, socket and slot. See LocationType in Property Details, below, for the possible values of this property. |
Orientation | string (enum) | read-only | The orientation for the ordering of the slot enumeration used by the LocationOrdinalValue property. See Orientation in Property Details, below, for the possible values of this property. |
Property | Type | Notes |
---|---|---|
Reference | string (enum) | read-only |
ServiceLabel } |
string | read-only (null) |
Placement { | object | read-write |
Rack | string | read-write (null) |
RackOffset | number | read-write (null) |
RackOffsetUnits | string (enum) | read-write |
Row } |
string | read-write (null) |
PostalAddress { | object | read-write |
AdditionalCode | string | read-write (null) |
Building | string | read-write (null) |
City | string | read-write (null) |
Community | string | read-write (null) |
Country | string | read-write (null) |
District | string | read-write (null) |
Division | string | read-write (null) |
Floor | string | read-write (null) |
GPSCoords | string | read-write (null) |
HouseNumber | number | read-write (null) |
HouseNumberSuffix | string | read-write (null) |
Landmark | string | read-write (null) |
LeadingStreetDirection | string | read-write (null) |
Location | string | read-write (null) |
Property | Type | Notes |
---|---|---|
Name | string | read-write (null) |
Neighborhood | string | read-write (null) |
POBox | string | read-write (null) |
PlaceType | string | read-write (null) |
PostalCode | string | read-write (null) |
Road | string | read-write (null) |
RoadBranch | string | read-write (null) |
RoadPostModifier | string | read-write (null) |
RoadPreModifier | string | read-write (null) |
RoadSection | string | read-write (null) |
RoadSubBranch | string | read-write (null) |
Room | string | read-write (null) |
Seat | string | read-write (null) |
Street | string | read-write (null) |
StreetSuffix | string | read-write (null) |
Territory | string | read-write (null) |
TrailingStreetSuffix | string | read-write (null) |
Unit } |
string | read-write (null) |
LocationType:
The type of location of the part, such as slot, bay, socket and slot. The enum’s potential values are sumamrized in Table 15.
string | Description |
---|---|
Bay | Defines a bay as the type of location. |
Connector | Defines a connector as the type of location. |
Slot | Defines a slot as the type of location. |
Socket | Defines a socket as the type of location. |
Orientation:
The orientation for the ordering of the slot enumeration used by the LocationOrdinalValue property. The enum’s potential values are sumamrized in Table 16.
string | Description |
---|---|
BackToFront | Defines the ordering for the LocationOrdinalValue is back to front. |
BottomToTop | Defines the ordering for the LocationOrdinalValue is bottom to top. |
FrontToBack | Defines the ordering for the LocationOrdinalValue is front to back. |
LeftToRight | Defines the ordering for the LocationOrdinalValue is left to right. |
RightToLeft | Defines the ordering for the LocationOrdinalValue is right to left. |
TopToBottom | Defines the ordering for the LocationOrdinalValue is top to bottom. |
RackOffsetUnits:
The type of Rack Units in use. The enum’s potential values are sumamrized in Table 17.
string | Description |
---|---|
EIA_310 | Defines a rack unit as being equal to 1.75 in (44.45 mm). |
OpenU | Defines a rack unit as being equal to 48 mm (1.89 in). |
Reference:
The reference point for the part location. This is used to give guidance as to the general location of the part. The enum’s potential values are sumamrized in Table 18.
string | Description |
---|---|
Bottom | Defines the part as being in the bottom of the unit. |
Front | Defines the part as being in the front of the unit. |
Left | Defines the part as being in the left of the unit. |
Middle | Defines the part as being in the middle of the unit. |
Rear | Defines the part as being in the rear of the unit. |
Right | Defines the part as being in the right of the unit. |
Top | Defines the part as being in the top of the unit. |
The Table 19 defines a number of complex types that are used frequently in Swordfish schema. Multiple references to each complex type may be seen in later sections. For detailed definitions and properties contained in each complex type, refer to the schema definitions as referenced in the table.
Type Name | Notes |
---|---|
Capacity {} | This composition may be used to represent storage capacity. The sum of the values in Data, Metadata,and Snapshot shall be equal to the total capacity for the datastore. See the Capacity.v1_1_0 schema for details. |
CapacityInfo {} | This composition may be used to represent the utilization of storage capacity. See the Capacity.v1_1_0 schema for details. |
IOStatistics {} | See the IOStatistics.v1_0_1 schema for details on this property. |
Type Name | Notes |
---|---|
IOWorkload {} | This structure may be used to describe an IO Workload. See the IOPerformanceLoSCapabilities.v1_0_0 schema for details. |
IOWorkloadComponent{} | This structure may be used to describe a component of an IO workload. See the IOPerformanceLoSCapabilities.v1_1_1 schema for details. |
ReplicaInfo {} | The value shall define the characteristics of a replica. See the StorageReplicaInfo.v1_1_0 schema for details. |
ReplicaRequest {} | See the DataProtectionLineOfService.v1_1_0 schema for details. |
Schedule {} | Schedule a series of occurrences. See the Schedule.v1_1_0 schema for details. |
This composition may be used to represent the source and type of storage capacity. At most one of the ProvidingDrives, ProvidingVolumes, ProvidingMemoryChunks, ProvidingMemory or ProvidingPools properties may have a value. If any of ProvidingDrives, ProvidingVolumes, ProvidingMemory or ProvidingPools reference more than one resource, allocation of capacity across those resources is implementation dependent.
The properties defined for the CapacitySource 1.1.2 object are summarized in Table 20.
Property | Type | Notes |
---|---|---|
@odata.etag | string read-only |
The value of this property shall be a string that is defined by the ETag HTTP header definition in RFC7232. |
Actions (v1.1.2+) {} | object | The Actions property shall contain the available actions for this resource. |
Description | string read-only (null) |
This object represents the description of this resource. The resource values shall comply with the Redfish Specification-described requirements. |
Id | string read-only required |
This property represents an identifier for the resource. The resource values shall comply with the Redfish Specification-described requirements. |
Name | string read-only required |
This object represents the name of this resource or array member. The resource values shall comply with the Redfish Specification-described requirements. This string value shall be of the ‘Name’ reserved word format. |
Oem {} | object | This property shall contain the OEM extensions. All values for properties that this object contains shall conform to the Redfish Specification-described requirements. See the Resource schema for details on this property. |
Property | Type | Notes |
---|---|---|
ProvidedCapacity { | object | The value shall be the amount of space that has been provided from the ProvidingDrives, ProvidingVolumes, ProvidingMemory or ProvidingPools. |
Data { | object | The value shall be capacity information relating to provisioned user data. |
AllocatedBytes | integer (By) read-write (null) |
The value shall be the number of bytes currently allocated by the storage system in this data store for this data type. |
ConsumedBytes | integer (By) read-only (null) |
The value shall be the number of logical bytes currently consumed in this data store for this data type. |
GuaranteedBytes | integer (By) read-write (null) |
The value shall be the number of bytes the storage system guarantees can be allocated in this data store for this data type. |
ProvisionedBytes | integer (By) read-write (null) |
The value shall be the maximum number of bytes that can be allocated in this data store for this data type. |
} | ||
IsThinProvisioned | boolean read-only (null) |
If the value is false, the capacity shall be fully allocated. The default value shall be false. |
Property | Type | Notes |
---|---|---|
Metadata { | object | The value shall be capacity information relating to provisioned system (non-user accessible) data. |
AllocatedBytes | integer (By) read-write (null) |
The value shall be the number of bytes currently allocated by the storage system in this data store for this data type. |
ConsumedBytes | integer (By) read-only (null) |
The value shall be the number of logical bytes currently consumed in this data store for this data type. |
GuaranteedBytes | integer (By) read-write (null) |
The value shall be the number of bytes the storage system guarantees can be allocated in this data store for this data type. |
ProvisionedBytes | integer (By) read-write (null) |
The value shall be the maximum number of bytes that can be allocated in this data store for this data type. |
} | ||
Snapshot { | object | The value shall be capacity information relating to provisioned snapshot or backup data. |
Property | Type | Notes |
---|---|---|
AllocatedBytes | integer (By) read-write (null) |
The value shall be the number of bytes currently allocated by the storage system in this data store for this data type. |
ConsumedBytes | integer (By) read-only (null) |
The value shall be the number of logical bytes currently consumed in this data store for this data type. |
GuaranteedBytes | integer (By) read-write (null) |
The value shall be the number of bytes the storage system guarantees can be allocated in this data store for this data type. |
ProvisionedBytes | integer (By) read-write (null) |
The value shall be the maximum number of bytes that can be allocated in this data store for this data type. |
} | ||
} | ||
ProvidedClassOfService { | object | The value shall reference the provided ClassOfService from the ProvidingDrives, ProvidingVolumes, ProvidingMemoryChunks, ProvidingMemory or ProvidingPools. |
@odata.id | string read-only |
The value of this property shall be the unique identifier for the resource and it shall be of the form defined in the Redfish specification. |
} |
Property | Type | Notes |
---|---|---|
ProvidingDrives { | object | If present, the value shall be a reference to a contributing drive or drives. Contains a link to a resource. |
@odata.id | string read-only |
Link to Collection of Drive. See the Drive schema for details. |
} | ||
ProvidingMemory (v1.1+) { | object | If present, the value shall be a reference to the contributing memory. |
@odata.id | string read-only |
The value of this property shall be the unique identifier for the resource and it shall be of the form defined in the Redfish specification. |
} | ||
ProvidingMemoryChunks (v1.1+) { | object | If present, the value shall be a reference to the contributing memory chunks. |
@odata.id | string read-only |
The value of this property shall be the unique identifier for the resource and it shall be of the form defined in the Redfish specification. |
} | ||
ProvidingPools { | object | If present, the value shall be a reference to a contributing storage pool or storage pools. Contains a link to a resource. |
@odata.id | string read-only |
Link to Collection of StoragePool. See the StoragePool schema for details. |
} |
Property | Type | Notes |
---|---|---|
ProvidingVolumes { | object | If present, the value shall be a reference to a contributing volume or volumes. Contains a link to a resource. |
@odata.id | string read-only |
Link to Collection of Volume. See the Volume schema for details. |
} |
/redfish/v1/StorageServices/{StorageServiceId}/ClassesOfService /redfish/v1/StorageServices/{StorageServiceId}/StoragePools/{StoragePoolId}/ClassesOfService
The properties defined for the ClassOfServiceCollection object are summarized in Table 21.
Property | Type | Notes |
---|---|---|
@odata.etag | string read-only |
The value of this property shall be a string that is defined by the ETag HTTP header definition in RFC7232. |
Description | string read-only (null) |
This object represents the description of this resource. The resource values shall comply with the Redfish Specification-described requirements. |
Members [ { | array | The value of each member entry shall reference a ClassOfService or LineOfService resource. |
@odata.id | string read-only |
Link to a LineOfService resource. See the Links section and the LineOfService schema for details. |
} ] | ||
Members@odata.nextLink | string read-only |
The value of this property shall be a URI to a resource, with the same @odata.type, containing the next set of partial members. |
Name | string read-only |
This object represents the name of this resource or array member. The resource values shall comply with the Redfish Specification-described requirements. This string value shall be of the ‘Name’ reserved word format. |
Property | Type | Notes |
---|---|---|
Oem {} | object | This property shall contain the OEM extensions. All values for properties contained in this object shall conform to the Redfish Specification-described requirements. See the Resource schema for details on this property. |
A collection of volumes grouped together to ensure write order consistency across all those volumes. A management operation on a consistency group, such as configuring replication properties, applies to all the volumes within the consistency group.
/redfish/v1/StorageServices/{StorageServiceId}/ConsistencyGroups/{ConsistencyGroupId} /redfish/v1/StorageServices/{StorageServiceId}/Volumes/{VolumeId}/ConsistencyGroups/{ConsistencyGroupId} /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/ConsistencyGroups/{ConsistencyGroupId}
The properties defined for the ConsistencyGroup 1.0.1 object are summarized in Table 22.
Property | Type | Notes |
---|---|---|
@odata.etag | string read-only |
The value of this property shall be a string that is defined by the ETag HTTP header definition in RFC7232. |
Actions { | object | The Actions property shall contain the available actions for this resource. |
Property | Type | Notes |
---|---|---|
#ConsistencyGroup.AssignReplicaTarget {} | object | This action shall be used to establish a replication relationship by assigning an existing consistency group to serve as a target replica for an existing source consistency group. For more information, see the Actions section below. |
#ConsistencyGroup.CreateReplicaTarget {} | object | This action shall be used to create a new consistency group resource to provide expanded data protection through a replica relationship with the specified source consistency group. For more information, see the Actions section below. |
#ConsistencyGroup.RemoveReplicaRelationship {} | object | This action shall be used to disable data synchronization between a source and target consistency group, remove the replication relationship, and optionally delete the target consistency group. For more information, see the Actions section below. |
Property | Type | Notes |
---|---|---|
#ConsistencyGroup.ResumeReplication {} | object | This action shall be used to resume the active data synchronization between a source and target consistency group, without otherwise altering the replication relationship. For more information, see the Actions section below. |
#ConsistencyGroup.ReverseReplicationRelationship {} | object | This action shall be used to reverse the replication relationship between a source and target consistency group. For more information, see the Actions section below. |
#ConsistencyGroup.SplitReplication {} | object | This action shall be used to split the replication relationship and suspend data synchronization between a source and target consistency group. For more information, see the Actions section below. |
Property | Type | Notes |
---|---|---|
#ConsistencyGroup.SuspendReplication {} | object | This action shall be used to suspend active data synchronization between a source and target consistency group, without otherwise altering the replication relationship. For more information, see the Actions section below. |
} | ||
ConsistencyMethod | string (enum) read-write (null) |
The property shall set the consistency method used by this group. For the possible property values, see ConsistencyMethod in Property details. |
ConsistencyType | string (enum) read-write (null) |
The property shall set the consistency type used by this group. For the possible property values, see ConsistencyType in Property details. |
Description | string read-only (null) |
This object represents the description of this resource. The resource values shall comply with the Redfish Specification-described requirements. |
Id | string read-only required |
This property represents an identifier for the resource. The resource values shall comply with the Redfish Specification-described requirements. |
Property | Type | Notes |
---|---|---|
IsConsistent | boolean read-only (null) |
The value of this property shall be set to true when the consistency group is in a consistent state. |
Links { | object | This property shall contain links to other resources that are related to this resource. |
Oem {} | object | This property shall contain the OEM extensions. All values for properties contained in this object shall conform to the Redfish Specification-described requirements. See the Resource schema for details on this property. |
} | ||
Name | string read-only required |
This object represents the name of this resource or array member. The resource values shall comply with the Redfish Specification-described requirements. This string value shall be of the ‘Name’ reserved word format. |
Oem {} | object | This property shall contain the OEM extensions. All values for properties that this object contains shall conform to the Redfish Specification-described requirements. See the Resource schema for details on this property. |
Property | Type | Notes |
---|---|---|
ReplicaInfo { | object | This property shall describe the replication relationship between this storage group and a corresponding source storage group. See the StorageReplicaInfo schema for details on this property. |
@odata.id | string read-only |
Link to a ReplicaInfo resource. See the Links section and the StorageReplicaInfo schema for details. |
} | ||
ReplicaTargets [ { | array | The value shall reference the target replicas that are sourced by this replica. |
@odata.id | string read-only |
The value of this property shall be the unique identifier for the resource and it shall be of the form defined in the Redfish specification. |
} ] | ||
Status {} | object | The property shall contain the status of the ConsistencyGroup. See the Resource schema for details on this property. |
Volumes [ { | array | An array of references to volumes managed by this storage group. |
@odata.id | string read-only |
Link to a Volume resource. See the Links section and the Volume schema for details. |
} ] |
This action shall be used to establish a replication relationship by assigning an existing consistency group to serve as a target replica for an existing source consistency group.
URIs:
/redfish/v1/StorageServices/{StorageServiceId}/ConsistencyGroups/{ConsistencyGroupId}/Actions/ConsistencyGroup.AssignReplicaTarget /redfish/v1/StorageServices/{StorageServiceId}/Volumes/{VolumeId}/ConsistencyGroups/{ConsistencyGroupId}/Actions/ConsistencyGroup.AssignReplicaTarget /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/ConsistencyGroups/{ConsistencyGroupId}/Actions/ConsistencyGroup.AssignReplicaTarget
Parameters
The parameters for the action (which can be included in the POST body to the URI shown in the ‘target’ property of the action) are summarized in Table 23.
Parameter | Type | Notes |
---|---|---|
ReplicaType | string (enum) required |
This parameter shall contain the type of replica relationship to be created. For the possible property values, see ReplicaType in Property details. |
ReplicaUpdateMode | string (enum) required |
This parameter shall specify the replica update mode. For the possible property values, see ReplicaUpdateMode in Property details. |
TargetConsistencyGroup | string required |
This parameter shall contain the Uri to the existing consistency group. |
This action shall be used to create a new consistency group resource to provide expanded data protection through a replica relationship with the specified source consistency group.
URIs:
/redfish/v1/StorageServices/{StorageServiceId}/ConsistencyGroups/{ConsistencyGroupId}/Actions/ConsistencyGroup.CreateReplicaTarget /redfish/v1/StorageServices/{StorageServiceId}/Volumes/{VolumeId}/ConsistencyGroups/{ConsistencyGroupId}/Actions/ConsistencyGroup.CreateReplicaTarget /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/ConsistencyGroups/{ConsistencyGroupId}/Actions/ConsistencyGroup.CreateReplicaTarget
Parameters
The parameters for the action (which can be included in the POST body to the URI shown in the ‘target’ property of the action) are summarized in Table 24.
Parameter | Type | Notes |
---|---|---|
ConsistencyGroupName | string required |
This parameter shall contain the Name for the target consistency group. |
ReplicaType | string (enum) required |
This parameter shall contain the type of replica relationship to be created. For the possible property values, see ReplicaType in Property details. |
ReplicaUpdateMode | string (enum) required |
This parameter shall specify the replica update mode. For the possible property values, see ReplicaUpdateMode in Property details. |
TargetStoragePool | string required |
This parameter shall contain the Uri to the existing StoragePool in which to create the target consistency group. |
This action shall be used to disable data synchronization between a source and target consistency group, remove the replication relationship, and optionally delete the target consistency group.
URIs:
/redfish/v1/StorageServices/{StorageServiceId}/ConsistencyGroups/{ConsistencyGroupId}/Actions/ConsistencyGroup.RemoveReplicaRelationship /redfish/v1/StorageServices/{StorageServiceId}/Volumes/{VolumeId}/ConsistencyGroups/{ConsistencyGroupId}/Actions/ConsistencyGroup.RemoveReplicaRelationship /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/ConsistencyGroups/{ConsistencyGroupId}/Actions/ConsistencyGroup.RemoveReplicaRelationship
Parameters
The parameters for the action (which can be included in the POST body to the URI shown in the ‘target’ property of the action) are summarized in Table 25.
Parameter | Type | Notes |
---|---|---|
DeleteTargetConsistencyGroup | boolean optional |
This parameter shall indicate whether or not to delete the target consistency group as part of the operation. If not specified, the system should use its default behavior. |
TargetConsistencyGroup | string required |
This parameter shall contain the Uri to the existing target consistency group. |
This action shall be used to resume the active data synchronization between a source and target consistency group, without otherwise altering the replication relationship.
URIs:
/redfish/v1/StorageServices/{StorageServiceId}/ConsistencyGroups/{ConsistencyGroupId}/Actions/ConsistencyGroup.ResumeReplication /redfish/v1/StorageServices/{StorageServiceId}/Volumes/{VolumeId}/ConsistencyGroups/{ConsistencyGroupId}/Actions/ConsistencyGroup.ResumeReplication /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/ConsistencyGroups/{ConsistencyGroupId}/Actions/ConsistencyGroup.ResumeReplication
Parameters
The parameters for the action (which can be included in the POST body to the URI shown in the ‘target’ property of the action) are summarized in Table 26.
Parameter | Type | Notes |
---|---|---|
TargetConsistencyGroup | string required |
This parameter shall contain the Uri to the existing target consistency group. |
This action shall be used to reverse the replication relationship between a source and target consistency group.
URIs:
/redfish/v1/StorageServices/{StorageServiceId}/ConsistencyGroups/{ConsistencyGroupId}/Actions/ConsistencyGroup.ReverseReplicationRelationship /redfish/v1/StorageServices/{StorageServiceId}/Volumes/{VolumeId}/ConsistencyGroups/{ConsistencyGroupId}/Actions/ConsistencyGroup.ReverseReplicationRelationship /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/ConsistencyGroups/{ConsistencyGroupId}/Actions/ConsistencyGroup.ReverseReplicationRelationship
Parameters
The parameters for the action (which can be included in the POST body to the URI shown in the ‘target’ property of the action) are summarized in Table 27.
Parameter | Type | Notes |
---|---|---|
TargetConsistencyGroup | string required |
This parameter shall contain the Uri to the existing target consistency group. |
This action shall be used to split the replication relationship and suspend data synchronization between a source and target consistency group.
URIs:
/redfish/v1/StorageServices/{StorageServiceId}/ConsistencyGroups/{ConsistencyGroupId}/Actions/ConsistencyGroup.SplitReplication /redfish/v1/StorageServices/{StorageServiceId}/Volumes/{VolumeId}/ConsistencyGroups/{ConsistencyGroupId}/Actions/ConsistencyGroup.SplitReplication /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/ConsistencyGroups/{ConsistencyGroupId}/Actions/ConsistencyGroup.SplitReplication
Parameters
The parameters for the action (which can be included in the POST body to the URI shown in the ‘target’ property of the action) are summarized in Table 28.
Parameter | Type | Notes |
---|---|---|
TargetConsistencyGroup | string required |
This parameter shall contain the Uri to the existing target consistency group. |
This action shall be used to suspend active data synchronization between a source and target consistency group, without otherwise altering the replication relationship.
URIs:
/redfish/v1/StorageServices/{StorageServiceId}/ConsistencyGroups/{ConsistencyGroupId}/Actions/ConsistencyGroup.SuspendReplication /redfish/v1/StorageServices/{StorageServiceId}/Volumes/{VolumeId}/ConsistencyGroups/{ConsistencyGroupId}/Actions/ConsistencyGroup.SuspendReplication /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/ConsistencyGroups/{ConsistencyGroupId}/Actions/ConsistencyGroup.SuspendReplication
Parameters
The parameters for the action (which can be included in the POST body to the URI shown in the ‘target’ property of the action) are summarized in Table 29.
Parameter | Type | Notes |
---|---|---|
TargetConsistencyGroup | string required |
This parameter shall contain the Uri to the existing target consistency group. |
The property shall set the consistency method used by this group.
The values defined for the ConsistencyMethod ENUM are summarized in Table 30.
string | Description |
---|---|
HotStandby | Supports consistency method commonly orchestrated using application-specific code. |
Other | Supports consistency method orchestrated using vendor-specific code. |
VASA | Supports VMware consistency requirements, such as for VASA and VVOLs. |
VDI | Supports Microsoft virtual backup device interface (VDI). |
VSS | Supports Microsoft VSS. |
The property shall set the consistency type used by this group.
The values defined for the ConsistencyType ENUM are summarized in Table 31.
string | Description |
---|---|
ApplicationConsistent | Orchestration exists to either flush or halt pending IO to ensure operations occur in a transactionally consistent manner. |
CrashConsistent | Requested operations are either triggered or instituted without regard to pending IO. |
This parameter shall contain the type of replica relationship to be created.
The values defined for the ReplicaType ENUM are summarized in Table 32.
string | Description |
---|---|
Clone | This enumeration literal shall indicate that replication shall create a point in time, full copy the source. |
Mirror | This enumeration literal shall indicate that replication shall create and maintain a copy of the source. |
Snapshot | This enumeration literal shall indicate that replication shall create a point in time, virtual copy of the source. |
TokenizedClone | This enumeration literal shall indicate that replication shall create a token based clone. |
This parameter shall specify the replica update mode.
The values defined for the ReplicaUpdateMode ENUM are summarized in Table 33.
string | Description |
---|---|
Active | This enumeration literal shall indicate Active-Active (i.e. bidirectional) synchronous updates. |
Adaptive | This enumeration literal shall indicate that an implementation may switch between synchronous and asynchronous modes. |
Asynchronous | This enumeration literal shall indicate Asynchronous updates. |
Synchronous | This enumeration literal shall indicate Synchronous updates. |
/redfish/v1/StorageServices/{StorageServiceId}/ConsistencyGroups /redfish/v1/StorageServices/{StorageServiceId}/Volumes/{VolumeId}/ConsistencyGroups /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/ConsistencyGroups
The properties defined for the ConsistencyGroupCollection object are summarized in Table 34.
Property | Type | Notes |
---|---|---|
@odata.etag | string read-only |
The value of this property shall be a string that is defined by the ETag HTTP header definition in RFC7232. |
Description | string read-only (null) |
This object represents the description of this resource. The resource values shall comply with the Redfish Specification-described requirements. |
Members [ { | array | The value of each member entry shall reference a ConsistencyGroup resource. |
@odata.id | string read-only |
Link to a ConsistencyGroup resource. See the Links section and the ConsistencyGroup schema for details. |
} ] | ||
Members@odata.nextLink | string read-only |
The value of this property shall be a URI to a resource, with the same @odata.type, containing the next set of partial members. |
Name | string read-only |
This object represents the name of this resource or array member. The resource values shall comply with the Redfish Specification-described requirements. This string value shall be of the ‘Name’ reserved word format. |
Oem {} | object | This property shall contain the OEM extensions. All values for properties contained in this object shall conform to the Redfish Specification-described requirements. See the Resource schema for details on this property. |
The capabilities to protect data from loss by the use of a replica. The requirements shall be met collectively by the communication path and the replica. There should be one instance associated to a class of service for each replica. Each replica independently should have a class of service that describes its characteristics.
/redfish/v1/StorageServices/{StorageServiceId}/DataProtectionLoSCapabilities
The properties defined for the DataProtectionLoSCapabilities 1.1.3 object are summarized in Table 35.
Property | Type | Notes |
---|---|---|
@odata.etag | string read-only |
The value of this property shall be a string that is defined by the ETag HTTP header definition in RFC7232. |
Actions (v1.1+) {} | object | The Actions property shall contain the available actions for this resource. |
Description | string read-only (null) |
This object represents the description of this resource. The resource values shall comply with the Redfish Specification-described requirements. |
Id | string read-only required |
This property represents an identifier for the resource. The resource values shall comply with the Redfish Specification-described requirements. |
Identifier {} | object | The value shall be unique within the managed ecosystem. See the v1_9_1.v1_9_1 schema for details on this property. |
Property | Type | Notes |
---|---|---|
Links { | object | The value of this property shall contains links to other resources that are not contained in this resource. |
Oem {} | object | This property shall contain the OEM extensions. All values for properties contained in this object shall conform to the Redfish Specification-described requirements. See the Resource schema for details on this property. |
SupportedReplicaOptions [ { | array | The collection shall contain known and supported replica Classes of Service. |
@odata.id | string read-only |
The value of this property shall be the unique identifier for the resource and it shall be of the form defined in the Redfish specification. |
} ] | ||
SupportedReplicaOptions@odata.count | integer read-only |
The value of this property shall be an integer representing the number of items in a collection. |
} | ||
Name | string read-only required |
This object represents the name of this resource or array member. The resource values shall comply with the Redfish Specification-described requirements. This string value shall be of the ‘Name’ reserved word format. |
Property | Type | Notes |
---|---|---|
Oem {} | object | This property shall contain the OEM extensions. All values for properties that this object contains shall conform to the Redfish Specification-described requirements. See the Resource schema for details on this property. |
SupportedLinesOfService [ { | array | The collection shall contain known and supported DataProtectionLinesOfService. |
@odata.id | string read-only |
The value of this property shall be the unique identifier for the resource and it shall be of the form defined in the Redfish specification. |
} ] | ||
SupportedMinLifetimes [ ] | array (string, null) read-write |
The value of each entry shall be an ISO 8601 duration that specifies the minimum lifetime required for the replica. |
SupportedRecoveryGeographicObjectives [ ] | array (string (enum)) read-write (null) |
The value of each entry shall specify a supported failure domain. The enumeration literals of this enumeration shall represent a geographic scope in which all components within that scope have similar vulnerabilities. For the possible property values, see SupportedRecoveryGeographicObjectives in Property details. |
Property | Type | Notes |
---|---|---|
SupportedRecoveryPointObjectiveTimes [ ] | array (string, null) read-write |
The value of each entry shall specify a supported ISO 8601 time interval defining the maximum source information that may be lost on failure. In the case that IsIsolated = false, failure of the domain is not a consideration. |
SupportedRecoveryTimeObjectives [ ] | array (string (enum)) read-write (null) |
The value of each entry shall specify an enumerated value that indicates a supported expectation for the time required to access an alternate replica. In the case that IsIsolated = false, failure of the domain is not a consideration. The enumeration literals shall represent the relative time required to make a replica available as a source. For the possible property values, see SupportedRecoveryTimeObjectives in Property details. |
SupportedReplicaTypes [ ] | array (string (enum)) read-write (null) |
The value of each entry shall specify a supported replica type. The enumeration literals may be used to specify the intended outcome of the replication. For the possible property values, see SupportedReplicaTypes in Property details. |
SupportsIsolated | boolean read-write (null) |
A value of true shall indicate that allocating a replica in a separate fault domain is supported. The default value for this property is false. |
The value of each entry shall specify a supported failure domain. The enumeration literals of this enumeration shall represent a geographic scope in which all components within that scope have similar vulnerabilities.
The values defined for the SupportedRecoveryGeographicObjectives ENUM are summarized in Table 36.
string | Description |
---|---|
Datacenter | A facility that provides communication, power, or cooling infrastructure to a co-located set of servers, networking and storage. |
Rack | A container within a datacenter that provides communication, power, or cooling to a set of components. |
RackGroup | A set of racks that may share common communication, power, or cooling. |
Region | A set of resources that are required to be either geographically or politically isolated from resources not in the resources. |
Row | A set of adjacent racks or rackgroups that may share common communication, power, or cooling. |
Server | Components of a CPU/memory complex that share the same infrastructure. |
The value of each entry shall specify an enumerated value that indicates a supported expectation for the time required to access an alternate replica. In the case that IsIsolated = false, failure of the domain is not a consideration. The enumeration literals shall represent the relative time required to make a replica available as a source.
The values defined for the SupportedRecoveryTimeObjectives ENUM are summarized in Table 37.
string | Description |
---|---|
Nearline | Access to a replica shall be consistent with switching access to a different path through a different front-end interconnection infrastructure. Some inconsistency may occur. A restore step may be required before recovery can commence. |
Offline | Access to a replica may take a significant amount of time. No direct connection to the replica is assumed. Some inconsistency loss may occur. A restore step is likely to be required. |
OnlineActive | Access to synchronous replicas shall be instantaneous. |
OnlinePassive | Access to a synchronous replica shall be consistent with switching access to a different path the same front-end interconnect. A restore step shall not be required. |
The value of each entry shall specify a supported replica type. The enumeration literals may be used to specify the intended outcome of the replication.
The values defined for the SupportedReplicaTypes ENUM are summarized in Table 38.
string | Description |
---|---|
Clone | This enumeration literal shall indicate that replication shall create a point in time, full copy the source. |
Mirror | This enumeration literal shall indicate that replication shall create and maintain a copy of the source. |
Snapshot | This enumeration literal shall indicate that replication shall create a point in time, virtual copy of the source. |
TokenizedClone | This enumeration literal shall indicate that replication shall create a token based clone. |
This resource may be used to describe data security capabilities.
/redfish/v1/StorageServices/{StorageServiceId}/DataSecurityLoSCapabilities
The properties defined for the DataSecurityLoSCapabilities 1.1.3 object are summarized in Table 39.
Property | Type | Notes |
---|---|---|
@odata.etag | string read-only |
The value of this property shall be a string that is defined by the ETag HTTP header definition in RFC7232. |
Actions (v1.1+) {} | object | The Actions property shall contain the available actions for this resource. |
Description | string read-only (null) |
This object represents the description of this resource. The resource values shall comply with the Redfish Specification-described requirements. |
Id | string read-only required |
This property represents an identifier for the resource. The resource values shall comply with the Redfish Specification-described requirements. |
Identifier {} | object | The value identifies this resource. The value shall be unique within the managed ecosystem. See the v1_9_1.v1_9_1 schema for details on this property. |
Property | Type | Notes |
---|---|---|
Name | string read-only required |
This object represents the name of this resource or array member. The resource values shall comply with the Redfish Specification-described requirements. This string value shall be of the ‘Name’ reserved word format. |
Oem {} | object | This property shall contain the OEM extensions. All values for properties that this object contains shall conform to the Redfish Specification-described requirements. See the Resource schema for details on this property. |
SupportedAntivirusEngineProviders [ ] | array (string, null) read-write |
The entry values shall specify supported AntiVirus providers. |
SupportedAntivirusScanPolicies [ ] | array (string (enum)) read-write (null) |
The enumeration literal shall specify supported policies that trigger an AntiVirus scan. The enumberation literals shall specify types of antivirus scan triggers. For the possible property values, see SupportedAntivirusScanPolicies in Property details. |
Property | Type | Notes |
---|---|---|
SupportedChannelEncryptionStrengths [ ] | array (string (enum)) read-write (null) |
The enumeration literal shall specify supported key sizes in a symmetric encryption algorithm (AES) for transport channel encryption. The enumeration literals shall specify Key sizes in a symmetric encryption algorithm, (see NIST SP 800-57 part 1 (http:/csrc.nist.gov/publications/nistpubs/800-57/sp800-57_part1_rev3_general.pdf). For the possible property values, see SupportedChannelEncryptionStrengths in Property details. |
SupportedDataSanitizationPolicies [ ] | array (string (enum)) read-write (null) |
The enumeration literal shall specify supported data sanitization policies. The enumberation literals shall specify types of data sanitization policies. For the possible property values, see SupportedDataSanitizationPolicies in Property details. |
SupportedHostAuthenticationTypes [ ] | array (string (enum)) read-write (null) |
The enumeration literal shall specify supported authentication types for hosts (servers) or initiator endpoints. The enumeration literals shall specify authentication algorithms. For the possible property values, see SupportedHostAuthenticationTypes in Property details. |
SupportedLinesOfService [ { | array | The collection shall contain supported DataSecurity service options. |
@odata.id | string read-only |
The value of this property shall be the unique identifier for the resource and it shall be of the form defined in the Redfish specification. |
} ] |
Property | Type | Notes |
---|---|---|
SupportedMediaEncryptionStrengths [ ] | array (string (enum)) read-write (null) |
The enumeration literal shall specify supported key sizes in a symmetric encryption algorithm (AES) for media encryption. |
The enumeration literals shall specify Key sizes in a symmetric encryption algorithm, (see NIST SP 800-57 part 1 (http:/csrc.nist.gov/publications/nistpubs/800-57/sp800-57_part1_rev3_general.pdf). For the possible property values, see SupportedMediaEncryptionStrengths in Property details. | ||
SupportedSecureChannelProtocols [ ] | array (string (enum)) read-write (null) |
The enumeration literal shall specify supported protocols that provide encrypted communication. The enumeration literals shall specify types of Secure channel protocols. For the possible property values, see SupportedSecureChannelProtocols in Property details. |
SupportedUserAuthenticationTypes [ ] | array (string (enum)) read-write (null) |
The enumeration literal shall specify supported authentication types for users (or programs). The enumeration literals shall specify authentication algorithms. For the possible property values, see SupportedUserAuthenticationTypes in Property details. |
The enumeration literal shall specify supported policies that trigger an AntiVirus scan. The enumberation literals shall specify types of antivirus scan triggers.
The values defined for the SupportedAntivirusScanPolicies ENUM are summarized in Table 40.
string | Description |
---|---|
None | This enumeration literal specifies No trigger. |
OnFirstRead | This enumeration literal specifies to trigger on first read. |
OnPatternUpdate | This enumeration literal specifies to trigger on antivirus pattern file update. |
OnRename | This enumeration literal specifies to trigger on object rename. |
OnUpdate | This enumeration literal specifies to trigger on object update. |
The enumeration literal shall specify supported key sizes in a symmetric encryption algorithm (AES) for transport channel encryption. The enumeration literals shall specify Key sizes in a symmetric encryption algorithm, (see NIST SP 800-57 part 1 (http:/csrc.nist.gov/publications/nistpubs/800-57/sp800-57_part1_rev3_general.pdf).
The values defined for the SupportedChannelEncryptionStrengths ENUM are summarized in Table 41.
string | Description |
---|---|
Bits_0 | This enumeration literal specifies that there is no key. |
Bits_112 | This enumeration literal specifies a 3DES 112 bit key. |
Bits_128 | This enumeration literal specifies an AES 128 bit key. |
Bits_192 | This enumeration literal specifies an AES 192 bit key. |
Bits_256 | This enumeration literal specifies an AES 256 bit key. |
The enumeration literal shall specify supported data sanitization policies. The enumberation literals shall specify types of data sanitization policies.
The values defined for the SupportedDataSanitizationPolicies ENUM are summarized in Table 42.
string | Description |
---|---|
Clear | This enumeration literal specifies to sanitize data in all user-addressable storage locations for protection against simple non-invasive data recovery techniques. |
CryptographicErase | This enumeration literal specifies to leverages the encryption of target data by enabling sanitization of the target data’s encryption key. This leaves only the ciphertext remaining on the media, effectively sanitizing the data by preventing read-access. For more information, see NIST800-88 and ISO/IEC 27040. |
None | This enumeration literal specifies no sanitization. |
The enumeration literal shall specify supported authentication types for hosts (servers) or initiator endpoints. The enumeration literals shall specify authentication algorithms.
The values defined for the SupportedHostAuthenticationTypes ENUM are summarized in Table 43.
string | Description |
---|---|
None | This enumeration literal specifies No authentication. |
Password | This enumeration literal specifies Password/shared-secret: Absent an distributed authentication infrastructure, this is what is typically done. |
PKI | This enumeration literal specifies a Public Key Infrastructure. Customers with the highest assurance requirements roll PKI out to hosts and users (it is more common for hosts than users. User PKI-based authentication has significant operational complications and administrative overheads, e.g., smart cards may be involved. |
Ticket | This enumeration literal specifies Ticket-based (e.g., Kerberos): This is the most common class of authentication infrastructure used in enterprises. Kerberos is the best known example, and Windows usage of that via Active Directory is so widely deployed as to be a de facto standard. In other areas (e.g., academia) there are comparable ticket-based systems. |
The enumeration literal shall specify supported key sizes in a symmetric encryption algorithm (AES) for media encryption. The enumeration literals shall specify Key sizes in a symmetric encryption algorithm, (see NIST SP 800-57 part 1 (http:/csrc.nist.gov/publications/nistpubs/800-57/sp800-57_part1_rev3_general.pdf).
The values defined for the SupportedMediaEncryptionStrengths ENUM are summarized in Table 44.
string | Description |
---|---|
Bits_0 | This enumeration literal specifies that there is no key. |
Bits_112 | This enumeration literal specifies a 3DES 112 bit key. |
Bits_128 | This enumeration literal specifies an AES 128 bit key. |
Bits_192 | This enumeration literal specifies an AES 192 bit key. |
Bits_256 | This enumeration literal specifies an AES 256 bit key. |
The enumeration literal shall specify supported protocols that provide encrypted communication. The enumeration literals shall specify types of Secure channel protocols.
The values defined for the SupportedSecureChannelProtocols ENUM are summarized in Table 45.
string | Description |
---|---|
IPsec | This enumeration literal specifies Internet Protocol Security (IPsec), as defined by IETF RFC 2401 |
None | This enumeration literal specifies no encryption. |
RPCSEC_GSS | This enumeration literal specifies RPC access to the Generic Security Services Application Programming Interface (GSS-API), as defined by IETF RPC 2203. |
TLS | This enumeration literal specifies Transport Layer Security (TLS), as defined by ISO/IEC 20648 |
The enumeration literal shall specify supported authentication types for users (or programs). The enumeration literals shall specify authentication algorithms.
The values defined for the SupportedUserAuthenticationTypes ENUM are summarized in Table 46.
string | Description |
---|---|
None | This enumeration literal specifies No authentication. |
Password | This enumeration literal specifies Password/shared-secret: Absent an distributed authentication infrastructure, this is what is typically done. |
PKI | This enumeration literal specifies a Public Key Infrastructure. Customers with the highest assurance requirements roll PKI out to hosts and users (it is more common for hosts than users. User PKI-based authentication has significant operational complications and administrative overheads, e.g., smart cards may be involved. |
Ticket | This enumeration literal specifies Ticket-based (e.g., Kerberos): This is the most common class of authentication infrastructure used in enterprises. Kerberos is the best known example, and Windows usage of that via Active Directory is so widely deployed as to be a de facto standard. In other areas (e.g., academia) there are comparable ticket-based systems. |
Each instance of DataStorageLoSCapabilities describes capabilities of the system to support various data storage service options.
/redfish/v1/StorageServices/{StorageServiceId}/DataStorageLoSCapabilities
The properties defined for the DataStorageLoSCapabilities 1.2.1 object are summarized in Table 47.
Property | Type | Notes |
---|---|---|
@odata.etag | string read-only |
The value of this property shall be a string that is defined by the ETag HTTP header definition in RFC7232. |
Actions (v1.1+) {} | object | The Actions property shall contain the available actions for this resource. |
Description | string read-only (null) |
This object represents the description of this resource. The resource values shall comply with the Redfish Specification-described requirements. |
Id | string read-only required |
This property represents an identifier for the resource. The resource values shall comply with the Redfish Specification-described requirements. |
Identifier {} | object | The value shall be unique within the managed ecosystem. See the v1_9_1.v1_9_1 schema for details on this property. |
MaximumRecoverableCapacitySourceCount (v1.2+) | integer read-write (null) |
The maximum number of capacity source resources that can be supported for the purpose of recovery when in the event that an equivalent capacity source resource fails. |
Property | Type | Notes |
---|---|---|
Name | string read-only required |
This object represents the name of this resource or array member. The resource values shall comply with the Redfish Specification-described requirements. This string value shall be of the ‘Name’ reserved word format. |
Oem {} | object | This property shall contain the OEM extensions. All values for properties that this object contains shall conform to the Redfish Specification-described requirements. See the Resource schema for details on this property. |
SupportedAccessCapabilities [ ] | array (string (enum)) read-write (null) |
Each entry specifies a storage access capability. StorageAccessCapability enumeration literals may be used to describe abilities to read or write storage. For the possible property values, see SupportedAccessCapabilities in Property details. |
SupportedLinesOfService [ { | array | The collection shall contain known and supported DataStorageLinesOfService. |
@odata.id | string read-only |
The value of this property shall be the unique identifier for the resource and it shall be of the form defined in the Redfish specification. |
} ] | ||
SupportedProvisioningPolicies [ ] | array (string (enum)) read-write (null) |
This collection specifies supported storage allocation policies. The enumeration literals may be used to specify space provisioning policy. For the possible property values, see SupportedProvisioningPolicies in Property details. |
Property | Type | Notes |
---|---|---|
SupportedRecoveryTimeObjectives [ ] | array (string (enum)) read-write (null) |
This collection specifies supported expectations for time to access the primary store after recovery. The enumeration literals shall represent the relative time required to make a replica available as a source. For the possible property values, see SupportedRecoveryTimeObjectives in Property details. |
SupportsSpaceEfficiency | boolean read-write (null) |
The value specifies whether storage compression or deduplication is supported. The default value for this property is false. |
Each entry specifies a storage access capability. StorageAccessCapability enumeration literals may be used to describe abilities to read or write storage.
The values defined for the SupportedAccessCapabilities ENUM are summarized in Table 48.
string | Description |
---|---|
Append | This enumeration literal shall indicate that the storage may be written only to append. |
Execute | This value shall indicate that Execute access is allowed by the file share. |
Read | This enumeration literal shall indicate that the storage may be read. |
Streaming | This enumeration literal shall indicate that the storage may be read sequentially. |
Write | This enumeration literal shall indicate that the storage may be written multiple times. |
WriteOnce | This enumeration literal shall indicate that the storage may be written only once. |
This collection specifies supported storage allocation policies. The enumeration literals may be used to specify space provisioning policy.
The values defined for the SupportedProvisioningPolicies ENUM are summarized in Table 49.
string | Description |
---|---|
Fixed | This enumeration literal specifies storage shall be fully allocated. |
Thin | This enumeration literal specifies storage may be over allocated. |
This collection specifies supported expectations for time to access the primary store after recovery. The enumeration literals shall represent the relative time required to make a replica available as a source.
The values defined for the SupportedRecoveryTimeObjectives ENUM are summarized in Table 50.
string | Description |
---|---|
Nearline | Access to a replica shall be consistent with switching access to a different path through a different front-end interconnection infrastructure. Some inconsistency may occur. A restore step may be required before recovery can commence. |
Offline | Access to a replica may take a significant amount of time. No direct connection to the replica is assumed. Some inconsistency loss may occur. A restore step is likely to be required. |
OnlineActive | Access to synchronous replicas shall be instantaneous. |
OnlinePassive | Access to a synchronous replica shall be consistent with switching access to a different path the same front-end interconnect. A restore step shall not be required. |
/redfish/v1/StorageServices/{StorageServiceId}/Drives /redfish/v1/StorageServices/{StorageServiceId}/FileSystems/{FileSystemId}/CapacitySources/{CapacitySourceId}/ProvidingDrives /redfish/v1/StorageServices/{StorageServiceId}/StoragePools/{StoragePoolId}/CapacitySources/{CapacitySourceId}/ProvidingDrives /redfish/v1/StorageServices/{StorageServiceId}/Volumes/{VolumeId}/CapacitySources/{CapacitySourceId}/ProvidingDrives
The properties defined for the DriveCollection object are summarized in Table 51.
Property | Type | Notes |
---|---|---|
@odata.etag | string read-only |
The value of this property shall be a string that is defined by the ETag HTTP header definition in RFC7232. |
Description | string read-only (null) |
This object represents the description of this resource. The resource values shall comply with the Redfish Specification-described requirements. |
Members [ { | array | The value of each entry of this property shall reference a Drive resource. |
@odata.id | string read-only |
The value of this property shall be the unique identifier for the resource and it shall be of the form defined in the Redfish specification. |
} ] | ||
Members@odata.nextLink | string read-only |
The value of this property shall be a URI to a resource, with the same @odata.type, containing the next set of partial members. |
Name | string read-only |
This object represents the name of this resource or array member. The resource values shall comply with the Redfish Specification-described requirements. This string value shall be of the ‘Name’ reserved word format. |
Property | Type | Notes |
---|---|---|
Oem {} | object | This property shall contain the OEM extensions. All values for properties contained in this object shall conform to the Redfish Specification-described requirements. See the Resource schema for details on this property. |
An EndpointGroup represents a collection of endpoints that are managed as a unit. By grouping together a collection of Endpoints, the EndpointGroup allows a collection of entities from differing sources or hosts to be manipulated uniformly and efficiently.
For any given EndpointGroup, all of its endpoints act exclusively as either server endpoints or client endpoints, as indicated by the value of the EndpointType property. Similarly, each Endpoint within a group has the same AccessState.
A server or client may define multiple EndpointGroup entities that access the same set of resources or functionality. A group may be designated as preferred, which signifies that access should be directed through its members in preference to the Endpoints listed in other EndpointGroups. If the value of EndpointType is Server, an EndpointGroup entity can be used to represent target port group as defined by SCSI. In that mode, the value of the TargetEndpointGroupIdentifier should correspond to the target port group number. (See clause “Device Identification VPD page” as defined in the SCSI Primary Commands specification.)
/redfish/v1/StorageServices/{StorageServiceId}/EndpointGroups/{EndpointGroupId}
The properties defined for the EndpointGroup 1.2.0 object are summarized in Table 52.
Property | Type | Notes |
---|---|---|
@odata.etag | string read-only |
The value of this property shall be a string that is defined by the ETag HTTP header definition in RFC7232. |
AccessState | string (enum) read-write (null) |
Access to all associated resources through all aggregated endpoints shall share this access state. For the possible property values, see AccessState in Property details. |
Actions (v1.1+) {} | object | The Actions property shall contain the available actions for this resource. |
Description | string read-only (null) |
This object represents the description of this resource. The resource values shall comply with the Redfish Specification-described requirements. |
Endpoints [ { | array | The value of each entry shall reference an Endpoint resource. |
@odata.id | string read-only |
The value of this property shall be the unique identifier for the resource and it shall be of the form defined in the Redfish specification. |
} ] | ||
GroupType | string (enum) read-write (null) |
The group contains only endpoints of a given type Client/Initiator or Server/Target. If this endpoint group represents a SCSI target group, the value of GroupType shall be Server. For the possible property values, see GroupType in Property details. |
Id | string read-only required |
This property represents an identifier for the resource. The resource values shall comply with the Redfish Specification-described requirements. |
Property | Type | Notes |
---|---|---|
Identifier {} | object | The value shall be unique within the managed ecosystem. See the v1_9_1.v1_9_1 schema for details on this property. |
Links { | object | This structure shall contain references to resources that are not contained within this resource. |
Oem {} | object | This property shall contain the OEM extensions. All values for properties contained in this object shall conform to the Redfish Specification-described requirements. See the Resource schema for details on this property. |
} | ||
Name | string read-only required |
This object represents the name of this resource or array member. The resource values shall comply with the Redfish Specification-described requirements. This string value shall be of the ‘Name’ reserved word format. |
Oem {} | object | This property shall contain the OEM extensions. All values for properties that this object contains shall conform to the Redfish Specification-described requirements. See the Resource schema for details on this property. |
Preferred | boolean read-write (null) |
A value of True in this property shall indicate that access to the associated resource through the endpoints in this endpoint group is preferred over access through other endpoints. The default value for this property is false. |
Property | Type | Notes |
---|---|---|
TargetEndpointGroupIdentifier | integer read-write (null) |
If this endpoint group represents a SCSI target group, the value of this property shall contain a SCSI defined identifier for this group, which corresponds to the TARGET PORT GROUP field in the REPORT TARGET PORT GROUPS response and the TARGET PORT GROUP field in an INQUIRY VPD page 85 response, type 5h identifier. See the INCITS SAM-5 specification. |
Access to all associated resources through all aggregated endpoints shall share this access state.
The values defined for the AccessState ENUM are summarized in Table 53.
string | Description |
---|---|
NonOptimized | In the context of this enumeration literal, each endpoint shall be in an Active/NonOptimized state. |
Optimized | In the context of this enumeration literal, each endpoint shall be in an Active/Optimized state. |
Standby | In the context of this enumeration literal, each endpoint shall be in a Standby state. |
Transitioning | In the context of this enumeration literal, at least one endpoint shall be transitioning to a new AccesState. |
Unavailable | In the context of this enumeration literal, each endpoint shall be in an unavailable state. |
The group contains only endpoints of a given type Client/Initiator or Server/Target. If this endpoint group represents a SCSI target group, the value of GroupType shall be Server.
The values defined for the GroupType ENUM are summarized in Table 54.
string | Description |
---|---|
Client | The group contains the client (initiator) endpoints. |
Server | The group contains the server (target) endpoints. |
/redfish/v1/StorageServices/{StorageServiceId}/EndpointGroups
The properties defined for the EndpointGroupCollection object are summarized in Table 55.
Property | Type | Notes |
---|---|---|
@odata.etag | string read-only |
The value of this property shall be a string that is defined by the ETag HTTP header definition in RFC7232. |
Description | string read-only (null) |
This object represents the description of this resource. The resource values shall comply with the Redfish Specification-described requirements. |
Members [ { | array | The value of each member entry shall reference an endpoint group resource. |
@odata.id | string read-only |
Link to a EndpointGroup resource. See the Links section and the EndpointGroup schema for details. |
} ] | ||
Members@odata.nextLink | string read-only |
The value of this property shall be a URI to a resource, with the same @odata.type, containing the next set of partial members. |
Property | Type | Notes |
---|---|---|
Name | string read-only |
This object represents the name of this resource or array member. The resource values shall comply with the Redfish Specification-described requirements. This string value shall be of the ‘Name’ reserved word format. |
Oem {} | object | This property shall contain the OEM extensions. All values for properties contained in this object shall conform to the Redfish Specification-described requirements. See the Resource schema for details on this property. |
This resource shall be used to represent a Feature registry for a Redfish implementation.
The properties defined for the FeaturesRegistry 1.0.0 object are summarized in Table 56.
Property | Type | Notes |
---|---|---|
@odata.etag | string read-only |
The value of this property shall be a string that is defined by the ETag HTTP header definition in RFC7232. |
Actions {} | object | The Actions property shall contain the available actions for this resource. |
Description | string read-only (null) |
This object represents the description of this resource. The resource values shall comply with the Redfish Specification-described requirements. |
Property | Type | Notes |
---|---|---|
Features { | object * required* |
The pattern property shall represent the suffix to be used in the FeatureId and shall be unique within this message registry. |
(pattern) { | object | Property names follow regular expression pattern “[A-Za-z0-9]+” |
CorrespondingProfileDefinition | string read-only required (null) |
If present, the value shall define a profile definition that contains the named profile declaration. |
Description | string read-only required (null) |
The value shall be a detailed description of the feature. |
FeatureName | string read-only required (null) |
The value shall be the unique name of the feature prefixed by the defining organization separated by a period (e.g. ‘vendor.feature’). |
Version | string read-only required (null) |
The value shall uniquely identify the version of the feature, using the major.minor.errata format. |
} |
Property | Type | Notes |
---|---|---|
(pattern) {} [ ] | array, boolean, integer, number, object, string (null) |
Property names follow regular expression pattern “^([a-zA-Z_][a-zA-Z0-9_]*)?@(odata|Redfish|Message)\.[a-zA-Z_][a-zA-Z0-9_]*$” |
} | ||
Id | string read-only required |
This property represents an identifier for the resource. The resource values shall comply with the Redfish Specification-described requirements. |
Language | string read-only required |
The value of this property shall be a string consisting of an RFC 5646 language code. |
Name | string read-only required |
This object represents the name of this resource or array member. The resource values shall comply with the Redfish Specification-described requirements. This string value shall be of the ‘Name’ reserved word format. |
Oem {} | object | This property shall contain the OEM extensions. All values for properties that this object contains shall conform to the Redfish Specification-described requirements. See the Resource schema for details on this property. |
OwningEntity | string read-only required |
The value of this property shall be a string that represents the publisher of this registry. |
RegistryPrefix | string read-only required |
The value of this property shall be the prefix used in IDs which uniquely identifies all of the Features in this registry as belonging to this registry. |
RegistryVersion | string read-only required |
The value of this property shall be the version of this message registry. The format of this string shall be of the format majorversion.minorversion.errata. |
This resource shall be used to represent a shared set of files with a common directory structure.
The properties defined for the FileShare 1.1.3 object are summarized in Table 57.
Property | Type | Notes |
---|---|---|
@odata.etag | string read-only |
The value of this property shall be a string that is defined by the ETag HTTP header definition in RFC7232. |
Actions (v1.1+) {} | object | The Actions property shall contain the available actions for this resource. |
CASupported | boolean read-write (null) |
The value of this property shall indicate that Continuous Availability is supported. Client/Server mediated recovery from network and server failure with application transparency. This property shall be NULL unless the FileSharingProtocols property includes SMB. The default value for this property is false. |
DefaultAccessCapabilities [ ] | array (string (enum)) read-only (null) |
The value of this property shall be an array containing entries for the default access capabilities for the file share. Each entry shall specify a defaul access privilege. The types of default access can include Read, Write, and/or Execute. StorageAccessCapability enumeration literals may be used to describe abilities to read or write storage. For the possible property values, see DefaultAccessCapabilities in Property details. |
Property | Type | Notes |
---|---|---|
Description | string read-only (null) |
This object represents the description of this resource. The resource values shall comply with the Redfish Specification-described requirements. |
EthernetInterfaces { | object | The value shall be a link to an EthernetInterfaceCollection with members that provide access to the file share. |
@odata.id | string read-only |
The value of this property shall be the unique identifier for the resource and it shall be of the form defined in the Redfish specification. |
} | ||
ExecuteSupport | boolean read-only (null) |
The value of this property shall indicate whether Execute access is supported by the file share. The default value for this property is false. |
FileSharePath | string read-only (null) |
The value of this property shall be a path (relative to the file system root) to the exported file or directory on the file system where this file share is hosted. |
FileShareQuotaType | string (enum) read-write (null) |
If FileShareQuotaType is present, a value of Soft shall specify that quotas are not enforced, and a value of Hard shall specify that writes shall fail if the space consumed would exceed the value of the FileShareTotalQuotaBytes property. For the possible property values, see FileShareQuotaType in Property details. |
FileShareRemainingQuotaBytes | integer (By) read-only (null) |
If present, the value of this property shall indicate the remaining number of bytes that may be consumed by this file share. |
Property | Type | Notes |
---|---|---|
FileShareTotalQuotaBytes | integer (By) read-write (null) |
If present, the value of this property shall indicate the maximum number of bytes that may be consumed by this file share. |
FileSharingProtocols [ ] | array (string (enum)) read-only (null) |
This property shall be an array containing entries for the file sharing protocols supported by this file share. Each entry shall specify a file sharing protocol supported by the file system. The values shall indicate the file sharing protocols supported by the file system. At least one value shall be present. For the possible property values, see FileSharingProtocols in Property details. |
Id | string read-only required |
This property represents an identifier for the resource. The resource values shall comply with the Redfish Specification-described requirements. |
Links { | object | The Links property, as described by the Redfish Specification, shall contain references to resources that are related to, but not contained by (subordinate to), this resource. |
ClassOfService { | object | This value shall be a link to the ClassOfService for this file share. |
@odata.id | string read-only |
The value of this property shall be the unique identifier for the resource and it shall be of the form defined in the Redfish specification. |
} | ||
FileSystem { | object | The value shall be a link to the file system containing the file share. See the FileSystem schema for details on this property. |
@odata.id | string read-only |
Link to a FileSystem resource. See the Links section and the FileSystem schema for details. |
} |
Property | Type | Notes |
---|---|---|
Oem {} | object | This property shall contain the OEM extensions. All values for properties contained in this object shall conform to the Redfish Specification-described requirements. See the Resource schema for details on this property. |
} | ||
LowSpaceWarningThresholdPercents [ ] | array (%) (integer, null) read-write |
This property shall be an array containing entries for the percentages of file share capacity at which low space warning events are be issued. A LOW_SPACE_THRESHOLD_WARNING event shall be triggered each time the remaining file share capacity value becomes less than one of the values in the array. The following shall be true: Across all CapacitySources entries, percent = (SUM(AllocatedBytes) - SUM(ConsumedBytes))/SUM(AllocatedBytes). |
Name | string read-only required |
This object represents the name of this resource or array member. The resource values shall comply with the Redfish Specification-described requirements. This string value shall be of the ‘Name’ reserved word format. |
Oem {} | object | This property shall contain the OEM extensions. All values for properties that this object contains shall conform to the Redfish Specification-described requirements. See the Resource schema for details on this property. |
RemainingCapacityPercent (v1.1+) | integer read-only (null) |
If present, this value shall return ([(SUM(AllocatedBytes) - SUM(ConsumedBytes)]/SUM(AllocatedBytes)) * 100 represented as an integer value. |
Property | Type | Notes |
---|---|---|
RootAccess | boolean read-only (null) |
The value of this property shall indicate whether Root access is allowed by the file share. The default value for this property is false. |
Status {} | object | This value of this property shall indicate the status of the file share. See the Resource schema for details on this property. |
WritePolicy | string (enum) read-only (null) |
The value of this property shall define how writes are replicated to the shared source. For the possible property values, see WritePolicy in Property details. |
The value of this property shall be an array containing entries for the default access capabilities for the file share. Each entry shall specify a defaul access privilege. The types of default access can include Read, Write, and/or Execute. StorageAccessCapability enumeration literals may be used to describe abilities to read or write storage.
The values defined for the DefaultAccessCapabilities ENUM are summarized in Table 58.
string | Description |
---|---|
Append | This enumeration literal shall indicate that the storage may be written only to append. |
Execute | This value shall indicate that Execute access is allowed by the file share. |
Read | This enumeration literal shall indicate that the storage may be read. |
Streaming | This enumeration literal shall indicate that the storage may be read sequentially. |
Write | This enumeration literal shall indicate that the storage may be written multiple times. |
WriteOnce | This enumeration literal shall indicate that the storage may be written only once. |
If FileShareQuotaType is present, a value of Soft shall specify that quotas are not enforced, and a value of Hard shall specify that writes shall fail if the space consumed would exceed the value of the FileShareTotalQuotaBytes property.
The values defined for the FileShareQuotaType ENUM are summarized in Table 59.
string | Description |
---|---|
Hard | This value shall indicate that quotas are enabled and enforced. |
Soft | This value shall indicate that quotas are enabled but not enforced. |
This property shall be an array containing entries for the file sharing protocols supported by this file share. Each entry shall specify a file sharing protocol supported by the file system. The values shall indicate the file sharing protocols supported by the file system. At least one value shall be present.
The values defined for the FileSharingProtocols ENUM are summarized in Table 60.
string | Description |
---|---|
NFSv3 | This value shall indicate that NFSv3, as defined in RFC 1813, is supported by the file system. |
NFSv4_0 | This value shall indicate that NFSv4, as defined in RFC 7530, is supported by the file system. |
NFSv4_1 | This value shall indicate that NFSv4.1, as defined in RFC 5661, is supported by the file system. |
SMBv2_0 | This value shall indicate that Server Message Block version 2.0 is supported by the file system. |
SMBv2_1 | This value shall indicate that Server Message Block version 2.1 is supported by the file system. |
SMBv3_0 | This value shall indicate that Server Message Block version 3.0 is supported by the file system. |
SMBv3_0_2 | This value shall indicate that Server Message Block version 3.0.2 is supported by the file system. |
SMBv3_1_1 | This value shall indicate that Server Message Block version 3.1.1 is supported by the file system. |
The value of this property shall define how writes are replicated to the shared source.
The values defined for the WritePolicy ENUM are summarized in Table 61.
string | Description |
---|---|
Active | This enumeration literal shall indicate Active-Active (i.e. bidirectional) synchronous updates. |
Adaptive | This enumeration literal shall indicate that an implementation may switch between synchronous and asynchronous modes. |
Asynchronous | This enumeration literal shall indicate Asynchronous updates. |
Synchronous | This enumeration literal shall indicate Synchronous updates. |
/redfish/v1/Storage/{StorageId}/FileSystems/{FileSystemsId}/ExportedShares /redfish/v1/StorageServices/{StorageServiceId}/FileSystems/{FileSystemsId}/ExportedShares
The properties defined for the FileShareCollection object are summarized in Table 62.
Property | Type | Notes |
---|---|---|
@odata.etag | string read-only |
The value of this property shall be a string that is defined by the ETag HTTP header definition in RFC7232. |
Description | string read-only (null) |
This object represents the description of this resource. The resource values shall comply with the Redfish Specification-described requirements. |
Property | Type | Notes |
---|---|---|
Members [ { | array | This property shall contain references to the members of this FileSystem collection. |
@odata.id | string read-only |
Link to a FileShare resource. See the Links section and the FileShare schema for details. |
} ] | ||
Members@odata.nextLink | string read-only |
The value of this property shall be a URI to a resource, with the same @odata.type, containing the next set of partial members. |
Name | string read-only |
This object represents the name of this resource or array member. The resource values shall comply with the Redfish Specification-described requirements. This string value shall be of the ‘Name’ reserved word format. |
Oem {} | object | This property shall contain the OEM extensions. All values for properties contained in this object shall conform to the Redfish Specification-described requirements. See the Resource schema for details on this property. |
This resource shall be used to represent an instance of a hierarchical namespace of files.
/redfish/v1/Storage/{StorageId}/FileSystems/{FileSystemId} /redfish/v1/StorageServices/{StorageServiceId}/FileSystems/{FileSystemId}
The properties defined for the FileSystem 1.2.2 object are summarized in Table 63.
Property | Type | Notes |
---|---|---|
@odata.etag | string read-only |
The value of this property shall be a string that is defined by the ETag HTTP header definition in RFC7232. |
AccessCapabilities [ ] | array (string (enum)) read-write (null) |
This property shall be an array containing entries for the supported IO access capabilities. Each entry shall specify a current storage access capability. StorageAccessCapability enumeration literals may be used to describe abilities to read or write storage. For the possible property values, see AccessCapabilities in Property details. |
Actions (v1.1+) {} | object | The Actions property shall contain the available actions for this resource. |
BlockSizeBytes | integer (By) read-only (null) |
The value of this property shall be the block size of the file system in bytes. |
Capacity {} | object | The value of this property shall be the capacity allocated to the file system in bytes. See the CapacitySource.v1_0_0 schema for details on this property. |
CapacitySources [ { | array | This property shall be an array containing entries for all the capacity sources for the file system. Each entry shall provide capacity allocation information from a named resource. |
@odata.id | string read-only |
Link to a CapacitySource resource. See the Links section and the CapacitySource schema for details. |
} ] |
Property | Type | Notes |
---|---|---|
CasePreserved | boolean read-write (null) |
This property shall indicate that the case of file names is preserved by the file system. A value of True shall indicate that case of file names shall be preserved. |
CaseSensitive | boolean read-write (null) |
This property shall indicate that case sensitive file names are supported by the file system. A value of True shall indicate that file names are case sensitive. |
CharacterCodeSet [ ] | array (string (enum)) read-write (null) |
This property shall be an array containing entries for the character sets or encodings supported by the file system. Each entry shall specify a character set encoding supported by the file system. The values shall indicate the character code standards supported by the file system. For the possible property values, see CharacterCodeSet in Property details. |
ClusterSizeBytes | integer (By) read-write (null) |
This value shall specify the minimum file allocation size imposed by the file system. This minimum allocation size shall be the smallest amount of storage allocated to a file by the file system. Under stress conditions, the file system may allocate storage in amounts smaller than this value. |
Description | string read-only (null) |
This object represents the description of this resource. The resource values shall comply with the Redfish Specification-described requirements. |
ExportedShares { | object | This property shall be an array of exported file shares of this file system. Each entry shall define an exported file share of this file system. Contains a link to a resource. |
Property | Type | Notes |
---|---|---|
@odata.id | string read-only |
Link to Collection of FileShare. See the FileShare schema for details. |
} | ||
Id | string read-only required |
This property represents an identifier for the resource. The resource values shall comply with the Redfish Specification-described requirements. |
Identifiers (v1.1.1+) [ { } ] | array (object) | This property shall contain a list of all known durable names for this file system. This type shall contain any additional identifiers for a resource. See the v1_9_1.v1_9_1 schema for details on this property. |
ImportedShares (v1.0.1+) [ { | array | The value shall be an array of imported file shares. |
ImportedShare | read-write |
|
} ] | ||
IOStatistics (v1.2+) {} | object | The value shall represent IO statistics for this FileSystem. See the IOStatistics schema for details on this property. |
Links { | object | This property shall contain links to other resources that are related to this resource. |
ClassOfService { | object | This value shall be a link to the ClassOfService for this file system. |
@odata.id | string read-only |
The value of this property shall be the unique identifier for the resource and it shall be of the form defined in the Redfish specification. |
} |
Property | Type | Notes |
---|---|---|
Oem {} | object | This property shall contain the OEM extensions. All values for properties contained in this object shall conform to the Redfish Specification-described requirements. See the Resource schema for details on this property. |
ReplicaCollection [ { | array | This property shall be an array of links to replicas for this file system. Each entry shall be a link to a replica for this file system. |
@odata.id | string read-only |
Link to another FileSystem resource. |
} ] | ||
ReplicaCollection@odata.count | integer read-only |
The value of this property shall be an integer representing the number of items in a collection. |
SpareResourceSets (v1.2+) [ { | array | Each referenced SpareResourceSet shall contain resources that may be utilized to replace the capacity provided by a failed resource having a compatible type. |
@odata.id | string read-only |
Link to a SpareResourceSet resource. See the Links section and the SpareResourceSet schema for details. |
} ] | ||
SpareResourceSets@odata.count | integer read-only |
The value of this property shall be an integer representing the number of items in a collection. |
} |
Property | Type | Notes |
---|---|---|
LowSpaceWarningThresholdPercents [ ] | array (%) (integer, null) read-write |
This property shall be an array containing entries for the percentages of file system capacity at which low space warning events are be issued. A LOW_SPACE_THRESHOLD_WARNING event shall be triggered each time the remaining file system capacity value becomes less than one of the values in the array. The following shall be true: Across all CapacitySources entries, percent = (SUM(AllocatedBytes) - SUM(ConsumedBytes))/SUM(AllocatedBytes). |
MaxFileNameLengthBytes | integer (By) read-write (null) |
If specified, this value shall specify the maximum length of a file name within the file system. |
Name | string read-only required |
This object represents the name of this resource or array member. The resource values shall comply with the Redfish Specification-described requirements. This string value shall be of the ‘Name’ reserved word format. |
Oem {} | object | This property shall contain the OEM extensions. All values for properties that this object contains shall conform to the Redfish Specification-described requirements. See the Resource schema for details on this property. |
RecoverableCapacitySourceCount (v1.2+) | integer read-write (null) |
The value is the number of available capacity source resources currently available in the event that an equivalent capacity source resource fails. |
RemainingCapacity {} | object | The value of this property shall be the remaining capacity allocated to the file system in bytes. See the CapacitySource.v1_0_0 schema for details on this property. |
Property | Type | Notes |
---|---|---|
RemainingCapacityPercent (v1.1+) | integer read-only (null) |
If present, this value shall return {[(SUM(AllocatedBytes) - SUM(ConsumedBytes)]/SUM(AllocatedBytes)} * 100 represented as an integer value. |
ReplicaInfo { | object | If this file system is a replica, this value shall describe its replication attributes. This value shall not be present if this file system is not a replica. A file system may be both a source and a replica. See the StorageReplicaInfo schema for details on this property. |
@odata.id | string read-only |
Link to a ReplicaInfo resource. See the Links section and the StorageReplicaInfo schema for details. |
} | ||
ReplicaTargets (v1.2.1+) [ { | array | The value shall reference the target replicas that are sourced by this replica. |
@odata.id | string read-only |
The value of this property shall be the unique identifier for the resource and it shall be of the form defined in the Redfish specification. |
} ] |
This property shall be an array containing entries for the supported IO access capabilities. Each entry shall specify a current storage access capability. StorageAccessCapability enumeration literals may be used to describe abilities to read or write storage.
The values defined for the AccessCapabilities ENUM are summarized in Table 64.
string | Description |
---|---|
Append | This enumeration literal shall indicate that the storage may be written only to append. |
Execute | This value shall indicate that Execute access is allowed by the file share. |
Read | This enumeration literal shall indicate that the storage may be read. |
Streaming | This enumeration literal shall indicate that the storage may be read sequentially. |
Write | This enumeration literal shall indicate that the storage may be written multiple times. |
WriteOnce | This enumeration literal shall indicate that the storage may be written only once. |
This property shall be an array containing entries for the character sets or encodings supported by the file system. Each entry shall specify a character set encoding supported by the file system. The values shall indicate the character code standards supported by the file system.
The values defined for the CharacterCodeSet ENUM are summarized in Table 65.
string | Description |
---|---|
ASCII | This value shall indicate that the ASCII character encoding is supported by the file system. |
ExtendedUNIXCode | This value shall indicate that Extended Unix Code character encoding is supported by the file system. |
ISO2022 | This value shall indicate that ISO-2022 character encoding is supported by the file system. |
ISO8859_1 | This value shall indicate that ISO-8859-1 character encoding is supported by the file system. |
UCS_2 | This value shall indicate that the UCS-2 character encoding is supported by the file system. |
Unicode | This value shall indicate that Unicode characer encoding is supported by the file system. |
UTF_16 | This value shall indicate that the UTF-16 character encoding is supported by the file system. |
UTF_8 | This value shall indicate that the UTF-8 character encoding is supported by the file system. |
/redfish/v1/Storage/{StorageId}/FileSystems/{FileSystemsId}/ExportedShares/{FileShareId} /redfish/v1/StorageServices/{StorageServiceId}/FileSystems/{FileSystemsId}/ExportedShares/{FileShareId}
The properties defined for the FileSystemCollection object are summarized in Table 66.
Property | Type | Notes |
---|---|---|
@odata.etag | string read-only |
The value of this property shall be a string that is defined by the ETag HTTP header definition in RFC7232. |
Description | string read-only (null) |
This object represents the description of this resource. The resource values shall comply with the Redfish Specification-described requirements. |
Members [ { | array | This property shall contain references to the members of this FileSystem collection. |
@odata.id | string read-only |
Link to a FileSystem resource. See the Links section and the FileSystem schema for details. |
} ] | ||
Members@odata.nextLink | string read-only |
The value of this property shall be a URI to a resource, with the same @odata.type, containing the next set of partial members. |
Name | string read-only |
This object represents the name of this resource or array member. The resource values shall comply with the Redfish Specification-described requirements. This string value shall be of the ‘Name’ reserved word format. |
Property | Type | Notes |
---|---|---|
Oem {} | object | This property shall contain the OEM extensions. All values for properties contained in this object shall conform to the Redfish Specification-described requirements. See the Resource schema for details on this property. |
/redfish/v1/Systems/{ComputerSystemId}/HostedServices/StorageServices
The properties defined for the HostedStorageServices object are summarized in Table 67.
Property | Type | Notes |
---|---|---|
@odata.etag | string read-only |
The value of this property shall be a string that is defined by the ETag HTTP header definition in RFC7232. |
Description | string read-only (null) |
This object represents the description of this resource. The resource values shall comply with the Redfish Specification-described requirements. |
Members [ { | array | The value of each member entry shall reference a StorageService resource. |
@odata.id | string read-only |
Link to a StorageService resource. See the Links section and the StorageService schema for details. |
} ] |
Property | Type | Notes |
---|---|---|
Members@odata.nextLink | string read-only |
The value of this property shall be a URI to a resource, with the same @odata.type, containing the next set of partial members. |
Name | string read-only |
This object represents the name of this resource or array member. The resource values shall comply with the Redfish Specification-described requirements. This string value shall be of the ‘Name’ reserved word format. |
Oem {} | object | This property shall contain the OEM extensions. All values for properties contained in this object shall conform to the Redfish Specification-described requirements. See the Resource schema for details on this property. |
Each instance of IOConnectivityLoSCapabilities describes capabilities of the system to support various IO Connectivity service options.
/redfish/v1/StorageServices/{StorageServiceId}/IOConnectivityLoSCapabilities
The properties defined for the IOConnectivityLoSCapabilities 1.1.3 object are summarized in Table 68.
Property | Type | Notes |
---|---|---|
@odata.etag | string read-only |
The value of this property shall be a string that is defined by the ETag HTTP header definition in RFC7232. |
Actions (v1.1+) {} | object | The Actions property shall contain the available actions for this resource. |
Description | string read-only (null) |
This object represents the description of this resource. The resource values shall comply with the Redfish Specification-described requirements. |
Id | string read-only required |
This property represents an identifier for the resource. The resource values shall comply with the Redfish Specification-described requirements. |
Identifier {} | object | The value identifies this resource. The value shall be unique within the managed ecosystem. See the v1_9_1.v1_9_1 schema for details on this property. |
MaxSupportedBytesPerSecond | integer (By/s) read-write (null) |
The value shall be the maximum bytes per second that a connection can support. |
Property | Type | Notes |
---|---|---|
MaxSupportedIOPS (v1.1+) | integer ([IO]/s) read-write (null) |
The value shall be the maximum IOPS that a connection can support. |
Name | string read-only required |
This object represents the name of this resource or array member. The resource values shall comply with the Redfish Specification-described requirements. This string value shall be of the ‘Name’ reserved word format. |
Oem {} | object | This property shall contain the OEM extensions. All values for properties that this object contains shall conform to the Redfish Specification-described requirements. See the Resource schema for details on this property. |
SupportedAccessProtocols [ ] | array (string (enum)) read-write (null) |
Access protocols supported by this service option. NOTE: SMB+NFS* requires that SMB and at least one of NFSv3 or NFXv4 are also selected, (i.e. {‘SMB’, ‘NFSv4’, ’SMB+NFS’}). For the possible property values, see SupportedAccessProtocols in Property details.* |
SupportedLinesOfService [ { | array | The collection shall contain known and supported IOConnectivityLinesOfService. |
@odata.id | string read-only |
The value of this property shall be the unique identifier for the resource and it shall be of the form defined in the Redfish specification. |
} ] |
Access protocols supported by this service option. NOTE: SMB+NFS* requires that SMB and at least one of NFSv3 or NFXv4 are also selected, (i.e. {‘SMB’, ‘NFSv4’, ‘SMB+NFS*’}).
The values defined for the SupportedAccessProtocols ENUM are summarized in Table 69.
string | Description |
---|---|
AHCI | This value shall indicate conformance to the Intel Advanced Host Controller Interface (AHCI) Specification. |
FC | This value shall indicate conformance to the T11 Fibre Channel Physical and Signaling Interface Specification. |
FCoE | This value shall indicate conformance to the T11 FC-BB-5 Specification. |
FCP | This value shall indicate conformance to the INCITS 481: Information Technology - Fibre Channel Protocol for SCSI. |
FICON | This value shall indicate conformance to the ANSI FC-SB-3 Single-Byte Command Code Sets-3 Mapping Protocol for the Fibre Channel (FC) protocol. Fibre Connection (FICON) is the IBM-proprietary name for this protocol. |
FTP | This value shall indicate conformance to the RFC114-defined File Transfer Protocol (FTP). |
GenZ | This value shall indicate conformance to the Gen-Z Core Specification. |
HTTP | This value shall indicate conformance to the Hypertext Transport Protocol (HTTP) as defined by RFC3010 or RFC5661. |
HTTPS | This value shall indicate conformance to the Hypertext Transfer Protocol Secure (HTTPS) as defined by RFC2068 or RFC2616, which uses Transport Layer Security (TLS) as defined by RFC5246 or RFC6176. |
I2C | This value shall indicate conformance to the NXP Semiconductors I2C-bus Specification. |
iSCSI | This value shall indicate conformance to the IETF Internet Small Computer Systems Interface (iSCSI) Specification. |
iWARP | This value shall indicate conformance to the RFC5042-defined Internet Wide Area RDMA Protocol (iWARP) that uses the transport layer mechanisms as defined by RFC5043 or RFC5044. |
MultiProtocol | This value shall indicate conformance to multiple protocols. |
NFSv3 | This value shall indicate conformance to the RFC1813-defined Network File System (NFS) protocol. |
NFSv4 | |
NVMe | This value shall indicate conformance to the Non-Volatile Memory Host Controller Interface Specification. |
NVMeOverFabrics | This value shall indicate conformance to the NVM Express over Fabrics Specification. |
string | Description |
---|---|
OEM | This value shall indicate conformance to an OEM-specific architecture and additional information may be included in the OEM section. |
PCIe | This value shall indicate conformance to the PCI-SIG PCI Express Base Specification. |
RoCE | This value shall indicate conformance to the Infiniband Architecture Specification-defined RDMA over Converged Ethernet Protocol. |
RoCEv2 | This value shall indicate conformance to the Infiniband Architecture Specification-defined RDMA over Converged Ethernet Protocol version 2. |
SAS | This value shall indicate conformance to the T10 SAS Protocol Layer Specification. |
SATA | This value shall indicate conformance to the Serial ATA International Organization Serial ATA Specification. |
SFTP | This value shall indicate conformance to the RFC114-defined SSH File Transfer Protocol (SFTP) that uses Transport Layer Security (TLS) as defined by RFC5246 or RFC6176. |
SMB | This value shall indicate conformance to the Server Message Block (SMB), or Common Internet File System (CIFS), protocol. |
TCP | This value shall indicate conformance to the IETF-defined Tranmission Control Protocol (TCP). For example, RFC7414 defines the roadmap of the TCP specification. |
TFTP | This value shall indicate conformance to the IETF-defined Trivial File Transfer Protocol (TFTP). For example, RFC1350 defines the core TFTP version 2 specification. |
UDP | This value shall indicate conformance to the IETF-defined User Datagram Protocol (UDP). For example, RFC768 defines the core UDP specification. |
UHCI | This value shall indicate conformance to the Intel Universal Host Controller Interface (UHCI) Specification, Enhanced Host Controller Interface Specification, or the Extensible Host Controller Interface Specification. |
USB | This value shall indicate conformance to the USB Implementers Forum Universal Serial Bus Specification. |
Each instance of IOPerformanceLoSCapabilities shall describe the capabilities of the system to support various IO performance service options.
/redfish/v1/StorageServices/{StorageServiceId}/IOPerformanceLoSCapabilities
The properties defined for the IOPerformanceLoSCapabilities 1.1.3 object are summarized in Table 70.
Property | Type | Notes |
---|---|---|
@odata.etag | string read-only |
The value of this property shall be a string that is defined by the ETag HTTP header definition in RFC7232. |
Actions (v1.1+) {} | object | The Actions property shall contain the available actions for this resource. |
Description | string read-only (null) |
This object represents the description of this resource. The resource values shall comply with the Redfish Specification-described requirements. |
Id | string read-only required |
This property represents an identifier for the resource. The resource values shall comply with the Redfish Specification-described requirements. |
Identifier {} | object | The value shall be unique within the managed ecosystem. See the v1_9_1.v1_9_1 schema for details on this property. |
IOLimitingIsSupported | boolean read-write (null) |
If true, the system should limit IOPS to MaxIOOperationsPerSecondPerTerabyte * (Volume Size in Terabytes). Otherwise, the system shall not inforce a limit. The default value for this property is false. |
MaxSamplePeriod | string (s) read-write (null) |
The value shall be an ISO 8601 duration specifying the maximum sampling period over which average values are calculated. |
Property | Type | Notes |
---|---|---|
MinSamplePeriod | string (s) read-write (null) |
The value shall be an ISO 8601 duration specifying the minimum sampling period over which average values are calculated. |
MinSupportedIoOperationLatencyMicroseconds | integer (us) read-write (null) |
The value shall be the minimum supported average IO latency in microseconds calculated over the SamplePeriod. |
Name | string read-only required |
This object represents the name of this resource or array member. The resource values shall comply with the Redfish Specification-described requirements. This string value shall be of the ‘Name’ reserved word format. |
Oem {} | object | This property shall contain the OEM extensions. All values for properties that this object contains shall conform to the Redfish Specification-described requirements. See the Resource schema for details on this property. |
SupportedIOWorkloads [ { | array | The value shall be a collection of supported workloads. |
Property | Type | Notes |
---|---|---|
Components [ { | array | The value shall be an array of IO workload component descriptions. |
AverageIOBytes | integer (By) read-write (null) |
The value shall be the expected average I/O size. |
Duration | string (s) read-write (null) |
The value of each entry shall be an ISO 8601 duration that shall specify the expected length of time that this component is applied to the workload. This attribute shall be specified if a schedule is specified and otherwise shall not be specified. |
IOAccessPattern | string (enum) read-write (null) |
The enumeration literal shall be the expected access pattern. For the possible property values, see IOAccessPattern in Property details. |
PercentOfData | integer (%) read-write (null) |
The value shall be the expected percent of the data referenced by the workload that is covered by this component. |
PercentOfIOPS | integer (%) read-write (null) |
The value shall be the expected percent of the total IOPS for this workload that is covered by this component. |
Schedule {} | object | The value shall specifies when this workload component is applied to the overall workload. See the v1_2_1.v1_2_1 schema for details on this property. |
} ] |
Property | Type | Notes |
---|---|---|
Name | string read-write (null) |
The value shall be a name of the workload. It should be constructed as OrgID:WorkloadID. Examples: ACME:DSS, ACME:DSS-REP, ACME:Exchange, ACME:OLTP, ACME:OLTP-REPA. An organization may define a set of well known workloads. |
} ] | ||
SupportedLinesOfService [ { | array | The value shall be a collection supported IO performance service options. |
@odata.id | string read-only |
The value of this property shall be the unique identifier for the resource and it shall be of the form defined in the Redfish specification. |
} ] |
The enumeration literal shall be the expected access pattern.
The values defined for the IOAccessPattern ENUM are summarized in Table 71.
string | Description |
---|---|
RandomReadAgain | Use of this enumeration literal shall indicate an access pattern of random reads of cached data. |
RandomReadNew | Use of this enumeration literal shall indicate an access pattern of random reads of uncached data. |
ReadWrite | Use of this enumeration literal shall indicate a Uniform distribution of reads and writes. |
SequentialRead | Use of this enumeration literal shall indicate a sequential read pattern of access. |
SequentialWrite | Use of this enumeration literal shall indicate a sequential write pattern of access. |
This service option is the abstract base class for other ClassOfService and concrete lines of service.
The properties defined for the LineOfService 1.0.0 object are summarized in Table 72.
Property | Type | Notes |
---|---|---|
@odata.etag | string read-only |
The value of this property shall be a string that is defined by the ETag HTTP header definition in RFC7232. |
Description | string read-only (null) |
This object represents the description of this resource. The resource values shall comply with the Redfish Specification-described requirements. |
Id | string read-only required |
This property represents an identifier for the resource. The resource values shall comply with the Redfish Specification-described requirements. |
Name | string read-only required |
This object represents the name of this resource or array member. The resource values shall comply with the Redfish Specification-described requirements. This string value shall be of the ‘Name’ reserved word format. |
Oem {} | object | This property shall contain the OEM extensions. All values for properties that this object contains shall conform to the Redfish Specification-described requirements. See the Resource schema for details on this property. |
/redfish/v1/StorageServices/{StorageServiceId}/ClassesOfService/{ClassOfServiceId}/DataProtectionLinesOfService /redfish/v1/StorageServices/{StorageServiceId}/ClassesOfService/{ClassOfServiceId}/DataSecurityLinesOfService /redfish/v1/StorageServices/{StorageServiceId}/ClassesOfService/{ClassOfServiceId}/DataStorageLinesOfService /redfish/v1/StorageServices/{StorageServiceId}/ClassesOfService/{ClassOfServiceId}/IOConnectivityLinesOfService /redfish/v1/StorageServices/{StorageServiceId}/ClassesOfService/{ClassOfServiceId}/IOPerformanceLinesOfService /redfish/v1/StorageServices/{StorageServiceId}/LinesOfService/DataProtectionLinesOfService /redfish/v1/StorageServices/{StorageServiceId}/LinesOfService/DataSecurityLinesOfService /redfish/v1/StorageServices/{StorageServiceId}/LinesOfService/DataStorageLinesOfService /redfish/v1/StorageServices/{StorageServiceId}/LinesOfService/IOConnectivityLinesOfService /redfish/v1/StorageServices/{StorageServiceId}/LinesOfService/IOPerformanceLinesOfService
The properties defined for the LineOfServiceCollection object are summarized in Table 73.
Property | Type | Notes |
---|---|---|
@odata.etag | string read-only |
The value of this property shall be a string that is defined by the ETag HTTP header definition in RFC7232. |
Description | string read-only (null) |
This object represents the description of this resource. The resource values shall comply with the Redfish Specification-described requirements. |
Members [ { | array | The value of each member entry shall reference a LineOfService resource. |
Property | Type | Notes |
---|---|---|
@odata.id | string read-only |
Link to a LineOfService resource. See the Links section and the LineOfService schema for details. |
} ] | ||
Members@odata.nextLink | string read-only |
The value of this property shall be a URI to a resource, with the same @odata.type, containing the next set of partial members. |
Name | string read-only |
This object represents the name of this resource or array member. The resource values shall comply with the Redfish Specification-described requirements. This string value shall be of the ‘Name’ reserved word format. |
Oem {} | object | This property shall contain the OEM extensions. All values for properties contained in this object shall conform to the Redfish Specification-described requirements. See the Resource schema for details on this property. |
The values define a set of spares of a particular type.
The properties defined for the SpareResourceSet 1.0.1 object are summarized in Table 74.
Property | Type | Notes |
---|---|---|
@odata.etag | string read-only |
The value of this property shall be a string that is defined by the ETag HTTP header definition in RFC7232. |
Actions (v1.0.1+) {} | object | The Actions property shall contain the available actions for this resource. |
Description | string read-only (null) |
This object represents the description of this resource. The resource values shall comply with the Redfish Specification-described requirements. |
Id | string read-only required |
This property represents an identifier for the resource. The resource values shall comply with the Redfish Specification-described requirements. |
Links { | object | This structure shall contain references to resources that are not contained within this resource. |
Oem {} | object | This property shall contain the OEM extensions. All values for properties contained in this object shall conform to the Redfish Specification-described requirements. See the Resource schema for details on this property. |
OnHandSpares [ { | array | The type of resources in the set. |
@odata.id | string read-only |
The value of this property shall be the unique identifier for the resource and it shall be of the form defined in the Redfish specification. |
} ] |
Property | Type | Notes |
---|---|---|
OnHandSpares@odata.count | integer read-only |
The value of this property shall be an integer representing the number of items in a collection. |
ReplacementSpareSets [ { | array | Other spare sets that can be utilized to replenish this spare set. |
@odata.id | string read-only |
Link to another SpareResourceSet resource. |
} ] | ||
ReplacementSpareSets@odata.count | integer read-only |
The value of this property shall be an integer representing the number of items in a collection. |
} | ||
Name | string read-only required |
This object represents the name of this resource or array member. The resource values shall comply with the Redfish Specification-described requirements. This string value shall be of the ‘Name’ reserved word format. |
Oem {} | object | This property shall contain the OEM extensions. All values for properties that this object contains shall conform to the Redfish Specification-described requirements. See the Resource schema for details on this property. |
OnHandLocation {} | object | The location where this set of spares is kept. See the v1_5_0.v1_5_0 schema for details on this property. |
Property | Type | Notes |
---|---|---|
OnLine | boolean read-write (null) |
This set shall be available online. |
ResourceType | string read-write (null) |
The type of resources in the set. |
TimeToProvision | string read-write (null) |
Amount of time needed to make an on-hand resource available as a spare. Pattern: -?P(D)?(T(H)?(M)?((.)?S)?)? |
TimeToReplenish | string read-write (null) |
Amount of time to needed replenish consumed on-hand resources. Pattern: -?P(D)?(T(H)?(M)?((.)?S)?)? |
The primary purposes of the collection shall be to govern access to the storage by clients or to add service requirements for the members of the collection. Access to the collected storage by a specified set of hosts shall be made available or unavailable atomically. Requirements specified by the class of service shall be satisfied by each collected element to which they apply. The storage group may contain: block, file, or object storage; local storage system access points through which the collection is made available; and hosts, or host access points to which the collection is made available.
/redfish/v1/Storage/{StorageId}/StorageGroups/{StorageGroupId} /redfish/v1/Storage/{StorageId}/Volumes/{VolumeId}/StorageGroups/{StorageGroupId} /redfish/v1/StorageServices/{StorageServiceId}/StorageGroups/{StorageGroupId} /redfish/v1/StorageServices/{StorageServiceId}/Volumes/{VolumeId}/StorageGroups/{StorageGroupId}
The properties defined for the StorageGroup 1.2.1 object are summarized in Table 75.
Property | Type | Notes |
---|---|---|
@odata.etag | string read-only |
The value of this property shall be a string that is defined by the ETag HTTP header definition in RFC7232. |
AccessState | string (enum) read-write (null) |
The value of this property shall describe the access characteristics of this storage group. All associated logical units through all aggregated ports shall share this access state. For the possible property values, see AccessState in Property details. |
Actions { | object | The Actions property shall contain the available actions for this resource. |
#StorageGroup.ExposeVolumes {} | object | Exposes the storage of this group via the target endpoints named in the ServerEndpointGroups to the initiator endpoints named in the ClientEndpointGroups. The property VolumesAreExposed shall be set to true when this action is completed. For more information, see the Actions section below. |
#StorageGroup.HideVolumes {} | object | Hide the storage of this group from the initiator endpoints named in the ClientEndpointGroups. The property VolumesAreExposed shall be set to false when this action is completed. For more information, see the Actions section below. |
} |
Property | Type | Notes |
---|---|---|
AuthenticationMethod (v1.2+) | string (enum) read-write (null) |
The value of this property must be what kind of authentication that the endpoints in this StorageGroup understands. For the possible property values, see AuthenticationMethod in Property details. |
ChapInfo (v1.2+) [ { | array | The value of this property must reflect the authentication used by this specific endpoint. For example, if this endpoint represents an initiator, and AuthenticationMethod is CHAP or MutualCHAP, the Credentials fields CHAPUsername and CHAPSecret must be used. If this endpoint represents a target endpoint and AuthenticationMethod is MutualCHAP, then MutualCHAPUsername and MutualCHAPSecret must be used. |
InitiatorCHAPPassword | string read-write (null) |
The value of this property shall be the shared secret for CHAP authentication. |
InitiatorCHAPUser | string read-write (null) |
If present, this property is the initiator CHAP username for authentication. For example, with an iSCSI scenario, use the initiator iQN. |
TargetCHAPUser | string read-write (null) |
The value of this property shall be the CHAP Username for 2-way CHAP authentication. For example, with an iSCSI scenario, use the target iQN. In a FC with DHCHAP, this value will be a FC WWN. |
TargetPassword | string read-write (null) |
The value of this property shall be the CHAP Secret for 2-way CHAP authentication. |
Property | Type | Notes |
---|---|---|
} ] | ||
ClientEndpointGroups [ { | array | An array of references to groups of client-side endpoints that may be used to make requests to the storage exposed by this StorageGroup. If null, the implementation may allow access to the storage via any client-side endpoint. If empty, the implementation shall not allow access to the storage via any client-side endpoint. |
@odata.id | string read-only |
Link to a EndpointGroup resource. See the Links section and the EndpointGroup schema for details. |
} ] | ||
Description | string read-only (null) |
This object represents the description of this resource. The resource values shall comply with the Redfish Specification-described requirements. |
Id | string read-only required |
This property represents an identifier for the resource. The resource values shall comply with the Redfish Specification-described requirements. |
Identifier {} | object | The value shall be unique within the managed ecosystem. See the v1_9_1.v1_9_1 schema for details on this property. |
Property | Type | Notes |
---|---|---|
Links { | object | This property shall contain links to other resources that are related to this resource. |
ChildStorageGroups [ { | array | An array of references to StorageGroups are incorporated into this StorageGroup. |
@odata.id | string read-only |
Link to another StorageGroup resource. |
} ] | ||
ChildStorageGroups@odata.count | integer read-only |
The value of this property shall be an integer representing the number of items in a collection. |
ClassOfService { | object | The ClassOfService that all storage in this StorageGroup conforms to. |
@odata.id | string read-only |
The value of this property shall be the unique identifier for the resource and it shall be of the form defined in the Redfish specification. |
} | ||
Oem {} | object | This property shall contain the OEM extensions. All values for properties contained in this object shall conform to the Redfish Specification-described requirements. See the Resource schema for details on this property. |
ParentStorageGroups [ { | array | An array of references to StorageGroups that incorporate this StorageGroup. |
@odata.id | string read-only |
Link to another StorageGroup resource. |
Property | Type | Notes |
---|---|---|
} ] | ||
ParentStorageGroups@odata.count | integer read-only |
The value of this property shall be an integer representing the number of items in a collection. |
} | ||
MappedVolumes (v1.1+) [ { | array | An array of mapped volumes managed by this storage group. |
LogicalUnitNumber | string read-write (null) |
If present, the value is a SCSI Logical Unit Number for the Volume. |
Volume { | object | The value shall reference a mapped Volume. See the Volume schema for details on this property. |
@odata.id | string read-only |
Link to a Volume resource. See the Links section and the Volume schema for details. |
} | ||
} ] | ||
MembersAreConsistent | boolean read-write (null) |
The value of this property shall be set to true if all members are in a consistent state. The default value for this property is false. |
Name | string read-only required |
This object represents the name of this resource or array member. The resource values shall comply with the Redfish Specification-described requirements. This string value shall be of the ‘Name’ reserved word format. |
Property | Type | Notes |
---|---|---|
Oem {} | object | This property shall contain the OEM extensions. All values for properties that this object contains shall conform to the Redfish Specification-described requirements. See the Resource schema for details on this property. |
ReplicaInfo { | object | This property shall describe the replication relationship between this storage group and a corresponding source storage group. See the StorageReplicaInfo schema for details on this property. |
@odata.id | string read-only |
Link to a ReplicaInfo resource. See the Links section and the StorageReplicaInfo schema for details. |
} | ||
ReplicaTargets (v1.1.1+) [ { | array | The value shall reference the target replicas that are sourced by this replica. |
@odata.id | string read-only |
The value of this property shall be the unique identifier for the resource and it shall be of the form defined in the Redfish specification. |
} ] | ||
ServerEndpointGroups [ { | array | An array of references to groups of server-side endpoints that may be used to make requests to the storage exposed by this storage group. If null, the implementation may allow access to the storage via any server-side endpoint. If empty, the implementation shall not allow access to the storage via any server-side endpoint. |
@odata.id | string read-only |
Link to a EndpointGroup resource. See the Links section and the EndpointGroup schema for details. |
} ] |
Property | Type | Notes |
---|---|---|
Status {} | object | The property shall contain the status of the StorageGroup. See the Resource schema for details on this property. |
Volumes [ { | array | An array of references to volumes managed by this storage group. |
@odata.id | string read-only |
Link to a Volume resource. See the Links section and the Volume schema for details. |
} ] | ||
VolumesAreExposed | boolean read-write (null) |
The value of this property shall be set to true if storage volumes are exposed to the paths defined by the client and server endpoints. The default value for this property is false. |
Exposes the storage of this group via the target endpoints named in the ServerEndpointGroups to the initiator endpoints named in the ClientEndpointGroups. The property VolumesAreExposed shall be set to true when this action is completed.
URIs:
/redfish/v1/Storage/{StorageId}/StorageGroups/{StorageGroupId}/Actions/StorageGroup.ExposeVolumes /redfish/v1/Storage/{StorageId}/Volumes/{VolumeId}/StorageGroups/{StorageGroupId}/Actions/StorageGroup.ExposeVolumes /redfish/v1/StorageServices/{StorageServiceId}/StorageGroups/{StorageGroupId}/Actions/StorageGroup.ExposeVolumes /redfish/v1/StorageServices/{StorageServiceId}/Volumes/{VolumeId}/StorageGroups/{StorageGroupId}/Actions/StorageGroup.ExposeVolumes
Parameters
(This action takes no parameters.)
Hide the storage of this group from the initiator endpoints named in the ClientEndpointGroups. The property VolumesAreExposed shall be set to false when this action is completed.
URIs:
/redfish/v1/Storage/{StorageId}/StorageGroups/{StorageGroupId}/Actions/StorageGroup.HideVolumes /redfish/v1/Storage/{StorageId}/Volumes/{VolumeId}/StorageGroups/{StorageGroupId}/Actions/StorageGroup.HideVolumes /redfish/v1/StorageServices/{StorageServiceId}/StorageGroups/{StorageGroupId}/Actions/StorageGroup.HideVolumes /redfish/v1/StorageServices/{StorageServiceId}/Volumes/{VolumeId}/StorageGroups/{StorageGroupId}/Actions/StorageGroup.HideVolumes
Parameters
(This action takes no parameters.)
The value of this property shall describe the access characteristics of this storage group. All associated logical units through all aggregated ports shall share this access state.
The values defined for the AccessState ENUM are summarized in Table 76.
string | Description |
---|---|
NonOptimized | In the context of this enumeration literal, each endpoint shall be in an Active/NonOptimized state. |
Optimized | In the context of this enumeration literal, each endpoint shall be in an Active/Optimized state. |
Standby | In the context of this enumeration literal, each endpoint shall be in a Standby state. |
Transitioning | In the context of this enumeration literal, at least one endpoint shall be transitioning to a new AccesState. |
Unavailable | In the context of this enumeration literal, each endpoint shall be in an unavailable state. |
The value of this property must be what kind of authentication that the endpoints in this StorageGroup understands.
The values defined for the AuthenticationMethod ENUM are summarized in Table 77.
string | Description |
---|---|
CHAP | iSCSI Challenge Handshake Authentication Protocol (CHAP) authentication is used. |
DHCHAP | Diffie-Hellman Challenge Handshake Authentication Protocol (DHCHAP) is an authentication protocol used in Fibre Channel. DHCHAP implies that only properties ‘TargetCHAPUser’ and ‘TargetPassword’ need to be present. |
MutualCHAP | iSCSI Mutual Challenge Handshake Authentication Protocol (CHAP) authentication is used. |
None | No authentication is used. |
/redfish/v1/Storage/{StorageId}/StorageGroups /redfish/v1/Storage/{StorageId}/Volumes/{VolumeId}/StorageGroups /redfish/v1/StorageServices/{StorageServiceId}/StorageGroups /redfish/v1/StorageServices/{StorageServiceId}/Volumes/{VolumeId}/StorageGroups
The properties defined for the StorageGroupCollection object are summarized in Table 78.
Property | Type | Notes |
---|---|---|
@odata.etag | string read-only |
The value of this property shall be a string that is defined by the ETag HTTP header definition in RFC7232. |
Description | string read-only (null) |
This object represents the description of this resource. The resource values shall comply with the Redfish Specification-described requirements. |
Members [ { | array | The value of each member entry shall reference a StorageGroup resource. |
@odata.id | string read-only |
Link to a StorageGroup resource. See the Links section and the StorageGroup schema for details. |
} ] | ||
Members@odata.nextLink | string read-only |
The value of this property shall be a URI to a resource, with the same @odata.type, containing the next set of partial members. |
Name | string read-only |
This object represents the name of this resource or array member. The resource values shall comply with the Redfish Specification-described requirements. This string value shall be of the ‘Name’ reserved word format. |
Oem {} | object | This property shall contain the OEM extensions. All values for properties contained in this object shall conform to the Redfish Specification-described requirements. See the Resource schema for details on this property. |
A container of data storage capable of providing capacity conforming to one of its supported classes of service. The storage pool does not support IO to its data storage.
/redfish/v1/Storage/{StorageId}/FileSystems/{FileSystemId}/CapacitySources/{CapacitySourceId}/ProvidingPools/{StoragePoolId} /redfish/v1/Storage/{StorageId}/StoragePools/{StoragePoolId} /redfish/v1/Storage/{StorageId}/StoragePools/{StoragePoolId}/AllocatedPools/{AllocatedPoolId} /redfish/v1/Storage/{StorageId}/StoragePools/{StoragePoolId}/CapacitySources/{CapacitySourceId}/ProvidingPools/{ProvidingPoolId} /redfish/v1/Storage/{StorageId}/Volumes/{VolumeId}/AllocatedPools/{StoragePoolId} /redfish/v1/Storage/{StorageId}/Volumes/{VolumeId}/CapacitySources/{CapacitySourceId}/ProvidingPools/{StoragePoolId} /redfish/v1/StorageServices/{StorageServiceId}/FileSystems/{FileSystemId}/CapacitySources/{CapacitySourceId}/ProvidingPools/{StoragePoolId} /redfish/v1/StorageServices/{StorageServiceId}/StoragePools/{StoragePoolId} /redfish/v1/StorageServices/{StorageServiceId}/StoragePools/{StoragePoolId}/AllocatedPools/{AllocatedPoolId} /redfish/v1/StorageServices/{StorageServiceId}/StoragePools/{StoragePoolId}/CapacitySources/{CapacitySourceId}/ProvidingPools/{ProvidingPoolId} /redfish/v1/StorageServices/{StorageServiceId}/Volumes/{VolumeId}/AllocatedPools/{StoragePoolId} /redfish/v1/StorageServices/{StorageServiceId}/Volumes/{VolumeId}/CapacitySources/{CapacitySourceId}/ProvidingPools/{StoragePoolId}
The properties defined for the StoragePool 1.3.1 object are summarized in Table 79.
Property | Type | Notes |
---|---|---|
@odata.etag | string read-only |
The value of this property shall be a string that is defined by the ETag HTTP header definition in RFC7232. |
Actions (v1.3+) {} | object | The Actions property shall contain the available actions for this resource. |
Property | Type | Notes |
---|---|---|
AllocatedPools { | object | The value of this property shall contain a reference to the collection of storage pools allocated from this storage pool. Contains a link to a resource. |
@odata.id | string read-only |
Link to Collection of StoragePool. See the StoragePool schema for details. |
} | ||
AllocatedVolumes { | object | The value of this property shall contain a reference to the collection of volumes allocated from this storage pool. Contains a link to a resource. |
@odata.id | string read-only |
Link to Collection of Volume. See the Volume schema for details. |
} | ||
BlockSizeBytes | integer (By) read-only (null) |
Maximum size in bytes of the blocks which form this Volume. If the block size is variable, then the maximum block size in bytes should be specified. If the block size is unknown or if a block concept is not valid (for example, with Memory), enter a 1. |
Capacity {} | object | The value of this property shall provide an information about the actual utilization of the capacity within this storage pool. See the CapacitySource.v1_0_0 schema for details on this property. |
CapacitySources [ { | array | Fully or partially consumed storage from a source resource. Each entry shall provide capacity allocation data from a named source resource. |
@odata.id | string read-only |
Link to a CapacitySource resource. See the Links section and the CapacitySource schema for details. |
} ] |
Property | Type | Notes |
---|---|---|
ClassesOfService { | object | This property shall contain references to all classes of service supported by this storage pool. Capacity allocated from this storage pool shall conform to one of the referenced classes of service. Contains a link to a resource. |
@odata.id | string read-only |
Link to Collection of LineOfService. See the LineOfService schema for details. |
} | ||
Compressed (v1.3+) | boolean read-write (null) |
This property shall contain a boolean indicator if the StoragePool is currently utilizing compression or not. |
Deduplicated (v1.3+) | boolean read-write (null) |
This property shall contain a boolean indicator if the StoragePool is currently utilizing deduplication or not. |
DefaultClassOfService (v1.2+) { | object | If present, this property shall reference the default class of service for entities allocated from this storage pool. If the ClassesOfService collection is not empty, then the value of this property shall be one of its entries. If not present, the default class of service of the containing StorageService entity shall be used. |
Property | Type | Notes |
---|---|---|
@odata.id | string read-only |
The value of this property shall be the unique identifier for the resource and it shall be of the form defined in the Redfish specification. |
} | ||
Description | string read-only (null) |
This object represents the description of this resource. The resource values shall comply with the Redfish Specification-described requirements. |
Encrypted (v1.3+) | boolean read-write (null) |
This property shall contain a boolean indicator if the StoragePool is currently utilizing encryption or not. |
Id | string read-only required |
This property represents an identifier for the resource. The resource values shall comply with the Redfish Specification-described requirements. |
Identifier {} | object | The value identifies this resource. The value shall be unique within the managed ecosystem. See the v1_9_1.v1_9_1 schema for details on this property. |
IOStatistics (v1.2+) {} | object | The value shall represent IO statistics for this StoragePool. See the IOStatistics schema for details on this property. |
Links { | object | The Links property, as described by the Redfish Specification, shall contain references to resources that are related to, but not contained by (subordinate to), this resource. |
Property | Type | Notes |
---|---|---|
DedicatedSpareDrives (v1.2+) [ { | array | The value of this property shall be a reference to the resources that this StoragePool is associated with and shall reference resources of type Drive. This property shall only contain references to Drive entities which are currently assigned as a dedicated spare and are able to support this StoragePool. |
@odata.id | string read-only |
The value of this property shall be the unique identifier for the resource and it shall be of the form defined in the Redfish specification. |
} ] | ||
DedicatedSpareDrives@odata.count | integer read-only |
The value of this property shall be an integer representing the number of items in a collection. |
DefaultClassOfService { | object | If present, this property shall reference the default class of service for entities allocated from this storage pool. If the ClassesOfService collection is not empty, then the value of this property shall be one of its entries. If not present, the default class of service of the containing StorageService entity shall be used. |
@odata.id | string read-only |
The value of this property shall be the unique identifier for the resource and it shall be of the form defined in the Redfish specification. |
} |
Property | Type | Notes |
---|---|---|
Oem {} | object | This property shall contain the OEM extensions. All values for properties contained in this object shall conform to the Redfish Specification-described requirements. See the Resource schema for details on this property. |
SpareResourceSets (v1.2+) [ { | array | Each referenced SpareResourceSet shall contain resources that may be utilized to replace the capacity provided by a failed resource having a compatible type. |
@odata.id | string read-only |
Link to a SpareResourceSet resource. See the Links section and the SpareResourceSet schema for details. |
} ] | ||
SpareResourceSets@odata.count | integer read-only |
The value of this property shall be an integer representing the number of items in a collection. |
} | ||
LowSpaceWarningThresholdPercents [ ] | array (%) (integer, null) read-write |
Each time the following value is less than one of the values in the array the LOW_SPACE_THRESHOLD_WARNING event shall be triggered: Across all CapacitySources entries, percent = (SUM(AllocatedBytes) - SUM(ConsumedBytes))/SUM(AllocatedBytes). |
MaxBlockSizeBytes (v1.1.1+) | integer (By) read-only (null) |
If present, the value is the maximum block size of an allocated resource. If the block size is unknown or if a block concept is not valid (for example, with Memory), this property shall be NULL. |
Name | string read-only required |
This object represents the name of this resource or array member. The resource values shall comply with the Redfish Specification-described requirements. This string value shall be of the ‘Name’ reserved word format. |
Property | Type | Notes |
---|---|---|
Oem {} | object | This property shall contain the OEM extensions. All values for properties that this object contains shall conform to the Redfish Specification-described requirements. See the Resource schema for details on this property. |
RecoverableCapacitySourceCount (v1.2+) | integer read-write (null) |
The value is the number of available capacity source resources currently available in the event that an equivalent capacity source resource fails. |
RemainingCapacityPercent *(v1.1+)* | integer read-only (null) |
If present, this value shall return {[(SUM(AllocatedBytes) - SUM(ConsumedBytes)]/SUM(AllocatedBytes)} * 100 represented as an integer value. |
Status {} | object | The property shall contain the status of the StoragePool. See the Resource schema for details on this property. |
SupportedProvisioningPolicies (v1.3+) [ ] | array (string (enum)) read-write (null) |
This collection shall specify all supported storage allocation policies for the Storage Pool. The enumeration literals may be used to specify space provisioning policy. For the possible property values, see SupportedProvisioningPolicies in Property details. |
SupportedRAIDTypes (v1.3+) [ ] | array (string (enum)) read-only (null) |
This collection shall contain all the RAIDType values supported by the storage pool. For the possible property values, see SupportedRAIDTypes in Property details. |
This collection shall specify all supported storage allocation policies for the Storage Pool. The enumeration literals may be used to specify space provisioning policy.
The values defined for the SupportedProvisioningPolicies ENUM are summarized in Table 80.
string | Description |
---|---|
Fixed | This enumeration literal specifies storage shall be fully allocated. |
Thin | This enumeration literal specifies storage may be over allocated. |
This collection shall contain all the RAIDType values supported by the storage pool.
The values defined for the SupportedRAIDTypes ENUM are summarized in Table 81.
string | Description |
---|---|
RAID0 | A placement policy where consecutive logical blocks of data are uniformly distributed across a set of independent storage devices without offering any form of redundancy. This is commonly referred to as data striping. This form of RAID will encounter data loss with the failure of any storage device in the set. |
RAID00 | A placement policy that creates a RAID 0 stripe set over two or more RAID 0 sets. This is commonly referred to as RAID 0+0. This form of data layout is not fault tolerant; if any storage device fails there will be data loss. |
RAID01 | A data placement policy that creates a mirrored device (RAID 1) over a set of striped devices (RAID 0). This is commonly referred to as RAID 0+1 or RAID 0/1. Data stored using this form of RAID is able to survive a single RAID 0 data set failure without data loss. |
RAID1 | A placement policy where each logical block of data is stored on more than one independent storage device. This is commonly referred to as mirroring. Data stored using this form of RAID is able to survive a single storage device failure without data loss. |
RAID10 | A placement policy that creates a striped device (RAID 0) over a set of mirrored devices (RAID 1). This is commonly referred to as RAID 1/0. Data stored using this form of RAID is able to survive storage device failures in each RAID 1 set without data loss. |
string | Description |
---|---|
RAID10E | A placement policy that uses a RAID 0 stripe set over two or more RAID 10 sets. This is commonly referred to as Enhanced RAID 10. Data stored using this form of RAID is able to survive a single device failure within each nested RAID 1 set without data loss. |
RAID10Triple | A placement policy that uses a striped device (RAID 0) over a set of triple mirrored devices (RAID 1Triple). This form of RAID can survive up to two failures in each triple mirror set without data loss. |
RAID1E | A placement policy that uses a form of mirroring implemented over a set of independent storage devices where logical blocks are duplicated on a pair of independent storage devices so that data is uniformly distributed across the storage devices. This is commonly referred to as RAID 1 Enhanced. Data stored using this form of RAID is able to survive a single storage device failure without data loss. |
RAID1Triple | A placement policy where each logical block of data is mirrored three times across a set of three independent storage devices. This is commonly referred to as three-way mirroring. This form of RAID can survive two device failures without data loss. |
RAID3 | A placement policy using parity-based protection where logical bytes of data are uniformly distributed across a set of independent storage devices and where the parity is stored on a dedicated independent storage device. Data stored using this form of RAID is able to survive a single storage device failure without data loss. If the storage devices use rotating media, they are assumed to be rotationally synchronized, and the data stripe size should be no larger than the exported block size. |
RAID4 | A placement policy using parity-based protection where logical blocks of data are uniformly distributed across a set of independent storage devices and where the parity is stored on a dedicated independent storage device. Data stored using this form of RAID is able to survive a single storage device failure without data loss. |
RAID5 | A placement policy using parity-based protection for storing stripes of ‘n’ logical blocks of data and one logical block of parity across a set of ‘n+1’ independent storage devices where the parity and data blocks are interleaved across the storage devices. Data stored using this form of RAID is able to survive a single storage device failure without data loss. |
RAID50 | A placement policy that uses a RAID 0 stripe set over two or more RAID 5 sets of independent storage devices. Data stored using this form of RAID is able to survive a single storage device failure within each RAID 5 set without data loss. |
string | Description |
---|---|
RAID6 | A placement policy using parity-based protection for storing stripes of ‘n’ logical blocks of data and two logical blocks of independent parity across a set of ‘n+2’ independent storage devices where the parity and data blocks are interleaved across the storage devices. Data stored using this form of RAID is able to survive any two independent storage device failures without data loss. |
RAID60 | A placement policy that uses a RAID 0 stripe set over two or more RAID 6 sets of independent storage devices. Data stored using this form of RAID is able to survive two device failures within each RAID 6 set without data loss. |
RAID6TP | A placement policy that uses parity-based protection for storing stripes of ‘n’ logical blocks of data and three logical blocks of independent parity across a set of ‘n+3’ independent storage devices where the parity and data blocks are interleaved across the storage devices. This is commonly referred to as Triple Parity RAID. Data stored using this form of RAID is able to survive any three independent storage device failures without data loss. |
/redfish/v1/Storage/{StorageId}/FileSystems/{FileSystemId}/CapacitySources/{CapacitySourceId}/ProvidingPools /redfish/v1/Storage/{StorageId}/StoragePools /redfish/v1/Storage/{StorageId}/StoragePools/{StoragePoolId}/AllocatedPools /redfish/v1/Storage/{StorageId}/StoragePools/{StoragePoolId}/CapacitySources/{CapacitySourceId}/ProvidingPools /redfish/v1/Storage/{StorageId}/Volumes/{VolumeId}/AllocatedPools /redfish/v1/Storage/{StorageId}/Volumes/{VolumeId}/CapacitySources/{CapacitySourceId}/ProvidingPools /redfish/v1/StorageServices/{StorageServiceId}/FileSystems/{FileSystemId}/CapacitySources/{CapacitySourceId}/ProvidingPools /redfish/v1/StorageServices/{StorageServiceId}/StoragePools /redfish/v1/StorageServices/{StorageServiceId}/StoragePools/{StoragePoolId}/AllocatedPools /redfish/v1/StorageServices/{StorageServiceId}/StoragePools/{StoragePoolId}/CapacitySources/{CapacitySourceId}/ProvidingPools /redfish/v1/StorageServices/{StorageServiceId}/Volumes/{VolumeId}/AllocatedPools /redfish/v1/StorageServices/{StorageServiceId}/Volumes/{VolumeId}/CapacitySources/{CapacitySourceId}/ProvidingPools
The properties defined for the StoragePoolCollection object are summarized in Table 82.
Property | Type | Notes |
---|---|---|
@odata.etag | string read-only |
The value of this property shall be a string that is defined by the ETag HTTP header definition in RFC7232. |
Description | string read-only (null) |
This object represents the description of this resource. The resource values shall comply with the Redfish Specification-described requirements. |
Members [ { | array | The value of each member entry shall reference a StoragePool resource. |
@odata.id | string read-only |
Link to a StoragePool resource. See the Links section and the StoragePool schema for details. |
} ] | ||
Members@odata.nextLink | string read-only |
The value of this property shall be a URI to a resource, with the same @odata.type, containing the next set of partial members. |
Name | string read-only |
This object represents the name of this resource or array member. The resource values shall comply with the Redfish Specification-described requirements. This string value shall be of the ‘Name’ reserved word format. |
Oem {} | object | This property shall contain the OEM extensions. All values for properties contained in this object shall conform to the Redfish Specification-described requirements. See the Resource schema for details on this property. |
This entity shall define the characteristics of a replica.
The properties defined for the StorageReplicaInfo 1.3.0 object are summarized in Table 83.
Property | Type | Notes |
---|---|---|
@odata.etag | string read-only |
The value of this property shall be a string that is defined by the ETag HTTP header definition in RFC7232. |
Actions (v1.2+) {} | object | The Actions property shall contain the available actions for this resource. |
Description | string read-only (null) |
This object represents the description of this resource. The resource values shall comply with the Redfish Specification-described requirements. |
Id | string read-only required |
This property represents an identifier for the resource. The resource values shall comply with the Redfish Specification-described requirements. |
Name | string read-only required |
This object represents the name of this resource or array member. The resource values shall comply with the Redfish Specification-described requirements. This string value shall be of the ‘Name’ reserved word format. |
Oem {} | object | This property shall contain the OEM extensions. All values for properties that this object contains shall conform to the Redfish Specification-described requirements. See the Resource schema for details on this property. |
Collection of resources that the system can make available to one or more host systems. The collection can contain: block, file, or object storage; local system access points through which the collection is made available; hosts, or host access points to which the collection is made available.
/redfish/v1/StorageServices/{StorageServiceId}
The properties defined for the StorageService 1.4.0 object are summarized in Table 84.
Property | Type | Notes |
---|---|---|
@odata.etag | string read-only |
The value of this property shall be a string that is defined by the ETag HTTP header definition in RFC7232. |
Actions { | object | The Actions property shall contain the available actions for this resource. |
#StorageService.SetEncryptionKey {} | object | This defines the name of the custom action supported on this resource. For more information, see the Actions section below. |
} | ||
ClassesOfService { | object | The value of each entry in the array shall reference a ClassOfService supported by this service. Contains a link to a resource. |
@odata.id | string read-only |
Link to Collection of LineOfService. See the LineOfService schema for details. |
} |
Property | Type | Notes |
---|---|---|
ClientEndpointGroups { | object | The value of each entry in the array shall reference an EndpointGroup. Contains a link to a resource. |
@odata.id | string read-only |
Link to Collection of EndpointGroup. See the EndpointGroup schema for details. |
} | ||
ConsistencyGroups (v1.3+) { | object | The value of each entry in the array shall reference a ConsistencyGroup. Contains a link to a resource. |
@odata.id | string read-only |
Link to Collection of ConsistencyGroup. See the ConsistencyGroup schema for details. |
} | ||
DataProtectionLoSCapabilities (v1.2+) { | object | The value shall reference the data protection capabilities of this service. See the DataProtectionLoSCapabilities schema for details on this property. |
@odata.id | string read-only |
Link to a DataProtectionLoSCapabilities resource. See the Links section and the DataProtectionLoSCapabilities schema for details. |
} | ||
DataSecurityLoSCapabilities (v1.2+) { | object | The value shall reference the data security capabilities of this service. See the DataSecurityLoSCapabilities schema for details on this property. |
@odata.id | string read-only |
Link to a DataSecurityLoSCapabilities resource. See the Links section and the DataSecurityLoSCapabilities schema for details. |
} |
Property | Type | Notes |
---|---|---|
DataStorageLoSCapabilities (v1.2+) { | object | The value shall reference the data storage capabilities of this service. See the DataStorageLoSCapabilities schema for details on this property. |
@odata.id | string read-only |
Link to a DataStorageLoSCapabilities resource. See the Links section and the DataStorageLoSCapabilities schema for details. |
} | ||
DefaultClassOfService (v1.2+) { | object | If present, this property shall reference the default class of service for entities allocated by this storage service. This default may be overridden by the DefaultClassOfService property values within contained StoragePools. |
@odata.id | string read-only |
The value of this property shall be the unique identifier for the resource and it shall be of the form defined in the Redfish specification. |
} | ||
Description | string read-only (null) |
This object represents the description of this resource. The resource values shall comply with the Redfish Specification-described requirements. |
Drives { | object | A collection that indicates all the drives managed by this storage service. Contains a link to a resource. |
@odata.id | string read-only |
Link to Collection of Drive. See the Drive schema for details. |
} | ||
EndpointGroups { | object | The value of each entry in the array shall reference an EndpointGroup. Contains a link to a resource. |
} |
Property | Type | Notes |
---|---|---|
@odata.id | string read-only |
Link to Collection of EndpointGroup. See the EndpointGroup schema for details. |
Endpoints { | object | The value of each entry in the array shall reference an Endpoint managed by this service. |
@odata.id | string read-only |
The value of this property shall be the unique identifier for the resource and it shall be of the form defined in the Redfish specification. |
} | ||
FileSystems { | object | An array of references to FileSystems managed by this storage service. Contains a link to a resource. |
@odata.id | string read-only |
Link to Collection of FileSystem. See the FileSystem schema for details. |
} | ||
Id | string read-only required |
This property represents an identifier for the resource. The resource values shall comply with the Redfish Specification-described requirements. |
Identifier {} | object | The value identifies this resource. The value shall be unique within the managed ecosystem. See the v1_9_1.v1_9_1 schema for details on this property. |
IOConnectivityLoSCapabilities (v1.2+) { | object | The value shall reference the IO connectivity capabilities of this service. See the IOConnectivityLoSCapabilities schema for details on this property. |
@odata.id | string read-only |
Link to a IOConnectivityLoSCapabilities resource. See the Links section and the IOConnectivityLoSCapabilities schema for details. |
Property | Type | Notes |
---|---|---|
} | ||
IOPerformanceLoSCapabilities (v1.2+) { | object | The value shall reference the IO performance capabilities of this service. See the IOPerformanceLoSCapabilities schema for details on this property. |
@odata.id | string read-only |
Link to a IOPerformanceLoSCapabilities resource. See the Links section and the IOPerformanceLoSCapabilities schema for details. |
} | ||
IOStatistics (v1.2+) {} | object | The value shall represent IO statistics for this StorageService. See the IOStatistics schema for details on this property. |
LinesOfService (v1.4+) [ { | array | The value of each entry shall reference a LineOfService collection defined for this service. |
@odata.id | string read-only |
Link to Collection of LineOfService. See the LineOfService schema for details. |
} ] | ||
Links { | object | This property shall contain links to other resources that are related to this resource. |
DataProtectionLoSCapabilities { | object | The value shall reference the data protection capabilities of this service. See the DataProtectionLoSCapabilities schema for details on this property. |
@odata.id | string read-only |
Link to a DataProtectionLoSCapabilities resource. See the Links section and the DataProtectionLoSCapabilities schema for details. |
} |
Property | Type | Notes |
---|---|---|
DataSecurityLoSCapabilities { | object | The value shall reference the data security capabilities of this service. See the DataSecurityLoSCapabilities schema for details on this property. |
@odata.id | string read-only |
Link to a DataSecurityLoSCapabilities resource. See the Links section and the DataSecurityLoSCapabilities schema for details. |
} | ||
DataStorageLoSCapabilities { | object | The value shall reference the data storage capabilities of this service. See the DataStorageLoSCapabilities schema for details on this property. |
@odata.id | string read-only |
Link to a DataStorageLoSCapabilities resource. See the Links section and the DataStorageLoSCapabilities schema for details. |
} | ||
DefaultClassOfService { | object | If present, this property shall reference the default class of service for entities allocated by this storage service. This default may be overridden by the DefaultClassOfService property values within contained StoragePools. |
@odata.id | string read-only |
The value of this property shall be the unique identifier for the resource and it shall be of the form defined in the Redfish specification. |
} | ||
HostingSystem | read-write |
The value shall reference the ComputerSystem or StorageController that hosts this service. |
IOConnectivityLoSCapabilities { | object | The value shall reference the IO connectivity capabilities of this service. See the IOConnectivityLoSCapabilities schema for details on this property. |
Property | Type | Notes |
---|---|---|
@odata.id | string read-only |
Link to a IOConnectivityLoSCapabilities resource. See the Links section and the IOConnectivityLoSCapabilities schema for details. |
} | ||
IOPerformanceLoSCapabilities { | object | The value shall reference the IO performance capabilities of this service. See the IOPerformanceLoSCapabilities schema for details on this property. |
@odata.id | string read-only |
Link to a IOPerformanceLoSCapabilities resource. See the Links section and the IOPerformanceLoSCapabilities schema for details. |
} | ||
Oem {} | object | This property shall contain the OEM extensions. All values for properties contained in this object shall conform to the Redfish Specification-described requirements. See the Resource schema for details on this property. |
} | ||
Name | string read-only required |
This object represents the name of this resource or array member. The resource values shall comply with the Redfish Specification-described requirements. This string value shall be of the ‘Name’ reserved word format. |
Oem {} | object | This property shall contain the OEM extensions. All values for properties that this object contains shall conform to the Redfish Specification-described requirements. See the Resource schema for details on this property. |
Property | Type | Notes |
---|---|---|
Redundancy [ { | array | This collection shall contain the redundancy information for the storage subsystem. |
@odata.id | string read-only |
The value of this property shall be the unique identifier for the resource and it shall be of the form defined in the Redfish specification. |
} ] | ||
ServerEndpointGroups { | object | The value of each entry in the array shall reference a EndpointGroup. Contains a link to a resource. |
@odata.id | string read-only |
Link to Collection of EndpointGroup. See the EndpointGroup schema for details. |
} | ||
SpareResourceSets (v1.2+) [ { | array | Each contained SpareResourceSet shall contain resources that may be utilized to replace the capacity provided by a failed resource having a compatible type. |
@odata.id | string read-only |
Link to a SpareResourceSet resource. See the Links section and the SpareResourceSet schema for details. |
} ] | ||
Status {} | object | The property shall contain the status of the StorageService. See the Resource schema for details on this property. |
StorageGroups { | object | The value of each entry in the array shall reference a StorageGroup. Contains a link to a resource. |
@odata.id | string read-only |
Link to Collection of StorageGroup. See the StorageGroup schema for details. |
} | ||
StoragePools { | object | An array of references to StoragePools. Contains a link to a resource. |
Property | Type | Notes |
---|---|---|
@odata.id | string read-only |
Link to Collection of StoragePool. See the StoragePool schema for details. |
} | ||
StorageSubsystems (v1.0.1+) { | object | The value shall be a link to a collection of type StorageCollection having members that represent storage subsystems managed by this storage service. |
@odata.id | string read-only |
The value of this property shall be the unique identifier for the resource and it shall be of the form defined in the Redfish specification. |
} | ||
Volumes { | object | An array of references to Volumes managed by this storage service. Contains a link to a resource. |
@odata.id | string read-only |
Link to Collection of Volume. See the Volume schema for details. |
} |
This defines the name of the custom action supported on this resource.
URIs:
/redfish/v1/StorageServices/{StorageServiceId}/Actions/StorageService.SetEncryptionKey
Parameters
The parameters for the action (which can be included in the POST body to the URI shown in the ‘target’ property of the action) are summarized in Table 85.
Parameter | Type | Notes |
---|---|---|
EncryptionKey | string optional |
This defines the property name for the action. |
/redfish/v1/StorageServices
The properties defined for the StorageServiceCollection object are summarized in Table 86.
Property | Type | Notes |
---|---|---|
@odata.etag | string read-only |
The value of this property shall be a string that is defined by the ETag HTTP header definition in RFC7232. |
Description | string read-only (null) |
This object represents the description of this resource. The resource values shall comply with the Redfish Specification-described requirements. |
Members [ { | array | The value of each member entry shall reference a StorageService resource. |
@odata.id | string read-only |
Link to a StorageService resource. See the Links section and the StorageService schema for details. |
} ] |
Property | Type | Notes |
---|---|---|
Members@odata.nextLink | string read-only |
The value of this property shall be a URI to a resource, with the same @odata.type, containing the next set of partial members. |
Name | string read-only |
This object represents the name of this resource or array member. The resource values shall comply with the Redfish Specification-described requirements. This string value shall be of the ‘Name’ reserved word format. |
Oem {} | object | This property shall contain the OEM extensions. All values for properties contained in this object shall conform to the Redfish Specification-described requirements. See the Resource schema for details on this property. |
/redfish/v1/StorageSystems
The properties defined for the StorageSystemCollection object are summarized in Table 87.
Property | Type | Notes |
---|---|---|
@odata.etag | string read-only |
The value of this property shall be a string that is defined by the ETag HTTP header definition in RFC7232. |
Property | Type | Notes |
---|---|---|
Description | string read-only (null) |
This object represents the description of this resource. The resource values shall comply with the Redfish Specification-described requirements. |
Members [ { | array | The value of each member entry shall reference a ComputerSystem resource that shall have a HostingRoles entry with a value of ‘StorageServer’. |
@odata.id | string read-only |
The value of this property shall be the unique identifier for the resource and it shall be of the form defined in the Redfish specification. |
} ] | ||
Members@odata.nextLink | string read-only |
The value of this property shall be a URI to a resource, with the same @odata.type, containing the next set of partial members. |
Name | string read-only |
This object represents the name of this resource or array member. The resource values shall comply with the Redfish Specification-described requirements. This string value shall be of the ‘Name’ reserved word format. |
Oem {} | object | This property shall contain the OEM extensions. All values for properties contained in this object shall conform to the Redfish Specification-described requirements. See the Resource schema for details on this property. |
This resource shall be used to represent a volume, virtual disk, logical disk, LUN, or other logical storage for a Redfish implementation.
/redfish/v1/CompositionService/ResourceBlocks/{ResourceBlockId}/Storage/{StorageId}/Volumes/{VolumeId} /redfish/v1/CompositionService/ResourceBlocks/{ResourceBlockId}/Systems/{ComputerSystemId}/Storage/{StorageId}/Volumes/{VolumeId} /redfish/v1/ResourceBlocks/{ResourceBlockId}/Storage/{StorageId}/Volumes/{VolumeId} /redfish/v1/ResourceBlocks/{ResourceBlockId}/Systems/{ComputerSystemId}/Storage/{StorageId}/Volumes/{VolumeId} /redfish/v1/StorageServices/{StorageServiceId}/ConsistencyGroups/{ConsistencyGroupId}/Volumes/{VolumeId} /redfish/v1/StorageServices/{StorageServiceId}/FileSystems/{FileSystemId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{VolumeId} /redfish/v1/StorageServices/{StorageServiceId}/StoragePools/{StoragePoolId}/AllocatedVolumes/{VolumeId} /redfish/v1/StorageServices/{StorageServiceId}/StoragePools/{StoragePoolId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{VolumeId} /redfish/v1/StorageServices/{StorageServiceId}/Volumes/{VolumeId} /redfish/v1/StorageServices/{StorageServiceId}/Volumes/{VolumeId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{ProvidingVolumeId} /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/ConsistencyGroups/{ConsistencyGroupId}/Volumes/{VolumeId} /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/FileSystems/{FileSystemId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{VolumeId} /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/StoragePools/{StoragePoolId}/AllocatedVolumes/{VolumeId} /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/StoragePools/{StoragePoolId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{VolumeId} /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/Volumes/{VolumeId}
The properties defined for the Volume 1.4.1 object are summarized in Table 88.
Property | Type | Notes |
---|---|---|
@odata.etag | string read-only |
The value of this property shall be a string that is defined by the ETag HTTP header definition in RFC7232. |
Property | Type | Notes |
---|---|---|
AccessCapabilities (v1.1+) [ ] | array (string (enum)) read-write (null) |
Each entry shall specify a current storage access capability. StorageAccessCapability enumeration literals may be used to describe abilities to read or write storage. For the possible property values, see AccessCapabilities in Property details. |
Actions { | object | The Actions property shall contain the available actions for this resource. |
#Volume.AssignReplicaTarget (v1.4+) {} | object | This action shall be used to establish a replication relationship by assigning an existing volume to serve as a target replica for an existing source volume. For more information, see the Actions section below. |
#Volume.CheckConsistency {} | object | This defines the name of the custom action supported on this resource. For more information, see the Actions section below. |
#Volume.CreateReplicaTarget (v1.4+) {} | object | This action shall be used to create a new volume resource to provide expanded data protection through a replica relationship with the specified source volume. For more information, see the Actions section below. |
Property | Type | Notes |
---|---|---|
#Volume.Initialize {} | object | This defines the name of the custom action supported on this resource. If InitializeType is not specified in the request body, the InitializeType should be Fast. For more information, see the Actions section below. |
#Volume.RemoveReplicaRelationship (v1.4+) {} | object | This action shall be used to disable data synchronization between a source and target volume, remove the replication relationship, and optionally delete the target volume. For more information, see the Actions section below. |
#Volume.ResumeReplication (v1.4+) {} | object | This action shall be used to resume the active data synchronization between a source and target volume, without otherwise altering the replication relationship. For more information, see the Actions section below. |
#Volume.ReverseReplicationRelationship (v1.4+) {} | object | This action shall be used to reverse the replication relationship between a source and target volume. For more information, see the Actions section below. |
#Volume.SplitReplication (v1.4+) {} | object | This action shall be used to split the replication relationship and suspend data synchronization between a source and target volume. For more information, see the Actions section below. |
Property | Type | Notes |
---|---|---|
#Volume.SuspendReplication (v1.4+) {} | object | This action shall be used to suspend active data synchronization between a source and target volume, without otherwise altering the replication relationship. For more information, see the Actions section below. |
} | ||
AllocatedPools (v1.1+) { | object | The value of this property shall contain references to all storage pools allocated from this volume. Contains a link to a resource. |
@odata.id | string read-only |
Link to Collection of StoragePool. See the StoragePool schema for details. |
} | ||
BlockSizeBytes | integer (By) read-only (null) |
This property shall contain size of the smallest addressable unit of the associated volume. |
Capacity (v1.1+) {} | object | Information about the utilization of capacity allocated to this storage volume. See the CapacitySource.v1_0_0 schema for details on this property. |
CapacityBytes | integer (By) read-write (null) |
This property shall contain the size in bytes of the associated volume. |
CapacitySources (v1.1+) [ { | array | Fully or partially consumed storage from a source resource. Each entry provides capacity allocation information from a named source resource. |
Property | Type | Notes |
---|---|---|
@odata.id | string read-only |
Link to a CapacitySource resource. See the Links section and the CapacitySource schema for details. |
} ] | ||
Compressed (v1.4+) | boolean read-write (null) |
This property shall contain a boolean indicator if the Volume is currently utilizing compression or not. |
Deduplicated (v1.4+) | boolean read-write (null) |
This property shall contain a boolean indicator if the Volume is currently utilizing deduplication or not. |
Description | string read-only (null) |
This object represents the description of this resource. The resource values shall comply with the Redfish Specification-described requirements. |
DisplayName (v1.4+) | string read-write (null) |
This property shall contain a user-configurable string to name the volume. |
Encrypted | boolean read-write (null) |
This property shall contain a boolean indicator if the Volume is currently utilizing encryption or not. |
EncryptionTypes [ ] | array (string (enum)) read-write |
This property shall contain the types of encryption used by this Volume. For the possible property values, see EncryptionTypes in Property details. |
Property | Type | Notes |
---|---|---|
Id | string read-only required |
This property represents an identifier for the resource. The resource values shall comply with the Redfish Specification-described requirements. |
Identifiers [ { } ] | array (object) | This property shall contain a list of all known durable names for the associated volume. This type shall contain any additional identifiers for a resource. See the v1_9_1.v1_9_1 schema for details on this property. |
IOStatistics (v1.2+) {} | object | The value shall represent IO statistics for this volume. See the IOStatistics schema for details on this property. |
Links { | object | The Links property, as described by the Redfish Specification, shall contain references to resources that are related to, but not contained by (subordinate to), this resource. |
ClassOfService (v1.1+) { | object | This property shall contain a reference to the ClassOfService that this storage volume conforms to. |
@odata.id | string read-only |
The value of this property shall be the unique identifier for the resource and it shall be of the form defined in the Redfish specification. |
} | ||
ClientEndpoints (v1.4+) [ { | array | The value of this property shall be references to the client Endpoints this volume is associated with. |
@odata.id | string read-only |
The value of this property shall be the unique identifier for the resource and it shall be of the form defined in the Redfish specification. |
} ] |
Property | Type | Notes |
---|---|---|
ClientEndpoints@odata.count | integer read-only |
The value of this property shall be an integer representing the number of items in a collection. |
ConsistencyGroups (v1.4+) [ { | array | The value of this property shall be references to the ConsistencyGroups this volume is associated with. |
@odata.id | string read-only |
Link to a ConsistencyGroup resource. See the Links section and the ConsistencyGroup schema for details. |
} ] | ||
ConsistencyGroups@odata.count | integer read-only |
The value of this property shall be an integer representing the number of items in a collection. |
DedicatedSpareDrives (v1.2+) [ { | array | The value of this property shall be a reference to the resources that this volume is associated with and shall reference resources of type Drive. This property shall only contain references to Drive entities which are currently assigned as a dedicated spare and are able to support this Volume. |
@odata.id | string read-only |
The value of this property shall be the unique identifier for the resource and it shall be of the form defined in the Redfish specification. |
} ] | ||
DedicatedSpareDrives@odata.count | integer read-only |
The value of this property shall be an integer representing the number of items in a collection. |
Property | Type | Notes |
---|---|---|
Drives [ { | array | The value of this property shall be a reference to the resources that this volume is associated with and shall reference resources of type Drive. This property shall only contain references to Drive entities which are currently members of the Volume, not hot spare Drives which are not currently a member of the volume. |
@odata.id | string read-only |
The value of this property shall be the unique identifier for the resource and it shall be of the form defined in the Redfish specification. |
} ] | ||
Drives@odata.count | integer read-only |
The value of this property shall be an integer representing the number of items in a collection. |
Oem {} | object | This property shall contain the OEM extensions. All values for properties contained in this object shall conform to the Redfish Specification-described requirements. See the Resource schema for details on this property. |
OwningStorageService (v1.4+) { | object | This shall be a pointer to the StorageService that owns or contains this volume. See the StorageService schema for details on this property. |
@odata.id | string read-only |
Link to a StorageService resource. See the Links section and the StorageService schema for details. |
} | ||
ServerEndpoints (v1.4+) [ { | array | The value of this property shall be references to the server Endpoints this volume is associated with. |
@odata.id | string read-only |
The value of this property shall be the unique identifier for the resource and it shall be of the form defined in the Redfish specification. |
} ] |
Property | Type | Notes |
---|---|---|
ServerEndpoints@odata.count | integer read-only |
The value of this property shall be an integer representing the number of items in a collection. |
SpareResourceSets (v1.3+) [ { | array | Each referenced SpareResourceSet shall contain resources that may be utilized to replace the capacity provided by a failed resource having a compatible type. |
@odata.id | string read-only |
Link to a SpareResourceSet resource. See the Links section and the SpareResourceSet schema for details. |
} ] | ||
SpareResourceSets@odata.count | integer read-only |
The value of this property shall be an integer representing the number of items in a collection. |
StorageGroups (v1.4+) [ { | array | The value of this property shall be references to the StorageGroups this volume is associated with. |
@odata.id | string read-only |
Link to a StorageGroup resource. See the Links section and the StorageGroup schema for details. |
} ] | ||
StorageGroups@odata.count | integer read-only |
The value of this property shall be an integer representing the number of items in a collection. |
} |
Property | Type | Notes |
---|---|---|
LogicalUnitNumber (v1.4+) | integer read-only (null) |
This property shall contain host-visible LogicalUnitNumber assigned to this Volume. This property shall only be used when in a single connect configuration and no StorageGroup configuration is used. |
LowSpaceWarningThresholdPercents (v1.1+) [ ] | array (%) (integer, null) read-write |
Each time the following value is less than one of the values in the array the LOW_SPACE_THRESHOLD_WARNING event shall be triggered: Across all CapacitySources entries, percent = (SUM(AllocatedBytes) - SUM(ConsumedBytes))/SUM(AllocatedBytes). |
Manufacturer (v1.1+) | string read-only (null) |
This property shall contain a value that represents the manufacturer or implementer of the storage volume. |
MaxBlockSizeBytes (v1.1+) | integer (By) read-only (null) |
This property shall contain size of the largest addressable unit of this storage volume. |
MediaSpanCount (v1.4+) | integer read-only (null) |
This property shall indicate the number of media elements used per span in the secondary RAID for a hierarchical RAID type. |
Property | Type | Notes |
---|---|---|
Model (v1.1+) | string read-only (null) |
The value is assigned by the manufacturer and shall represents a specific storage volume implementation. |
Name | string read-only required |
This object represents the name of this resource or array member. The resource values shall comply with the Redfish Specification-described requirements. This string value shall be of the ‘Name’ reserved word format. |
Oem {} | object | This property shall contain the OEM extensions. All values for properties that this object contains shall conform to the Redfish Specification-described requirements. See the Resource schema for details on this property. |
Operations [ { | array | This property shall contain a list of all currently running on the Volume. |
AssociatedTask { | object | This Resource contains a Task for a Redfish implementation. |
@odata.id | string read-only |
The value of this property shall be the unique identifier for the resource and it shall be of the form defined in the Redfish specification. |
} | ||
OperationName | string read-only (null) |
The name of the operation. |
PercentageComplete | integer read-only (null) |
The percentage of the operation that has been completed. |
} ] |
Property | Type | Notes |
---|---|---|
OptimumIOSizeBytes | integer (By) read-only (null) |
This property shall contain the optimum IO size to use when performing IO on this volume. For logical disks, this is the stripe size. For physical disks, this describes the physical sector size. |
ProvisioningPolicy (v1.4+) | string (enum) read-write (null) |
This property shall specify the volume’s supported storage allocation policy. For the possible property values, see ProvisioningPolicy in Property details. |
RAIDType (v1.3.1+) | string (enum) read-only (null) |
This property shall contain the RAID type of the associated Volume. For the possible property values, see RAIDType in Property details. |
ReadCachePolicy (v1.4+) | string (enum) read-write (null) |
This property shall contain a boolean indicator of the read cache policy for the Volume. For the possible property values, see ReadCachePolicy in Property details. |
RecoverableCapacitySourceCount (v1.3+) | integer read-write (null) |
The value is the number of available capacity source resources currently available in the event that an equivalent capacity source resource fails. |
RemainingCapacityPercent (v1.2+) | integer read-only (null) |
If present, this value shall return {[(SUM(AllocatedBytes) - SUM(ConsumedBytes)]/SUM(AllocatedBytes)}*100 represented as an integer value. |
Property | Type | Notes |
---|---|---|
ReplicaInfo (v1.1+) {} | object | This property shall describe the replica relationship between this storage volume and a corresponding source volume. See the StorageReplicaInfo.v1_3_0 schema for details on this property. |
ReplicaTargets (v1.3+) [ { | array | The value shall reference the target replicas that are sourced by this replica. |
@odata.id | string read-only |
The value of this property shall be the unique identifier for the resource and it shall be of the form defined in the Redfish specification. |
} ] | ||
Status {} | object | The property shall contain the status of the Volume. See the Resource schema for details on this property. |
StorageGroups (v1.1+) { | object | The value of this property shall contain references to all storage groups that include this volume. Contains a link to a resource. |
@odata.id | string read-only |
Link to Collection of StorageGroup. See the StorageGroup schema for details. |
} | ||
StripSizeBytes (v1.4+) | integer (By) read-write (null) |
The number of consecutively addressed virtual disk blocks (bytes) mapped to consecutively addressed blocks on a single member extent of a disk array. Synonym for stripe depth and chunk size. |
VolumeType | string (enum) read-only (null) |
This property shall contain the type of the associated Volume. For the possible property values, see VolumeType in Property details. |
Property | Type | Notes |
---|---|---|
VolumeUsage (v1.4+) | string (enum) read-only (null) |
This property shall contain the volume usage type for the Volume. For the possible property values, see VolumeUsage in Property details. |
WriteCachePolicy (v1.4+) | string (enum) read-write (null) |
This property shall contain a boolean indicator of the write cache policy for the Volume. For the possible property values, see WriteCachePolicy in Property details. |
WriteCacheState (v1.4+) | string (enum) read-only (null) |
This property shall contain the WriteCacheState policy setting for the Volume. For the possible property values, see WriteCacheState in Property details. |
WriteHoleProtectionPolicy (v1.4+) | string (enum) read-write |
This property specifies the policy that is enabled to address the write hole issue on the RAID volume. If no policy is enabled at the moment, this property shall be set to ‘Off’. For the possible property values, see WriteHoleProtectionPolicy in Property details. |
This action shall be used to establish a replication relationship by assigning an existing volume to serve as a target replica for an existing source volume.
URIs:
/redfish/v1/CompositionService/ResourceBlocks/{ResourceBlockId}/Storage/{StorageId}/Volumes/{VolumeId}/Actions/Volume.AssignReplicaTarget /redfish/v1/CompositionService/ResourceBlocks/{ResourceBlockId}/Systems/{ComputerSystemId}/Storage/{StorageId}/Volumes/{VolumeId}/Actions/Volume.AssignReplicaTarget /redfish/v1/ResourceBlocks/{ResourceBlockId}/Storage/{StorageId}/Volumes/{VolumeId}/Actions/Volume.AssignReplicaTarget /redfish/v1/ResourceBlocks/{ResourceBlockId}/Systems/{ComputerSystemId}/Storage/{StorageId}/Volumes/{VolumeId}/Actions/Volume.AssignReplicaTarget /redfish/v1/StorageServices/{StorageServiceId}/ConsistencyGroups/{ConsistencyGroupId}/Volumes/{VolumeId}/Actions/Volume.AssignReplicaTarget /redfish/v1/StorageServices/{StorageServiceId}/FileSystems/{FileSystemId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{VolumeId}/Actions/Volume.AssignReplicaTarget /redfish/v1/StorageServices/{StorageServiceId}/StoragePools/{StoragePoolId}/AllocatedVolumes/{VolumeId}/Actions/Volume.AssignReplicaTarget /redfish/v1/StorageServices/{StorageServiceId}/StoragePools/{StoragePoolId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{VolumeId}/Actions/Volume.AssignReplicaTarget /redfish/v1/StorageServices/{StorageServiceId}/Volumes/{VolumeId}/Actions/Volume.AssignReplicaTarget /redfish/v1/StorageServices/{StorageServiceId}/Volumes/{VolumeId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{ProvidingVolumeId}/Actions/Volume.AssignReplicaTarget /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/ConsistencyGroups/{ConsistencyGroupId}/Volumes/{VolumeId}/Actions/Volume.AssignReplicaTarget /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/FileSystems/{FileSystemId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{VolumeId}/Actions/Volume.AssignReplicaTarget /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/StoragePools/{StoragePoolId}/AllocatedVolumes/{VolumeId}/Actions/Volume.AssignReplicaTarget /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/StoragePools/{StoragePoolId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{VolumeId}/Actions/Volume.AssignReplicaTarget /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/Volumes/{VolumeId}/Actions/Volume.AssignReplicaTarget
Parameters
The parameters for the action (which can be included in the POST body to the URI shown in the ‘target’ property of the action) are summarized in Table 89.
Parameter | Type | Notes |
---|---|---|
ReplicaType | string (enum) required |
This parameter shall contain the type of replica relationship to be created (e.g., Clone, Mirror, Snap). For the possible property values, see ReplicaType in Property details. |
Parameter | Type | Notes |
---|---|---|
ReplicaUpdateMode | string (enum) required |
This parameter shall specify the replica update mode. For the possible property values, see ReplicaUpdateMode in Property details. |
TargetVolume | string required |
This parameter shall contain the Uri to the existing target volume. |
This defines the name of the custom action supported on this resource.
URIs:
/redfish/v1/CompositionService/ResourceBlocks/{ResourceBlockId}/Storage/{StorageId}/Volumes/{VolumeId}/Actions/Volume.CheckConsistency /redfish/v1/CompositionService/ResourceBlocks/{ResourceBlockId}/Systems/{ComputerSystemId}/Storage/{StorageId}/Volumes/{VolumeId}/Actions/Volume.CheckConsistency /redfish/v1/ResourceBlocks/{ResourceBlockId}/Storage/{StorageId}/Volumes/{VolumeId}/Actions/Volume.CheckConsistency /redfish/v1/ResourceBlocks/{ResourceBlockId}/Systems/{ComputerSystemId}/Storage/{StorageId}/Volumes/{VolumeId}/Actions/Volume.CheckConsistency /redfish/v1/StorageServices/{StorageServiceId}/ConsistencyGroups/{ConsistencyGroupId}/Volumes/{VolumeId}/Actions/Volume.CheckConsistency /redfish/v1/StorageServices/{StorageServiceId}/FileSystems/{FileSystemId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{VolumeId}/Actions/Volume.CheckConsistency /redfish/v1/StorageServices/{StorageServiceId}/StoragePools/{StoragePoolId}/AllocatedVolumes/{VolumeId}/Actions/Volume.CheckConsistency /redfish/v1/StorageServices/{StorageServiceId}/StoragePools/{StoragePoolId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{VolumeId}/Actions/Volume.CheckConsistency /redfish/v1/StorageServices/{StorageServiceId}/Volumes/{VolumeId}/Actions/Volume.CheckConsistency /redfish/v1/StorageServices/{StorageServiceId}/Volumes/{VolumeId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{ProvidingVolumeId}/Actions/Volume.CheckConsistency /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/ConsistencyGroups/{ConsistencyGroupId}/Volumes/{VolumeId}/Actions/Volume.CheckConsistency /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/FileSystems/{FileSystemId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{VolumeId}/Actions/Volume.CheckConsistency /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/StoragePools/{StoragePoolId}/AllocatedVolumes/{VolumeId}/Actions/Volume.CheckConsistency /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/StoragePools/{StoragePoolId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{VolumeId}/Actions/Volume.CheckConsistency /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/Volumes/{VolumeId}/Actions/Volume.CheckConsistency
Parameters
(This action takes no parameters.)
This action shall be used to create a new volume resource to provide expanded data protection through a replica relationship with the specified source volume.
URIs:
/redfish/v1/CompositionService/ResourceBlocks/{ResourceBlockId}/Storage/{StorageId}/Volumes/{VolumeId}/Actions/Volume.CreateReplicaTarget /redfish/v1/CompositionService/ResourceBlocks/{ResourceBlockId}/Systems/{ComputerSystemId}/Storage/{StorageId}/Volumes/{VolumeId}/Actions/Volume.CreateReplicaTarget /redfish/v1/ResourceBlocks/{ResourceBlockId}/Storage/{StorageId}/Volumes/{VolumeId}/Actions/Volume.CreateReplicaTarget /redfish/v1/ResourceBlocks/{ResourceBlockId}/Systems/{ComputerSystemId}/Storage/{StorageId}/Volumes/{VolumeId}/Actions/Volume.CreateReplicaTarget /redfish/v1/StorageServices/{StorageServiceId}/ConsistencyGroups/{ConsistencyGroupId}/Volumes/{VolumeId}/Actions/Volume.CreateReplicaTarget /redfish/v1/StorageServices/{StorageServiceId}/FileSystems/{FileSystemId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{VolumeId}/Actions/Volume.CreateReplicaTarget /redfish/v1/StorageServices/{StorageServiceId}/StoragePools/{StoragePoolId}/AllocatedVolumes/{VolumeId}/Actions/Volume.CreateReplicaTarget /redfish/v1/StorageServices/{StorageServiceId}/StoragePools/{StoragePoolId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{VolumeId}/Actions/Volume.CreateReplicaTarget /redfish/v1/StorageServices/{StorageServiceId}/Volumes/{VolumeId}/Actions/Volume.CreateReplicaTarget /redfish/v1/StorageServices/{StorageServiceId}/Volumes/{VolumeId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{ProvidingVolumeId}/Actions/Volume.CreateReplicaTarget /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/ConsistencyGroups/{ConsistencyGroupId}/Volumes/{VolumeId}/Actions/Volume.CreateReplicaTarget /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/FileSystems/{FileSystemId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{VolumeId}/Actions/Volume.CreateReplicaTarget /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/StoragePools/{StoragePoolId}/AllocatedVolumes/{VolumeId}/Actions/Volume.CreateReplicaTarget /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/StoragePools/{StoragePoolId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{VolumeId}/Actions/Volume.CreateReplicaTarget /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/Volumes/{VolumeId}/Actions/Volume.CreateReplicaTarget
Parameters
The parameters for the action (which can be included in the POST body to the URI shown in the ‘target’ property of the action) are summarized in Table 90.
Parameter | Type | Notes |
---|---|---|
ReplicaType | string (enum) required |
This parameter shall contain the type of replica relationship to be created (e.g., Clone, Mirror, Snap). For the possible property values, see ReplicaType in Property details. |
ReplicaUpdateMode | string (enum) required |
This parameter shall specify the replica update mode. For the possible property values, see ReplicaUpdateMode in Property details. |
TargetStoragePool | string required |
This parameter shall contain the Uri to the existing StoragePool in which to create the target volume. |
VolumeName | string optional |
This parameter shall contain the Name for the target volume. |
This defines the name of the custom action supported on this resource. If InitializeType is not specified in the request body, the InitializeType should be Fast.
URIs:
/redfish/v1/CompositionService/ResourceBlocks/{ResourceBlockId}/Storage/{StorageId}/Volumes/{VolumeId}/Actions/Volume.Initialize /redfish/v1/CompositionService/ResourceBlocks/{ResourceBlockId}/Systems/{ComputerSystemId}/Storage/{StorageId}/Volumes/{VolumeId}/Actions/Volume.Initialize /redfish/v1/ResourceBlocks/{ResourceBlockId}/Storage/{StorageId}/Volumes/{VolumeId}/Actions/Volume.Initialize /redfish/v1/ResourceBlocks/{ResourceBlockId}/Systems/{ComputerSystemId}/Storage/{StorageId}/Volumes/{VolumeId}/Actions/Volume.Initialize /redfish/v1/StorageServices/{StorageServiceId}/ConsistencyGroups/{ConsistencyGroupId}/Volumes/{VolumeId}/Actions/Volume.Initialize /redfish/v1/StorageServices/{StorageServiceId}/FileSystems/{FileSystemId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{VolumeId}/Actions/Volume.Initialize /redfish/v1/StorageServices/{StorageServiceId}/StoragePools/{StoragePoolId}/AllocatedVolumes/{VolumeId}/Actions/Volume.Initialize /redfish/v1/StorageServices/{StorageServiceId}/StoragePools/{StoragePoolId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{VolumeId}/Actions/Volume.Initialize /redfish/v1/StorageServices/{StorageServiceId}/Volumes/{VolumeId}/Actions/Volume.Initialize /redfish/v1/StorageServices/{StorageServiceId}/Volumes/{VolumeId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{ProvidingVolumeId}/Actions/Volume.Initialize /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/ConsistencyGroups/{ConsistencyGroupId}/Volumes/{VolumeId}/Actions/Volume.Initialize /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/FileSystems/{FileSystemId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{VolumeId}/Actions/Volume.Initialize /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/StoragePools/{StoragePoolId}/AllocatedVolumes/{VolumeId}/Actions/Volume.Initialize /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/StoragePools/{StoragePoolId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{VolumeId}/Actions/Volume.Initialize /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/Volumes/{VolumeId}/Actions/Volume.Initialize
Parameters
The parameters for the action (which can be included in the POST body to the URI shown in the ‘target’ property of the action) are summarized in Table 91.
Parameter | Type | Notes |
---|---|---|
InitializeType | string (enum) optional |
This defines the property name for the action. For the possible property values, see InitializeType in Property details. |
This action shall be used to disable data synchronization between a source and target volume, remove the replication relationship, and optionally delete the target volume.
URIs:
/redfish/v1/CompositionService/ResourceBlocks/{ResourceBlockId}/Storage/{StorageId}/Volumes/{VolumeId}/Actions/Volume.RemoveReplicaRelationship /redfish/v1/CompositionService/ResourceBlocks/{ResourceBlockId}/Systems/{ComputerSystemId}/Storage/{StorageId}/Volumes/{VolumeId}/Actions/Volume.RemoveReplicaRelationship /redfish/v1/ResourceBlocks/{ResourceBlockId}/Storage/{StorageId}/Volumes/{VolumeId}/Actions/Volume.RemoveReplicaRelationship /redfish/v1/ResourceBlocks/{ResourceBlockId}/Systems/{ComputerSystemId}/Storage/{StorageId}/Volumes/{VolumeId}/Actions/Volume.RemoveReplicaRelationship /redfish/v1/StorageServices/{StorageServiceId}/ConsistencyGroups/{ConsistencyGroupId}/Volumes/{VolumeId}/Actions/Volume.RemoveReplicaRelationship /redfish/v1/StorageServices/{StorageServiceId}/FileSystems/{FileSystemId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{VolumeId}/Actions/Volume.RemoveReplicaRelationship /redfish/v1/StorageServices/{StorageServiceId}/StoragePools/{StoragePoolId}/AllocatedVolumes/{VolumeId}/Actions/Volume.RemoveReplicaRelationship /redfish/v1/StorageServices/{StorageServiceId}/StoragePools/{StoragePoolId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{VolumeId}/Actions/Volume.RemoveReplicaRelationship /redfish/v1/StorageServices/{StorageServiceId}/Volumes/{VolumeId}/Actions/Volume.RemoveReplicaRelationship /redfish/v1/StorageServices/{StorageServiceId}/Volumes/{VolumeId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{ProvidingVolumeId}/Actions/Volume.RemoveReplicaRelationship /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/ConsistencyGroups/{ConsistencyGroupId}/Volumes/{VolumeId}/Actions/Volume.RemoveReplicaRelationship /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/FileSystems/{FileSystemId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{VolumeId}/Actions/Volume.RemoveReplicaRelationship /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/StoragePools/{StoragePoolId}/AllocatedVolumes/{VolumeId}/Actions/Volume.RemoveReplicaRelationship /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/StoragePools/{StoragePoolId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{VolumeId}/Actions/Volume.RemoveReplicaRelationship /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/Volumes/{VolumeId}/Actions/Volume.RemoveReplicaRelationship
Parameters
The parameters for the action (which can be included in the POST body to the URI shown in the ‘target’ property of the action) are summarized in Table 92.
Parameter | Type | Notes |
---|---|---|
DeleteTargetVolume | boolean optional |
This parameter shall indicate whether or not to delete the target volume as part of the operation. If not defined, the system should use its default behavior. |
TargetVolume | string required |
This parameter shall contain the Uri to the existing target volume. |
This action shall be used to resume the active data synchronization between a source and target volume, without otherwise altering the replication relationship.
URIs:
/redfish/v1/CompositionService/ResourceBlocks/{ResourceBlockId}/Storage/{StorageId}/Volumes/{VolumeId}/Actions/Volume.ResumeReplication /redfish/v1/CompositionService/ResourceBlocks/{ResourceBlockId}/Systems/{ComputerSystemId}/Storage/{StorageId}/Volumes/{VolumeId}/Actions/Volume.ResumeReplication /redfish/v1/ResourceBlocks/{ResourceBlockId}/Storage/{StorageId}/Volumes/{VolumeId}/Actions/Volume.ResumeReplication /redfish/v1/ResourceBlocks/{ResourceBlockId}/Systems/{ComputerSystemId}/Storage/{StorageId}/Volumes/{VolumeId}/Actions/Volume.ResumeReplication /redfish/v1/StorageServices/{StorageServiceId}/ConsistencyGroups/{ConsistencyGroupId}/Volumes/{VolumeId}/Actions/Volume.ResumeReplication /redfish/v1/StorageServices/{StorageServiceId}/FileSystems/{FileSystemId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{VolumeId}/Actions/Volume.ResumeReplication /redfish/v1/StorageServices/{StorageServiceId}/StoragePools/{StoragePoolId}/AllocatedVolumes/{VolumeId}/Actions/Volume.ResumeReplication /redfish/v1/StorageServices/{StorageServiceId}/StoragePools/{StoragePoolId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{VolumeId}/Actions/Volume.ResumeReplication /redfish/v1/StorageServices/{StorageServiceId}/Volumes/{VolumeId}/Actions/Volume.ResumeReplication /redfish/v1/StorageServices/{StorageServiceId}/Volumes/{VolumeId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{ProvidingVolumeId}/Actions/Volume.ResumeReplication /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/ConsistencyGroups/{ConsistencyGroupId}/Volumes/{VolumeId}/Actions/Volume.ResumeReplication /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/FileSystems/{FileSystemId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{VolumeId}/Actions/Volume.ResumeReplication /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/StoragePools/{StoragePoolId}/AllocatedVolumes/{VolumeId}/Actions/Volume.ResumeReplication /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/StoragePools/{StoragePoolId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{VolumeId}/Actions/Volume.ResumeReplication /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/Volumes/{VolumeId}/Actions/Volume.ResumeReplication
Parameters
The parameters for the action (which can be included in the POST body to the URI shown in the ‘target’ property of the action) are summarized in Table 93.
Parameter | Type | Notes |
---|---|---|
TargetVolume | string required |
This parameter shall contain the Uri to the existing target volume. |
This action shall be used to reverse the replication relationship between a source and target volume.
URIs:
/redfish/v1/CompositionService/ResourceBlocks/{ResourceBlockId}/Storage/{StorageId}/Volumes/{VolumeId}/Actions/Volume.ReverseReplicationRelationship /redfish/v1/CompositionService/ResourceBlocks/{ResourceBlockId}/Systems/{ComputerSystemId}/Storage/{StorageId}/Volumes/{VolumeId}/Actions/Volume.ReverseReplicationRelationship /redfish/v1/ResourceBlocks/{ResourceBlockId}/Storage/{StorageId}/Volumes/{VolumeId}/Actions/Volume.ReverseReplicationRelationship /redfish/v1/ResourceBlocks/{ResourceBlockId}/Systems/{ComputerSystemId}/Storage/{StorageId}/Volumes/{VolumeId}/Actions/Volume.ReverseReplicationRelationship /redfish/v1/StorageServices/{StorageServiceId}/ConsistencyGroups/{ConsistencyGroupId}/Volumes/{VolumeId}/Actions/Volume.ReverseReplicationRelationship /redfish/v1/StorageServices/{StorageServiceId}/FileSystems/{FileSystemId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{VolumeId}/Actions/Volume.ReverseReplicationRelationship /redfish/v1/StorageServices/{StorageServiceId}/StoragePools/{StoragePoolId}/AllocatedVolumes/{VolumeId}/Actions/Volume.ReverseReplicationRelationship /redfish/v1/StorageServices/{StorageServiceId}/StoragePools/{StoragePoolId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{VolumeId}/Actions/Volume.ReverseReplicationRelationship /redfish/v1/StorageServices/{StorageServiceId}/Volumes/{VolumeId}/Actions/Volume.ReverseReplicationRelationship /redfish/v1/StorageServices/{StorageServiceId}/Volumes/{VolumeId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{ProvidingVolumeId}/Actions/Volume.ReverseReplicationRelationship /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/ConsistencyGroups/{ConsistencyGroupId}/Volumes/{VolumeId}/Actions/Volume.ReverseReplicationRelationship /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/FileSystems/{FileSystemId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{VolumeId}/Actions/Volume.ReverseReplicationRelationship /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/StoragePools/{StoragePoolId}/AllocatedVolumes/{VolumeId}/Actions/Volume.ReverseReplicationRelationship /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/StoragePools/{StoragePoolId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{VolumeId}/Actions/Volume.ReverseReplicationRelationship /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/Volumes/{VolumeId}/Actions/Volume.ReverseReplicationRelationship
Parameters
The parameters for the action (which can be included in the POST body to the URI shown in the ‘target’ property of the action) are summarized in Table 94.
Parameter | Type | Notes |
---|---|---|
TargetVolume | string required |
This parameter shall contain the Uri to the existing target volume. |
This action shall be used to split the replication relationship and suspend data synchronization between a source and target volume.
URIs:
/redfish/v1/CompositionService/ResourceBlocks/{ResourceBlockId}/Storage/{StorageId}/Volumes/{VolumeId}/Actions/Volume.SplitReplication /redfish/v1/CompositionService/ResourceBlocks/{ResourceBlockId}/Systems/{ComputerSystemId}/Storage/{StorageId}/Volumes/{VolumeId}/Actions/Volume.SplitReplication /redfish/v1/ResourceBlocks/{ResourceBlockId}/Storage/{StorageId}/Volumes/{VolumeId}/Actions/Volume.SplitReplication /redfish/v1/ResourceBlocks/{ResourceBlockId}/Systems/{ComputerSystemId}/Storage/{StorageId}/Volumes/{VolumeId}/Actions/Volume.SplitReplication /redfish/v1/StorageServices/{StorageServiceId}/ConsistencyGroups/{ConsistencyGroupId}/Volumes/{VolumeId}/Actions/Volume.SplitReplication /redfish/v1/StorageServices/{StorageServiceId}/FileSystems/{FileSystemId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{VolumeId}/Actions/Volume.SplitReplication /redfish/v1/StorageServices/{StorageServiceId}/StoragePools/{StoragePoolId}/AllocatedVolumes/{VolumeId}/Actions/Volume.SplitReplication /redfish/v1/StorageServices/{StorageServiceId}/StoragePools/{StoragePoolId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{VolumeId}/Actions/Volume.SplitReplication /redfish/v1/StorageServices/{StorageServiceId}/Volumes/{VolumeId}/Actions/Volume.SplitReplication /redfish/v1/StorageServices/{StorageServiceId}/Volumes/{VolumeId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{ProvidingVolumeId}/Actions/Volume.SplitReplication /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/ConsistencyGroups/{ConsistencyGroupId}/Volumes/{VolumeId}/Actions/Volume.SplitReplication /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/FileSystems/{FileSystemId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{VolumeId}/Actions/Volume.SplitReplication /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/StoragePools/{StoragePoolId}/AllocatedVolumes/{VolumeId}/Actions/Volume.SplitReplication /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/StoragePools/{StoragePoolId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{VolumeId}/Actions/Volume.SplitReplication /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/Volumes/{VolumeId}/Actions/Volume.SplitReplication
Parameters
The parameters for the action (which can be included in the POST body to the URI shown in the ‘target’ property of the action) are summarized in Table 95.
Parameter | Type | Notes |
---|---|---|
TargetVolume | string required |
This parameter shall contain the Uri to the existing target volume. |
This action shall be used to suspend active data synchronization between a source and target volume, without otherwise altering the replication relationship.
URIs:
/redfish/v1/CompositionService/ResourceBlocks/{ResourceBlockId}/Storage/{StorageId}/Volumes/{VolumeId}/Actions/Volume.SuspendReplication /redfish/v1/CompositionService/ResourceBlocks/{ResourceBlockId}/Systems/{ComputerSystemId}/Storage/{StorageId}/Volumes/{VolumeId}/Actions/Volume.SuspendReplication /redfish/v1/ResourceBlocks/{ResourceBlockId}/Storage/{StorageId}/Volumes/{VolumeId}/Actions/Volume.SuspendReplication /redfish/v1/ResourceBlocks/{ResourceBlockId}/Systems/{ComputerSystemId}/Storage/{StorageId}/Volumes/{VolumeId}/Actions/Volume.SuspendReplication /redfish/v1/StorageServices/{StorageServiceId}/ConsistencyGroups/{ConsistencyGroupId}/Volumes/{VolumeId}/Actions/Volume.SuspendReplication /redfish/v1/StorageServices/{StorageServiceId}/FileSystems/{FileSystemId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{VolumeId}/Actions/Volume.SuspendReplication /redfish/v1/StorageServices/{StorageServiceId}/StoragePools/{StoragePoolId}/AllocatedVolumes/{VolumeId}/Actions/Volume.SuspendReplication /redfish/v1/StorageServices/{StorageServiceId}/StoragePools/{StoragePoolId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{VolumeId}/Actions/Volume.SuspendReplication /redfish/v1/StorageServices/{StorageServiceId}/Volumes/{VolumeId}/Actions/Volume.SuspendReplication /redfish/v1/StorageServices/{StorageServiceId}/Volumes/{VolumeId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{ProvidingVolumeId}/Actions/Volume.SuspendReplication /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/ConsistencyGroups/{ConsistencyGroupId}/Volumes/{VolumeId}/Actions/Volume.SuspendReplication /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/FileSystems/{FileSystemId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{VolumeId}/Actions/Volume.SuspendReplication /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/StoragePools/{StoragePoolId}/AllocatedVolumes/{VolumeId}/Actions/Volume.SuspendReplication /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/StoragePools/{StoragePoolId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes/{VolumeId}/Actions/Volume.SuspendReplication /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/Volumes/{VolumeId}/Actions/Volume.SuspendReplication
Parameters
The parameters for the action (which can be included in the POST body to the URI shown in the ‘target’ property of the action) are summarized in Table 96.
Parameter | Type | Notes |
---|---|---|
TargetVolume | string required |
This parameter shall contain the Uri to the existing target volume. |
Each entry shall specify a current storage access capability. StorageAccessCapability enumeration literals may be used to describe abilities to read or write storage.
The values defined for the AccessCapabilities ENUM are summarized in Table 97.
string | Description |
---|---|
Append | This enumeration literal shall indicate that the storage may be written only to append. |
Execute | This value shall indicate that Execute access is allowed by the file share. |
Read | This enumeration literal shall indicate that the storage may be read. |
Streaming | This enumeration literal shall indicate that the storage may be read sequentially. |
Write | This enumeration literal shall indicate that the storage may be written multiple times. |
WriteOnce | This enumeration literal shall indicate that the storage may be written only once. |
This property shall contain the types of encryption used by this Volume.
The values defined for the EncryptionTypes ENUM are summarized in Table 98.
string | Description |
---|---|
ControllerAssisted | The volume is being encrypted by the storage controller entity. |
NativeDriveEncryption | The volume is utilizing the native drive encryption capabilities of the drive hardware. |
SoftwareAssisted | The volume is being encrypted by software running on the system or the operating system. |
This defines the property name for the action.
The values defined for the InitializeType ENUM are summarized in Table 99.
string | Description |
---|---|
Fast | The volume is prepared for use quickly, typically by erasing just the beginning and end of the space so that partitioning can be performed. |
Slow | The volume is prepared for use slowly, typically by completely erasing the volume. |
This property shall specify the volume’s supported storage allocation policy.
The values defined for the ProvisioningPolicy ENUM are summarized in Table 100.
string | Description |
---|---|
Fixed | This enumeration literal specifies storage shall be fully allocated. |
Thin | This enumeration literal specifies storage may be over allocated. |
This property shall contain the RAID type of the associated Volume.
The values defined for the RAIDType ENUM are summarized in Table 101.
string | Description |
---|---|
RAID0 | A placement policy where consecutive logical blocks of data are uniformly distributed across a set of independent storage devices without offering any form of redundancy. This is commonly referred to as data striping. This form of RAID will encounter data loss with the failure of any storage device in the set. |
RAID00 | A placement policy that creates a RAID 0 stripe set over two or more RAID 0 sets. This is commonly referred to as RAID 0+0. This form of data layout is not fault tolerant; if any storage device fails there will be data loss. |
RAID01 | A data placement policy that creates a mirrored device (RAID 1) over a set of striped devices (RAID 0). This is commonly referred to as RAID 0+1 or RAID 0/1. Data stored using this form of RAID is able to survive a single RAID 0 data set failure without data loss. |
RAID1 | A placement policy where each logical block of data is stored on more than one independent storage device. This is commonly referred to as mirroring. Data stored using this form of RAID is able to survive a single storage device failure without data loss. |
RAID10 | A placement policy that creates a striped device (RAID 0) over a set of mirrored devices (RAID 1). This is commonly referred to as RAID 1/0. Data stored using this form of RAID is able to survive storage device failures in each RAID 1 set without data loss. |
RAID10E | A placement policy that uses a RAID 0 stripe set over two or more RAID 10 sets. This is commonly referred to as Enhanced RAID 10. Data stored using this form of RAID is able to survive a single device failure within each nested RAID 1 set without data loss. |
RAID10Triple | A placement policy that uses a striped device (RAID 0) over a set of triple mirrored devices (RAID 1Triple). This form of RAID can survive up to two failures in each triple mirror set without data loss. |
RAID1E | A placement policy that uses a form of mirroring implemented over a set of independent storage devices where logical blocks are duplicated on a pair of independent storage devices so that data is uniformly distributed across the storage devices. This is commonly referred to as RAID 1 Enhanced. Data stored using this form of RAID is able to survive a single storage device failure without data loss. |
RAID1Triple | A placement policy where each logical block of data is mirrored three times across a set of three independent storage devices. This is commonly referred to as three-way mirroring. This form of RAID can survive two device failures without data loss. |
string | Description |
---|---|
RAID3 | A placement policy using parity-based protection where logical bytes of data are uniformly distributed across a set of independent storage devices and where the parity is stored on a dedicated independent storage device. Data stored using this form of RAID is able to survive a single storage device failure without data loss. If the storage devices use rotating media, they are assumed to be rotationally synchronized, and the data stripe size should be no larger than the exported block size. |
RAID4 | A placement policy using parity-based protection where logical blocks of data are uniformly distributed across a set of independent storage devices and where the parity is stored on a dedicated independent storage device. Data stored using this form of RAID is able to survive a single storage device failure without data loss. |
RAID5 | A placement policy using parity-based protection for storing stripes of ‘n’ logical blocks of data and one logical block of parity across a set of ‘n+1’ independent storage devices where the parity and data blocks are interleaved across the storage devices. Data stored using this form of RAID is able to survive a single storage device failure without data loss. |
RAID50 | A placement policy that uses a RAID 0 stripe set over two or more RAID 5 sets of independent storage devices. Data stored using this form of RAID is able to survive a single storage device failure within each RAID 5 set without data loss. |
RAID6 | A placement policy using parity-based protection for storing stripes of ‘n’ logical blocks of data and two logical blocks of independent parity across a set of ‘n+2’ independent storage devices where the parity and data blocks are interleaved across the storage devices. Data stored using this form of RAID is able to survive any two independent storage device failures without data loss. |
RAID60 | A placement policy that uses a RAID 0 stripe set over two or more RAID 6 sets of independent storage devices. Data stored using this form of RAID is able to survive two device failures within each RAID 6 set without data loss. |
RAID6TP | A placement policy that uses parity-based protection for storing stripes of ‘n’ logical blocks of data and three logical blocks of independent parity across a set of ‘n+3’ independent storage devices where the parity and data blocks are interleaved across the storage devices. This is commonly referred to as Triple Parity RAID. Data stored using this form of RAID is able to survive any three independent storage device failures without data loss. |
This property shall contain a boolean indicator of the read cache policy for the Volume.
The values defined for the ReadCachePolicy ENUM are summarized in Table 102.
string | Description |
---|---|
AdaptiveReadAhead | A caching technique in which the controller dynamically determines whether to pre-fetch data anticipating future read requests, based on previous cache hit ratio. |
Off | The read cache is disabled. |
ReadAhead | A caching technique in which the controller pre-fetches data anticipating future read requests. |
This parameter shall contain the type of replica relationship to be created (e.g., Clone, Mirror, Snap).
The values defined for the ReplicaType ENUM are summarized in Table 103.
string | Description |
---|---|
Clone | This enumeration literal shall indicate that replication shall create a point in time, full copy the source. |
Mirror | This enumeration literal shall indicate that replication shall create and maintain a copy of the source. |
Snapshot | This enumeration literal shall indicate that replication shall create a point in time, virtual copy of the source. |
TokenizedClone | This enumeration literal shall indicate that replication shall create a token based clone. |
This parameter shall specify the replica update mode.
The values defined for the ReplicaUpdateMode ENUM are summarized in Table 104.
string | Description |
---|---|
Active | This enumeration literal shall indicate Active-Active (i.e. bidirectional) synchronous updates. |
Adaptive | This enumeration literal shall indicate that an implementation may switch between synchronous and asynchronous modes. |
Asynchronous | This enumeration literal shall indicate Asynchronous updates. |
Synchronous | This enumeration literal shall indicate Synchronous updates. |
This property shall contain the type of the associated Volume.
The values defined for the VolumeType ENUM are summarized in Table 105.
string | Description |
---|---|
Mirrored | The volume is a mirrored device. |
NonRedundant | The volume is a non-redundant storage device. |
RawDevice | The volume is a raw physical device without any RAID or other virtualization applied. |
SpannedMirrors | The volume is a spanned set of mirrored devices. |
SpannedStripesWithParity | The volume is a spanned set of devices which uses parity to retain redundant information. |
StripedWithParity | The volume is a device which uses parity to retain redundant information. |
This property shall contain the volume usage type for the Volume.
The values defined for the VolumeUsage ENUM are summarized in Table 106.
string | Description |
---|---|
CacheOnly | The volume shall be allocated for use as a non-consumable cache only volume. |
Data | The volume shall be allocated for use as a consumable data volume. |
ReplicationReserve | The volume shall be allocated for use as a non-consumable reserved volume for replication use. |
SystemData | The volume shall be allocated for use as a consumable data volume reserved for system use. |
SystemReserve | The volume shall be allocated for use as a non-consumable system reserved volume. |
This property shall contain a boolean indicator of the write cache policy for the Volume.
The values defined for the WriteCachePolicy ENUM are summarized in Table 107.
string | Description |
---|---|
Off (v1.4.1+) | Indicates that the write cache shall be disabled. |
ProtectedWriteBack | A caching technique in which the completion of a write request is signaled as soon as the data is in cache, and actual writing to non-volatile media is guaranteed to occur at a later time. |
UnprotectedWriteBack | A caching technique in which the completion of a write request is signaled as soon as the data is in cache; actual writing to non-volatile media is not guaranteed to occur at a later time. |
WriteThrough | A caching technique in which the completion of a write request is not signaled until data is safely stored on non-volatile media. |
This property shall contain the WriteCacheState policy setting for the Volume.
The values defined for the WriteCacheState ENUM are summarized in Table 108.
string | Description |
---|---|
Degraded | Indicates an issue with the cache state in which the cache space is diminished or disabled due to a failure or an outside influence such as a discharged battery. |
Protected | Indicates that the cache state type in use generally protects write requests on non-volatile media. |
Unprotected | Indicates that the cache state type in use generally does not protect write requests on non-volatile media. |
This property specifies the policy that is enabled to address the write hole issue on the RAID volume. If no policy is enabled at the moment, this property shall be set to ‘Off’.
The values defined for the WriteHoleProtectionPolicy ENUM are summarized in Table 109.
string | Description |
---|---|
DistributedLog | The policy that distributes additional log (e.q. cheksum of the parity) among the volume’s capacity sources to address write hole issue. Additional data is used to detect data corruption on the volume. |
Journaling | The policy that uses separate block device for write-ahead logging to adddress write hole issue. All write operations on the RAID volume are first logged on dedicated journaling device that is not part of the volume. |
Oem | The policy that is Oem specific. The mechanism details are unknown unless provided separatly by the Oem. |
Off | The support for addressing the write hole issue is disabled. The volume is not performing any additional activities to close the RAID write hole. |
/redfish/v1/CompositionService/ResourceBlocks/{ResourceBlockId}/Storage/{StorageId}/Volumes /redfish/v1/CompositionService/ResourceBlocks/{ResourceBlockId}/Systems/{ComputerSystemId}/Storage/{StorageId}/Volumes /redfish/v1/ResourceBlocks/{ResourceBlockId}/Storage/{StorageId}/Volumes /redfish/v1/ResourceBlocks/{ResourceBlockId}/Systems/{ComputerSystemId}/Storage/{StorageId}/Volumes /redfish/v1/StorageServices/{StorageServiceId}/ConsistencyGroups/{ConsistencyGroupId}/Volumes /redfish/v1/StorageServices/{StorageServiceId}/FileSystems/{FileSystemId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes /redfish/v1/StorageServices/{StorageServiceId}/StoragePools/{StoragePoolId}/AllocatedVolumes /redfish/v1/StorageServices/{StorageServiceId}/StoragePools/{StoragePoolId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes /redfish/v1/StorageServices/{StorageServiceId}/Volumes /redfish/v1/StorageServices/{StorageServiceId}/Volumes/{VolumeId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/ConsistencyGroups/{ConsistencyGroupId}/Volumes /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/FileSystems/{FileSystemId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/StoragePools/{StoragePoolId}/AllocatedVolumes /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/StoragePools/{StoragePoolId}/CapacitySources/{CapacitySourceId}/ProvidingVolumes /redfish/v1/Systems/{ComputerSystemId}/Storage/{StorageId}/Volumes
The properties defined for the VolumeCollection object are summarized in Table 110.
Property | Type | Notes |
---|---|---|
@odata.etag | string read-only |
The value of this property shall be a string that is defined by the ETag HTTP header definition in RFC7232. |
Description | string read-only (null) |
This object represents the description of this resource. The resource values shall comply with the Redfish Specification-described requirements. |
Members [ { | array | The value of each member entry shall reference a Volume resource. |
@odata.id | string read-only |
Link to a Volume resource. See the Links section and the Volume schema for details. |
Property | Type | Notes |
---|---|---|
} ] | ||
Members@odata.nextLink | string read-only |
The value of this property shall be a URI to a resource, with the same @odata.type, containing the next set of partial members. |
Name | string read-only |
This object represents the name of this resource or array member. The resource values shall comply with the Redfish Specification-described requirements. This string value shall be of the ‘Name’ reserved word format. |
Oem {} | object | This property shall contain the OEM extensions. All values for properties contained in this object shall conform to the Redfish Specification-described requirements. See the Resource schema for details on this property. |
The following referenced documents provide important support for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.
The informational references are summarized in Table A.1.
Tag | Title (Version) | Author | URL |
---|---|---|---|
Profiles | Swordfish Profile Bundle Working Draft | SNIA | https://www.snia.org/forums/smi/swordfish |
TLS | TLS Specification for Storage Systems | SNIA | https://www.snia.org/tech_activities/standards/curr_standards/tls |
